Masimo 3639 EMMA Capnograph, Compact Real-Time Capnography Monitor with 15-Second Startup and Calibration-Free Operation
The Masimo EMMA® Capnograph is a small, portable capnograph designed for real-time capnography in a wide range of clinical environments. It delivers EtCO2 and respiratory rate (RR) measurements alongside a real-time EtCO2 waveform within 15 seconds of startup, making it ideal for rapid deployment in time-sensitive situations.
Its lightweight, handheld form factor supports short-term EtCO2 monitoring across adult, pediatric, and neonatal patient populations. The EMMA is engineered for flexible integration into physician offices, emergency medicine, operating rooms, ICUs, and long-term acute care settings.
Durability and Maintenance
The EMMA features a robust design built to withstand demanding environmental conditions without compromising measurement reliability. Routine calibration is not required, significantly reducing maintenance burden and total cost of ownership for clinical teams.
Features
- Real-time EtCO2 waveform (capnogram) and RR measurements displayed within 15 seconds of startup

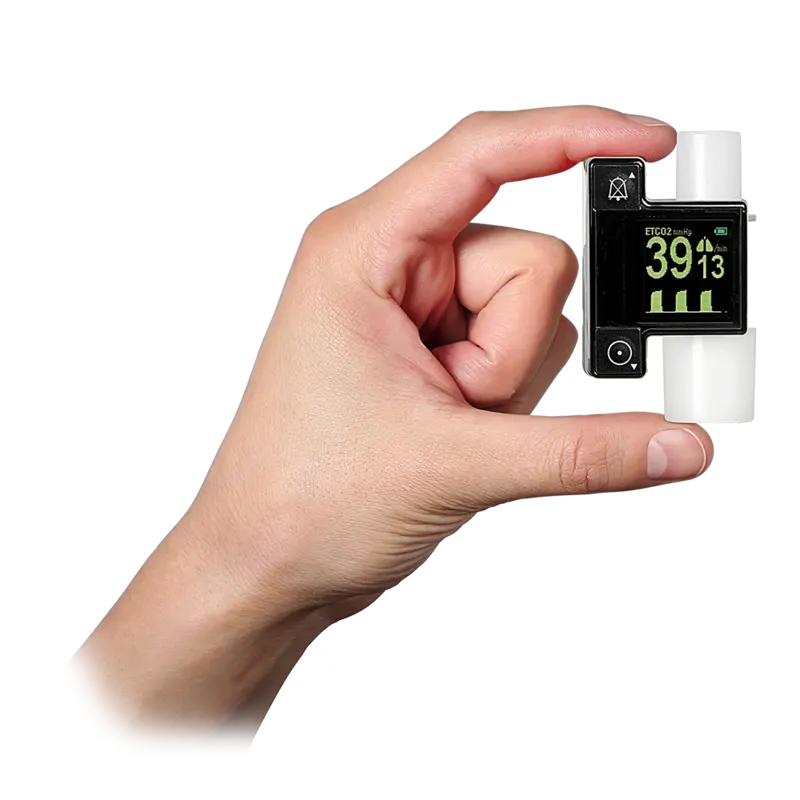

- Compact, lightweight handheld form factor optimized for short-term EtCO2 monitoring
- Supports adult, pediatric, and neonatal patient populations
- Designed for seamless connection to breathing circuits across multiple care settings
- No routine calibration required — simplified maintenance protocol
- Clear, continuous capnogram display of CO2 values
- Single-button operation for rapid setup and user-friendly programming
- Audible and visual alarm system: No Adapter, Adapter Blocked, Apnea, Low Battery, and adjustable high/low EtCO2 threshold alarms
- Available in mmHg (PN 3639) and kPa (PN 3678) unit configurations
Product Specifications
| Measured Parameters | EtCO2, Respiratory Rate (RR) |
| Waveform | Real-time EtCO2 waveform |
| Startup Time | Within 15 seconds |
| Patient Populations | Adult, Pediatric, Neonatal |
| Units (mmHg Version) | mmHg — PN 3639 |
| Units (kPa Version) | kPa — PN 3678 |
| Alarms | No Adapter, Adapter Blocked, Apnea, Low Battery, adjustable high/low EtCO2 alarm |
| Calibration | No routine calibration required |
| Clinical Settings | Physician office, emergency medicine, operating room, ICU, long-term acute care |

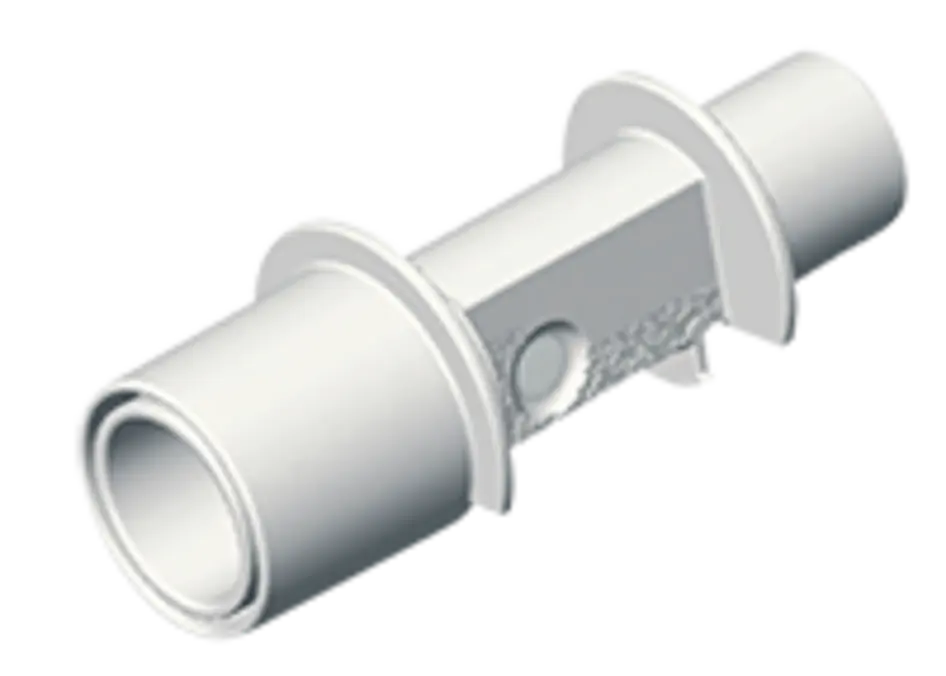

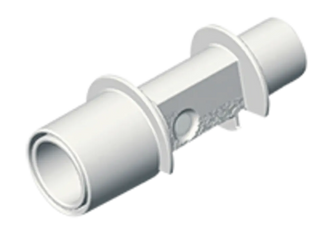

| Airway Adapter (Adult/Pediatric) | PN 17448, box of 25 |

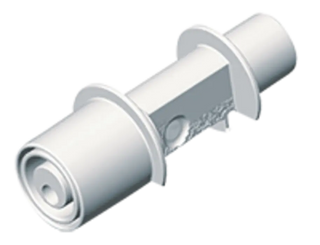

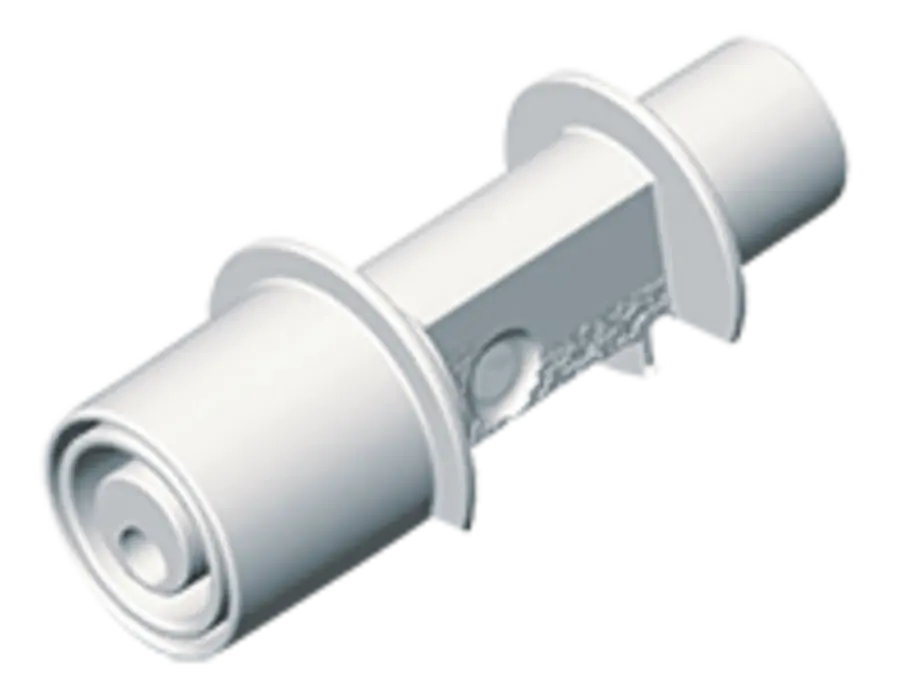

| Airway Adapter (Neonatal) | PN 17449, box of 10 |

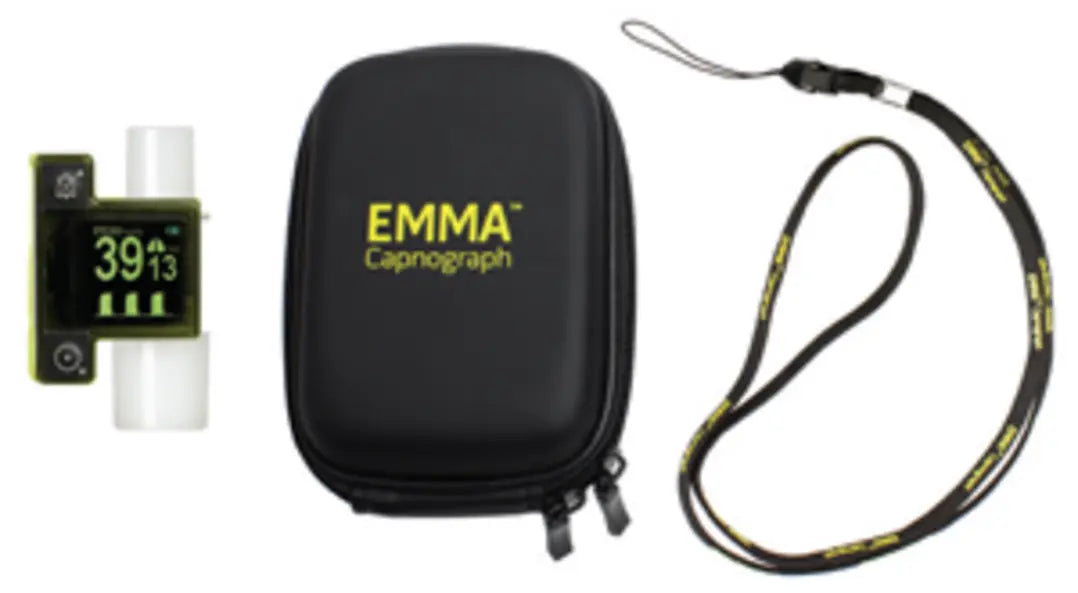

| Kit Contents | EMMA Capnometer, carrying case, neck strap |
Warranty
- Masimo warrants that; (i) it will perform the services using qualified personnel in accordance with industry standards and (ii) any repair or replacement provided under the services will be free from material defects in materials and workmanship.
- The duration of this warranty shall be 90 days from the date of performance, repair, or replacement.
- Masimo’s obligation if OOW Device is found by Masimo to be defective during the warranty period shall be limited to repair or replacement.
- This warranty does not apply or extend to any OOW Device (a) damaged, neglected, misused or improperly operated, (b) modified, disassembled, or reassembled, (c) used with supplies, devices or electrical work external to the OOW Device, (d) where the software has been damaged, modified by anyone other than Masimo or without the express written authorization of Masimo, or (e) used contrary to Masimo’s instructions.
- MASIMO MAKES NO OTHER WARRANTIES AND DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED.
