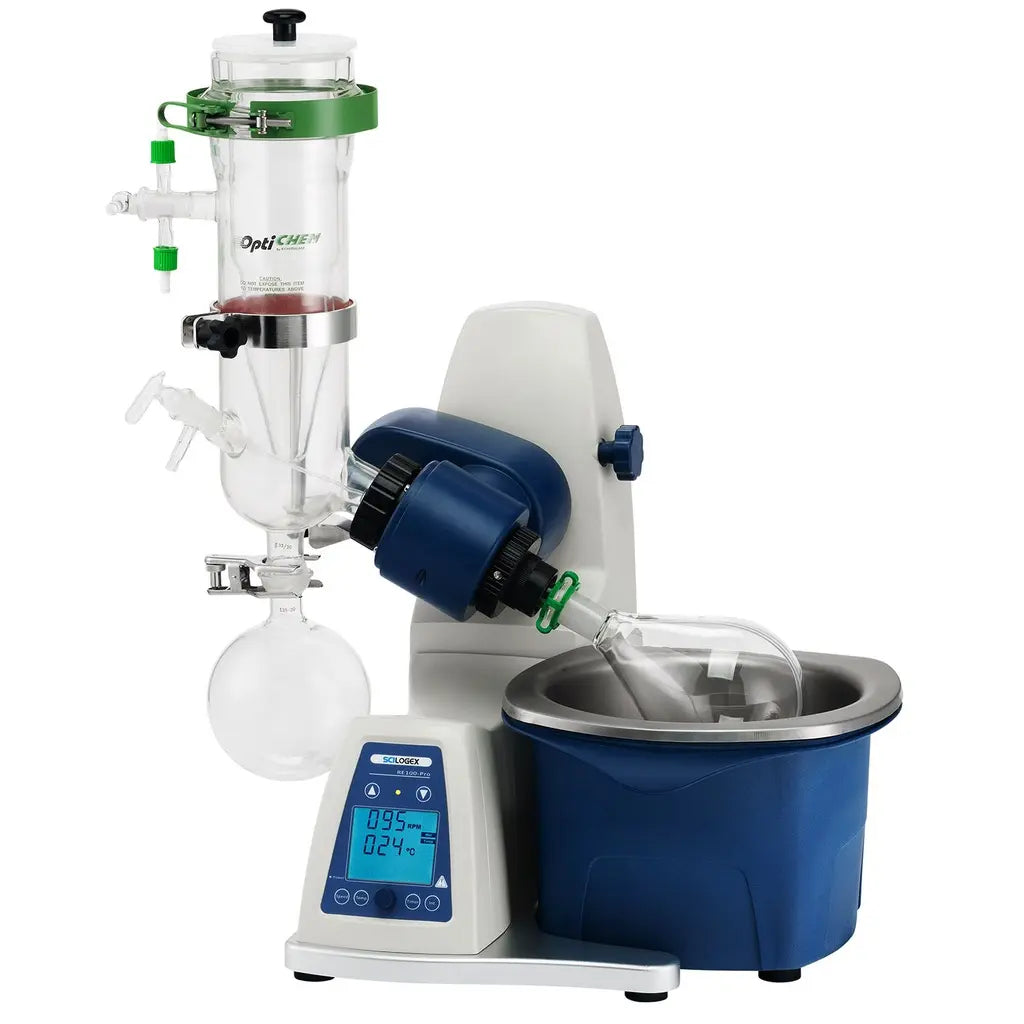

SCILOGEX 611132069999 SCI100-Pro LED Digital Rotary Evaporator with 5L Bath, Motorized Lift & Vertical Dry-Ice Condenser for Solvent Evaporation
SCILOGEX’s 611132069999 SCI100-Pro LED Digital Rotary Evaporator is a precision-engineered lab instrument for gentle, efficient solvent removal in chemical, pharma, and research applications, featuring a 5L heating bath (room temp. to 180°C ±1°C accuracy), vertical dry-ice condenser for superior cooling, motorized lift with safety auto-release during power failure, and 1000ml evaporating/receiving flasks (NS 24/40 & KS 35/20). With large LCD display for rotation speed (20-280 rpm) and temperature, timer (1-99 min), and interval clockwise/anti-clockwise operation for drying, it ensures optimal distillation. Overheating protection, USB for PC control/data logging, and chemical-resistant PTFE seals provide leak-free performance. Ideal for evaporation, concentration, and purification; made in China with a 2-year warranty for reliable, high-vacuum-compatible lab use.
Features:
- Easy-to-read large digital LCD display shows temperature, rotation speed, and timer for optimal distillation control
- Large 5L heating bath with temperature range of ambient to 180°C for precise, uniform evaporation
- Motorized lift with safety automatic release of evaporating flask to top position in case of power failure
- Speed range from 20 to 280 rpm with reversible motor for clockwise/anti-clockwise interval operation in drying processes
- Timer function (1-99 min) for precise control of processing time
- Chemical-resistant PTFE seals and patented pressure springs for excellent, leak-free sealing
- PC control and documentation of all parameters via USB for data logging and remote operation
- Precise temperature control and adjustable safety circuit for safe, consistent performance
- Quick-release connectors for easy flask removal and ejection mechanism for effortless handling
- cTUVus approved for UL/CSA safety; IP20 protection class
Specifications:
| Specification | Details |
|---|---|
| Model | 611132069999 SCI100-Pro Rotary Evaporator |
| Evaporating Flask | 1000ml NS 24/40 |
| Receiving Flask | 1000ml KS 35/20 |
| Heating Bath | 5L (Ambient - 180°C, ±1°C Accuracy) |
| Condenser Type | Vertical Dry-Ice |
| Speed Range | 20-280 rpm |
| Display | LCD (Speed, Temperature, Time) |
| Lift Mechanism | Motorized with Safety Auto-Release |
| Operation Modes | Continuous/Interval (Clockwise/Anti-Clockwise) |
| Timer Range | 1-99 min |
| Safety Features | Overheating Protection |
| Remote Control | USB (PC Control/Data Logging) |
| Seals | PTFE with Patented Pressure Springs |
| Dimensions (D x W x H) | 18.3" x 18.4" x 23" (465 x 467 x 583 mm) |
| Weight | 15 kg |
| Voltage/Frequency | 110V, 60 Hz, US Plug |
| Power Consumption | 1400W |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-40-0000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI100-Pro LED Digital Rotary Evaporator Unit | 1 |
| 5L Heating Bath | 1 |
| Vertical Dry-Ice Condenser | 1 |
| 1000ml Evaporating Flask (NS 24/40) | 1 |
| 1000ml Receiving Flask (KS 35/20) | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
