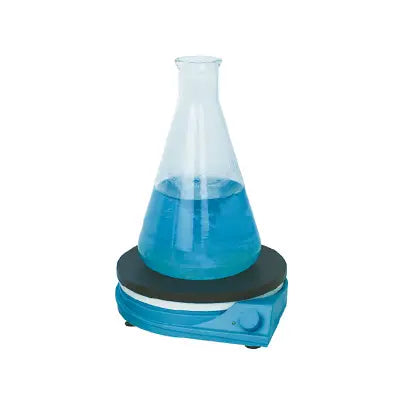

Jeio Tech AAH330315BU MS-22BB Magnetic Stirrer(Scale, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
by
Jeio Tech
10% off
10% off
10% off
10% off
10% off
10% off
Jeio Tech AAH330315BU MS-22BB Magnetic Stirrer(Scale, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
Jeio Tech AAH330315BU MS-22BB Magnetic Stirrer(Scale, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
Features
Performance & Convenience
- Ergonomic designed, lightweight, easy to operate, and low profile.
- Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
- Spark-less, silent and durable BLDC motor.
- Wide top plate.
- Two non-slip silicone plate covers (white & black) provided for MS-B
- Non-slip strength rubber feet.
- Strong magnetic coupling to ensure constant stirring.
Safety
- Unit is safely designed to protect internal components from accidental spills.
- Built-in thermal shutdown and current limit protection.
Specifications
| Model | MS-12B | MS-17B | MS-22B | ||
|---|---|---|---|---|---|
| Technical data | Speed control | Electronic speed control | |||
| Stirring capacity (Liter, H2O) | 2 | 4 | 5 | ||
| Speed range (rpm) | 150 to 2,500 | ||||
| Speed display | None | ||||
| Motor rating input / output (W) | 2.9 / 1.6 | ||||
| Magnetic bar, Max. (Ø×L) (mm / inch) | 8×30 / 0.31×1.18 | 8×40 / 0.31×1.57 | 10×50 / 0.39×1.97 | ||
| Load, max (kg / lbs) | 15 / 33.07 | 20 / 44.09 | 25 / 55.12 | ||
| Top plate | Material | Polypropylene with non-slip silicon cover | |||
| Dimension (Ø, mm / inch) | 120 / 4.72 | 170 / 6.69 | 220 / 8.66 | ||
| General data | Body shape | Round type | Round type | Round type | |
| Body material | Polypropylene | ||||
| Dimension (W×D×H) (mm / inch) | 130×133×65 / 5.1×5.2×2.56 |
180×186×65 / 7.1×7.3×2.6 |
230×235×65 / 9.1×9.3×2.6 |
||
| Net weight (kg / lbs) | 0.6 / 1.32 | 0.9 / 1.98 | 1.1 / 2.43 | ||
| Electrical requirements | AC 100 ~ 240V, 50 / 60Hz with power adapter | ||||
| Power consumption (W) | 5 | 6 | |||
| Protection class (DIN EN 60529) | IP42 | ||||
| Cat. No. | KR plug | AAH330115BK | AAH330215BK | AAH330315BK | |
| US plug | AAH330115BU | AAH330215BU | AAH330315BU | ||
