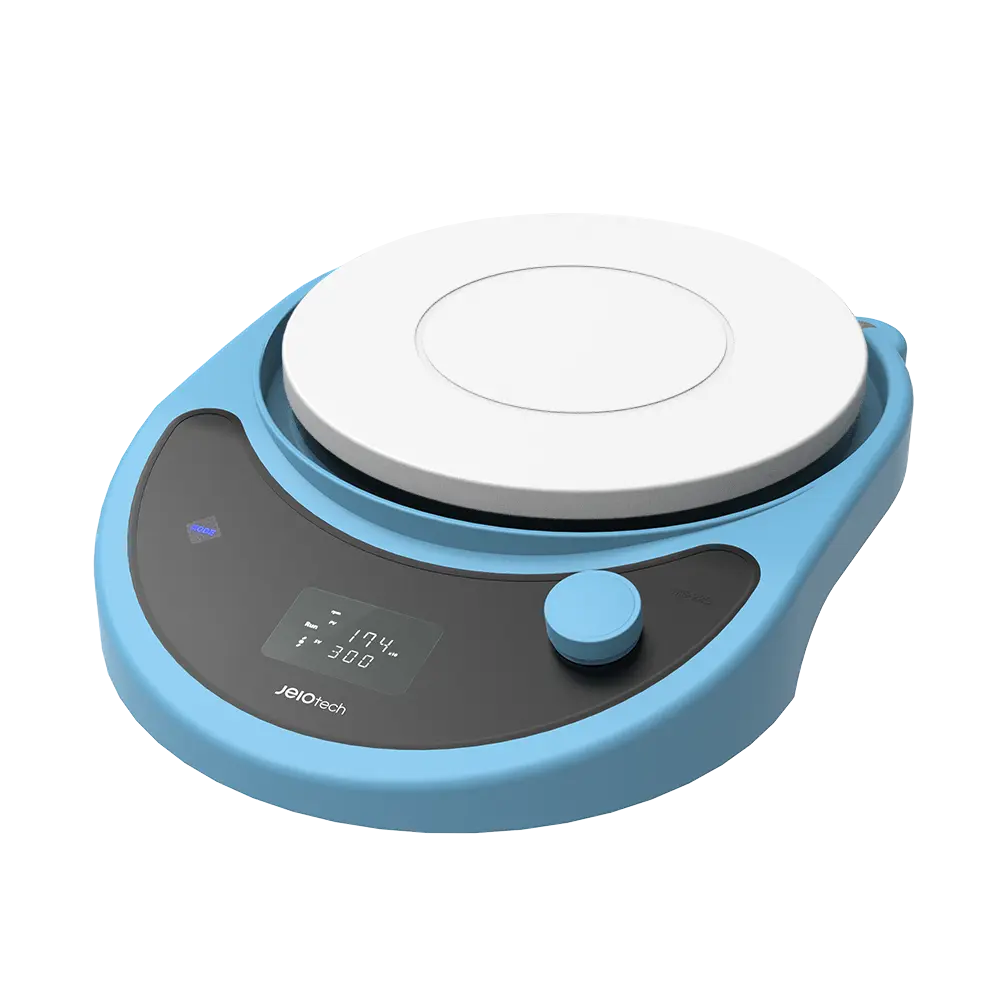

Jeio Tech AAH331315BU MS-22GB Magnetic Stirrer(Digital, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
by
Jeio Tech
10% off
10% off
10% off
10% off
Jeio Tech AAH331315BU MS-22GB Magnetic Stirrer(Digital, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
Jeio Tech AAH331315BU MS-22GB Magnetic Stirrer(Digital, ф220mm, Percian Blue), US Plug 100-240V, 50/60Hz
Features
Performance & Convenience
- Ergonomic designed, lightweight, easy to operate, and low profile.
- Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
- Spark-less, silent and durable BLDC motor.
- Wide top plate.
- Two non-slip silicone plate covers (white & black) provided.
- Non-slip strength rubber feet.
- Strong magnetic coupling to ensure constant stirring.
- Digital PID feedback control for reproducible stirring results.
- Convenient program control.
- Gradual start-up to protect users against splashing of samples.
- Bright and vivid VFD and responsive touch buttons.
- Easy-settable digital timer (1 min. to 99hr. 59min.)
- M10 threaded hole to hold a support rod.
Safety
- Unit is safely designed to protect internal components from accidental spills.
- Built-in thermal shutdown and current limit protection.
Specifications

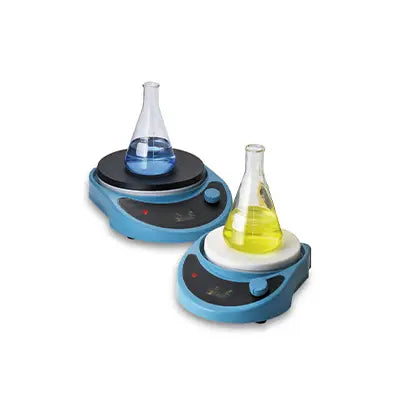

| Model | MS-17G | MS-22G | ||
|---|---|---|---|---|
| Technical data | Speed control | Feedback control with PID | ||
| Stirring capacity (Liter, H2O) | 4 | 5 | ||
| Speed range (rpm) | 30 to 2,000 | |||
| Speed display | VFD | |||
| Motor rating input / output (W) | 2.9 / 1.6 | |||
| Magnetic bar, Max. (Ø×L) (mm / inch) | 8×40 / 0.31×1.57 | 10×50 / 0.39×1.97 | ||
| Load, Max (kg / lbs) | 20 / 44.09 | 25 / 55.12 | ||
| Top plate | Material | Polypropylene with non-slip silicon cover | ||
| Dimension (Ø, mm / inch) | 170 / 6.69 | 220 / 8.66 | ||
| General data | Body material | Polypropylene | ||
| Dimension (W×D×H) (mm / inch) | 210×280×72 / 8.3×11×2.8 | 260×355×72 / 10.2×14×2.8 | ||
| Net weight (kg / lbs) | 1.35 / 2.98 | 1.75 / 3.86 | ||
| Electrical requirements | AC 100 ~ 240V, 50 / 60Hz | |||
| Power consumption (W) | 6 | |||
| Protection class (DIN EN 60529) | IP42 | |||
| Cat. No. | KR plug | AAH331215BK | AAH331315BK | |
| US plug | AAH331215BU | AAH331315BU | ||
