Jeio Tech AAHE1303U CLG3-70 General Purpose Laboratory Refrigerator (Glass, Single Door) 120V, 60Hz
Jeio Tech AAHE1303U CLG3-70 General Purpose Laboratory Refrigerator (Glass, Single Door) 120V, 60Hz

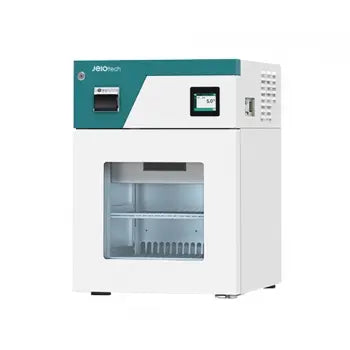

Jeio Tech CLG3-70 General Purpose Laboratory Refrigerator (Glass, Single Door)
Features
Structural functional features
- Stable temperature control with excellent insulation and sealing structure.
- Clean construction with no condensation on outer walls.
- Interior has excellent corrosion resistance as made of stainless steel.
- Magnetic packing door with smooth opening and closing.
- Casters for easy movement / installation. (except for 150 model)
- Space-efficient configuration with double stackable. (for 150 model)
- Auto defrost function eliminates the need for separate defrosting.
Use Convenience Features
- Stable control with JEIO TECH's exclusive controller.
- Easy to use with Clear VFD and Touch Key.
- Simultaneously displays set temperature and actual temperature.
- Calibration function minimizes temperature difference.
- Height-adjustable and strong shelf provided as standard.
- Built-in fluorescent lamps. (except for 150 model)

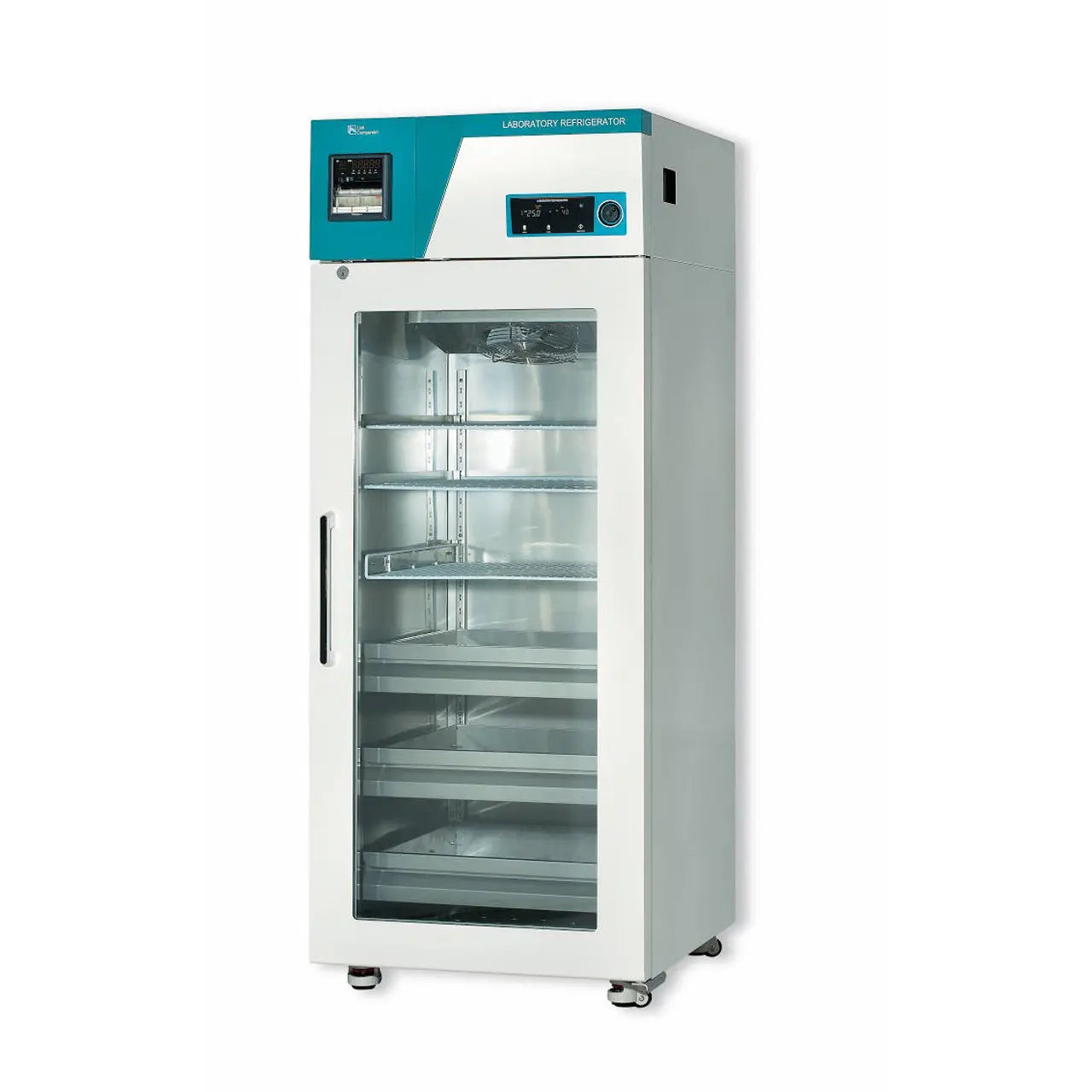

- Glass door model for easy storage status checking.
- Convenient connecting external devices through Ø50 mm cable port. (optional) (except for 70,150 model)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Outstanding Safety

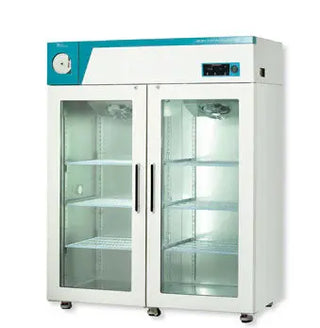

- The 850 and 1400 model are equipped with two refrigeration systems to maintain temperature even in the event of a single refrigeration system failure.
- Temperature deviation notification. (Hi & Low Temperature)
- Malfunction prevented by controller lock function.
- Door lock with key as standard.
- Enhanced security with digital door lock. (CLG3)
Satisfies the requirements for safe cold storage of pharmaceuticals
- Temperature fluctuation and variation meets the requirements of ICH Guideline Q1A. (R2)
- Stable temperature control for long-term operation.
Accessories provided for convenient use
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.
(when purchased LC GreenBox, CLG3-70 Only) - Voice alarm system transmits voice messages to designated phone if there is an abnormality in operation (optional).

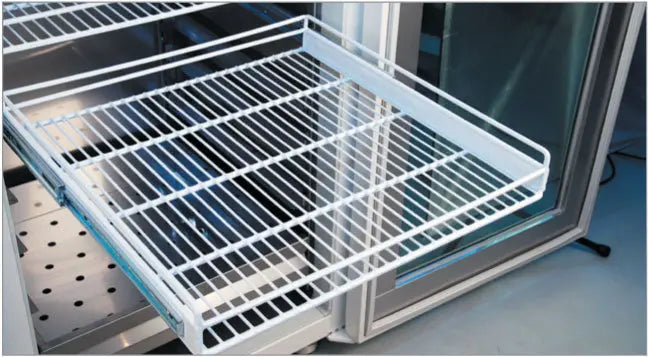

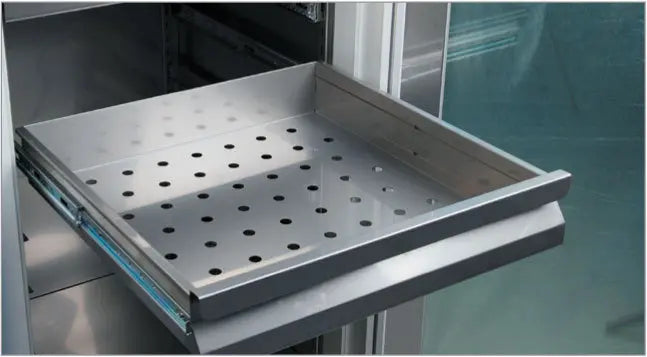

- Convenient use with drawer type shelf (optional).

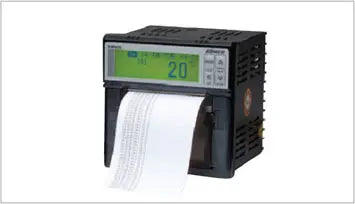

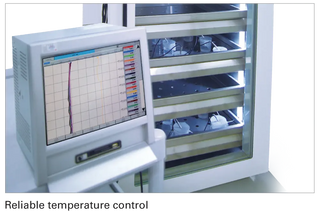

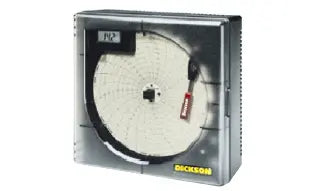

- Selection of various temperature recorders. (optional) (Dot, Chart, Thermal Line)
Specifications
| Model | CLG3-70 |
CLG-150 CLG-150S |
CLG-300 CLG-300S |
CLG-650 CLG-650S |
CLG-850 CLG-850S |
CLG-1400 CLG-1400S |
|
|---|---|---|---|---|---|---|---|
| Temperature range (℃ / ℉) | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | |
| Chamber volume (L / cu ft) | 73 / 2.6 | 156 / 5.5 | 303 / 10.7 | 603 / 21.3 | 805 / 28.4 | 1327 / 46.9 | |
| Dimension | |||||||
| Interior (W x D x H, mm / inch) | 418 x 440 x 400 / 16.5 x 17.3 x 15.7 |
550×580×490 / 21.7×22.8×19.3 | 550x550x1000 / 21.7×21.7×39.4 | 650x640x1450 / 25.6×25.2×57.1 | 750x740x1450 / 29.5×29.1×57.1 | 1430x640x1450 / 56.3×25.2×57.1 | |
| Exterior (W x D x H, mm / inch) | 522 x 600 x 725 / 20.6 x 23.6 x 28.5 |
683×791×870 / 26.9×31.1×34.4 | 670x770x1515 / 26.4×30.3×59.6 | 770x865x1965 / 30.3×34.1×77.4 | 870x965x1965 / 34.3×37.9×77.4 | 1550x865x1965 / 61×34.1×77.4 | |
| Net weight (kg / Ibs) | 67 / 147.7 | 100 / 220.5 | 130 / 286.6 | 210 / 463 | 260 / 573.2 | 350 / 771.6 | |
| Shelf | |||||||
| Quantity of wire shelf (standard / max.) | 2 / 3 | 2 / 6 | 3 / 11 | 3 / 17 | 3 / 17 | 6 / 34 | |
| Quantity of wire shelf (slide) (max.) | - | 4 | 7 | 11 | 11 | 22 | |
|
Quantity of drawer shelf (slide) (max.) |
2 | 3 | 5 | 8 | 8 | 16 | |
|
Load per shelf (kg / lbs) |
30 / 66.1 |
26 / 57.3 |
30 / 66.1 |
||||
|
Fluorescent lamp |
4.2W, 1ea |
- | 18W, 1ea |
18W, 1ea |
32W, 1ea | 32W, 1ea | |
| Electrical requirements (230V, 60Hz) | 1.1A | 2A | 2.3 A | 4A | 5A | 6A | |
| Cat. No. | Solid door | - | AAHE1001K | AAHE1011K | AAHE1021K | AAHE1031K | AAHE1041K |
| Glass door | AAHE1301K | AAHE1101K | AAHE1111K | AAHE1121K | AAHE1131K | AAHE1141K | |
| Electrical requirements (230V, 50Hz) | 1.1A | 2A | 2.3 A | 4A | 5A | 6A | |
| Cat. No. | Solid door | - | AAHE1002K | AAHE1012K | AAHE1022K | AAHE1032K | AAHE1042K |
| Glass door | AAHE1302K | AAHE1102K | AAHE1112K | AAHE1122K | AAHE1132K | AAHE1142K | |
| Electrical requirements (120V, 60Hz) | 2.9A | 4A | 4.5 A | 6.5 A | 9A | 13A | |
| Cat. No. | Solid door | - | AAHE1003U | AAHE1013U | AAHE1023U | AAHE1033U | AAHE1043U |
| Glass door | AAHE1303U | AAHE1103U | AAHE1113U | AAHE1123U | AAHE1133U | AAHE1143U | |
