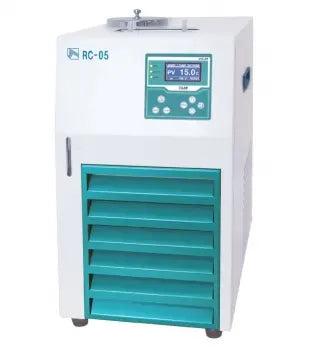

Jeio Tech ACH651012K RC-05 Recirculating Cooler 230V, 50/60Hz
Jeio Tech ACH651012K RC-05 Recirculating Cooler
Features
Performance
- Temperature range from -20°Cto 30°C.
- Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.
Convenience
- Clear and easy-to-use LCD display. (resolution 0.1°C)
- Bright LED water level indicator can be seen from a distance.
- Wide filling inlet for easy and safe pouring of solution into the unit.
- Double service valve prevents refrigerant leakage for easy maintenance.
- Removable gridded vent for easy maintenance of condenser.
- Compact design for space saving. The unit is suitable for stable temperature cooling compact devices such as rotary evaporators in laboratory.
- Variety of accessories are available to meet application demands.
Safety
- Self-diagnostic function identifying errors.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker. - Eco-friendly R-507 refrigerant use for environmental protection.
- Splash-proof keypad.
Specifications
| Model | RC-05 |
|---|---|
|
Interior dimension |
|
|
Max. filling volume(L / cu ft) |
5 / 0.18 |
|
Refrigerator capacity(HP) |
1 / 3 |
|
For tubing dia.(mm / inch) |
9.5 / 3/8 |
|
Filling inlet(Ø, mm / inch) |
37 / 1.46 |
|
Exterior dimension |
|
|
Width (mm / inch) |
300 / 11.8 |
|
Depth (with drain valve), (mm / inch) |
550 / 21.7 |
|
Height (with lid), (mm / inch) |
530 / 20.9 |
|
Net weight (kg / lbs) |
45 / 99.2 |
|
Temperature data |
|
|
Working temperature range (℃ / ℉) |
-10 to 30 / 14 to 86 |
|
Temperature stability at 15℃ (bath fluid : water) (±℃ / ℉) |
1 / 1.8 |
|
Cooling capacity, Max (bath fluid : ethanol) |
|
|
at 20℃ (W) |
580 |
|
at 10℃ (W) |
450 |
|
at 0℃ (W) |
350 |
|
at -10℃ (W) |
270 |
|
at -20℃ (W) |
110 |
|
Pump data |
|
|
Max. flow rate(L / min, gal / min) |
26 / 6.87 |
|
Max. pressure (bar / psi) |
0.7 / 10.15 |
|
Electrical data & Ordering information |
|
|
230V, 50/60 Hz, A |
4 |
|
Cat. No. |
ACH651015K |
