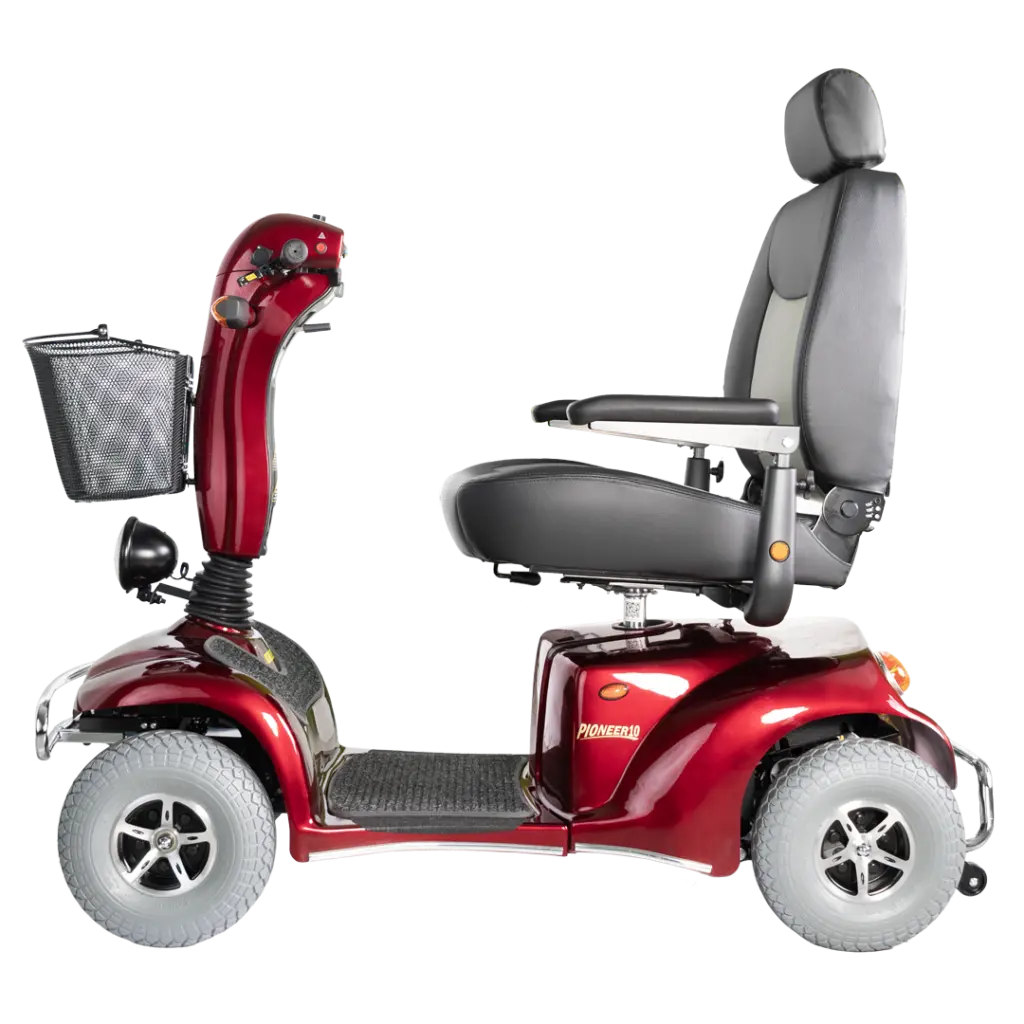

Merits S341-1ARMUB PIONEER 10 HEAVY-DUTY,4-WHEEL, 22"x20"x22", CAPTAIN SEAT, RED
Merits S341-1ARMUB PIONEER 10 HEAVY-DUTY,4-WHEEL, 22"x20"x22", CAPTAIN SEAT, RED
Merits S341-1ARMUB PIONEER 10 HEAVY-DUTY,4-WHEEL, 22"x20"x22", CAPTAIN SEAT, RED, 500 LBS CAP, 12" FOAM-FILLED TIRES, INCLUDES GROUP 24 BATTS
Features :

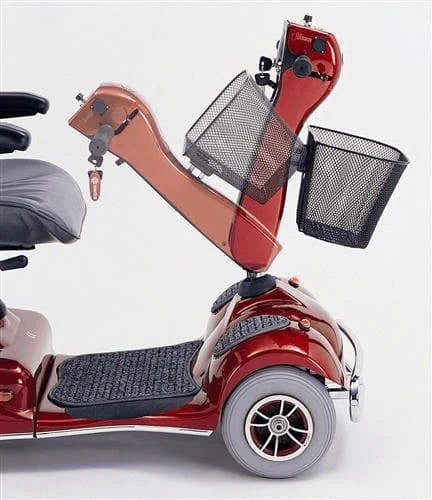

• Hydraulic, adjustable tiller
• 22”W x 20”D x 22”H, sliding, captain seat
• Half speed inhibit switch
• Headlight, tail lights, turn signals, and hazard lights
• 4” ground clearance
• Four wheels provide more stability
Product Specifications:
|
Product |
S341 |
|
Weight Capacity |
500 lbs |
|
Drivetrain |
RWD |
|
Maximum Speed |
6 mph |
|
Per-Charge Range |
up to 32 mi. |
|
Battery Size |
(2 required) 75Ah, M24 AGM |
|
Ground Clearance |
4” |
|
Turning Radius |
62” |
|
Overall Length |
59” |
|
Overall Width |
27” |
|
Overall Height |
47” |
|
Suspension |
Yes |
|
Seat-to-Floor Height |
16” - 19” |
|
Seat-to-Deck Height |
25” - 28” |
|
Seat Width |
22” |
|
Seat Depth |
20” |
|
Backrest Height |
22” |
|
Total Weight |
269 lbs. |
|
Weight of Heaviest Pc. |
122 lbs. |
|
Motor |
DC 24V, 400W |
|
Controller |
Dynamic Rhino2 160A |
|
Charger |
6A off-board |
|
Gradient |
12° |
|
Front Wheels |
12.5” fl at-free |
|
Drive Wheels |
12.5” fl at-free |
|
HCPCS Code |
K0899 |
|
Color Options |
Red |
Accessories:
• Oxygen Tank Holder
• Cane & Crutch Holder
• Walker Holder
• (Lg) Foldable Rear Basket
• (Med) Foldable Rear Basket
• Cover
