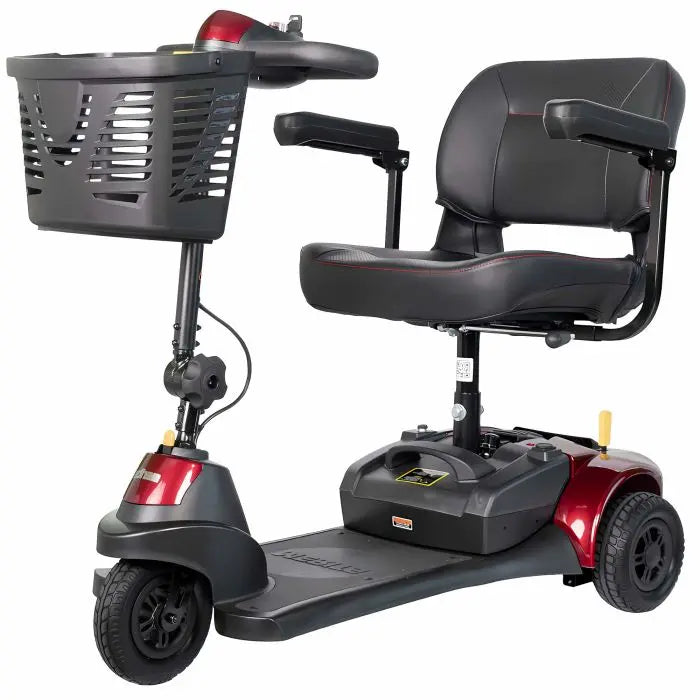

Merits S731RS3-ARB ROADSTER S3 3‐WHEEL, 17"x15", FISH‐ON SEAT, CHERRY RED
Merits S731RS3-ARB ROADSTER S3 3‐WHEEL, 17"x15", FISH‐ON SEAT, CHERRY RED, 300 lbs CAP, 7/8" FOAM‐FILLED TIRES, INCLUDES 2‐12AH BATT
Features :
• Tiller angle adjustable for ergonomic driving position and easy transferring on and off the unit
• Loop tiller with throttle lever to maneuver by palm or finger
• Transport and store easily with auto latching lockup design
• Detachable battery pack with built in charging port
• Easily disassembles into 5 pieces
• Extra charging port under dashboard for easy plug in
• No tools needed for set-up
• Adjustable seat height and armrest width
• Headlight
• Rear anti-tip wheels prevent a tip-over backwards
Product Specifications:
|
Product |
S731RS3 |
|
Weight Capacity |
260 lbs |
|
Drivetrain |
RWD |
|
Maximum Speed |
4 mph |
|
Per-Charge Range |
up to 12 mi. |
|
Battery Size |
(2 required) 12Ah, ES12 AGM |
|
Ground Clearance |
2.2” |
|
Turning Radius |
47” |
|
Overall Length |
40.5” |
|
Overall Width |
25.5” |
|
Overall Height |
36.6” |
|
Seat-to-Floor Height |
19” - 21” |
|
Seat-to-Deck Height |
16” - 18” |
|
Seat Width |
18” |
|
Seat Depth |
18” |
|
Backrest Height |
14.5” |
|
Basket Size |
12.5”W x10”H x 6”D |
|
Weight of Heaviest pc. |
29 lbs. |
|
Total Weight |
103 lbs. |
|
Motor |
DC 24V, 180W |
|
Controller |
PG S-DRIVE 45A |
|
Charger |
1.8A off-board |
|
Gradient |
6° |
|
Front Wheels |
7” |
|
Drive Wheels |
8” |
|
HCPCS Code |
n/a |
|

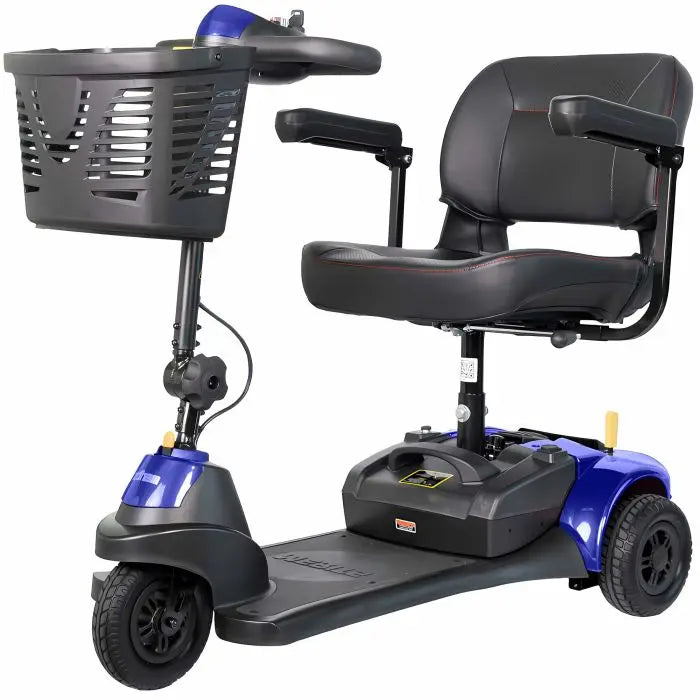

Color Options |
Red/Blue |
Options:
• 40” seat belt
• Multi-accessory receiver adapter
• Oxygen tank holder
• Oxygen tank bag holder
•Crutch and cane holder
• Walker holder
• Medium or Large foldable rear basket
• Cup holder
• Safety flag
• Cover
