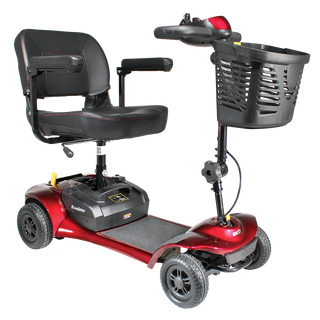

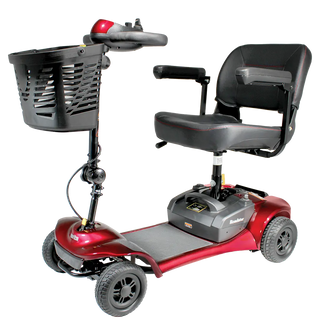

Merits S741A1ARMUB ROADSTER 4 4-WHEEL, 18"x17"x15", FISH-ON SEAT, RED
Merits S741A1ARMUB ROADSTER 4 4-WHEEL, 18"x17"x15", FISH-ON SEAT, RED, 300 LBS CAP, 8" FOAM-FILLED TIRES, INCLUDES 12 Ah BATTS
Features :
• 4-wheel design provides increased stability
• Easily disassembles into 5 pieces for transport and storage.
• 18” wide deluxe stadium seat
• Detachable battery pack
• Tiller angle adjustable for ergonomic driving position and easy transferring on and off the unit
• Loop tiller with throttle lever to maneuver by palm or finger
• Transport and store easily with auto latching lockup design
• Adjustable seat height and armrest width
• No tools needed for set-up
Product Specifications:
|
Product |
# S741A |
|
Weight Capacity |
300 lbs |
|
Drivetrain |
RWD |
|
Maximum Speed |
4 mph |
|
Per-Charge Range |
up to 6 miles |
|
Battery Size |
(2 required) 12Ah, ES12 AGM |
|
Ground Clearance |
2” |
|
Turning Radius |
43.3” |
|
Overall Length |
30” |
|
Overall Width |
21” |
|
Overall Height |
36” |
|
Seat-to-Floor Height |
19” - 21” |
|
Seat-to-Deck Height |
16” - 18” |
|
Seat Width |
18” |
|
Seat Depth |
17” |
|
Backrest Height |
15” |
|
Weight of Heaviest pc. |
36 lbs. |
|
Total Weight |
106 lbs. |
|
Motor |
DC 24V, 100W |
|
Controller |
PG S-DRIVE 45A |
|
Charger |
1.8A off-board |
|
Gradient |
6° |
|
Front Wheels |
8” |
|
Drive Wheels |
8” |
|
HCPCS Code |
K0800 |
|
Color Options |
Red |
Options
• 40” seat belt
• Multi-accessory receiver adapter
• Oxygen tank holder
• Oxygen tank bag holder
•Crutch and cane holder
• Walker holder
• Medium or Large foldable rear basket
• Cup holder
• Safety flag
• Cover
