Vive Health RHB3003 Lymphedema Pump Coretech
Vive Health RHB3003 Lymphedema Pump Coretech
Vive Health RHB3003MW Lymphedema Pump, Coretech, Size Medium Wide
The Coretech RHB3003 Lymphedema Pump is a pneumatic compression therapy device specifically designed to address lymphedema and related vascular conditions. This 510K-cleared medical device utilizes sequential compression technology to promote lymphatic drainage and improve circulation in patients suffering from lymphatic impairment. By delivering precise, graduated pressure patterns, the system helps redirect excess lymphatic fluid from compromised areas to healthy regions where it can be naturally processed by the body, providing patients with effective symptom relief and improved quality of life.
Features:
- Chambers Sleeve Design; Chambers sleeve configuration with 4 air inlets and shared chambers create an optimal segmental air pressure therapy for enhanced lymphatic drainage and superior patient outcomes.
-
Bilateral and Unilateral Treatment
Included air adapter enables flexible treatment configurations - treat one leg, both legs simultaneously, or combine leg and arm therapy to address multiple affected areas in a single session.
- Patient Safety Lock Function
Built-in locking mechanism ensures patient safety and preventing therapy interruption, providing uninterrupted treatment sessions for optimal therapeutic results. - Dual Mode Therapy Options
Specifications:
- What’s Included:
-

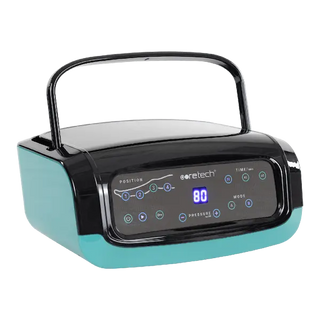

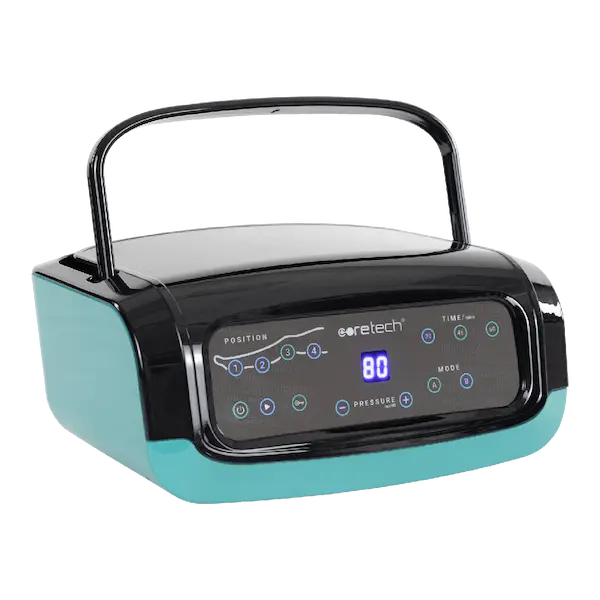

- 1 RHB3003 Pump.

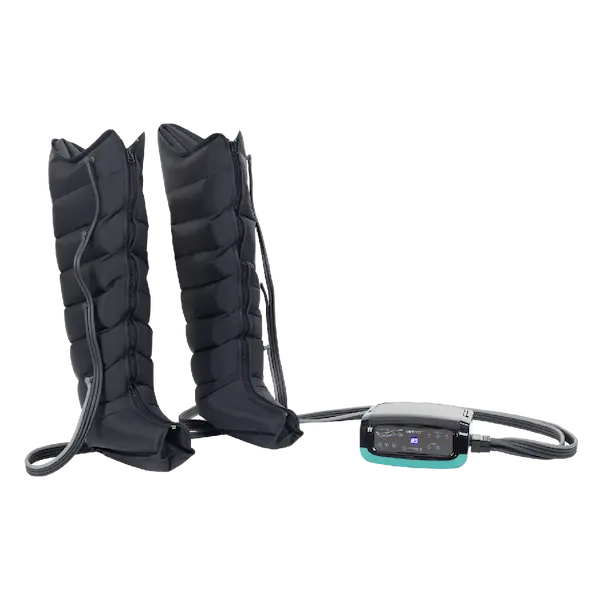

- 2x Leg Sleeves (8 Chambers).
- 2x Sleeves Extenders.

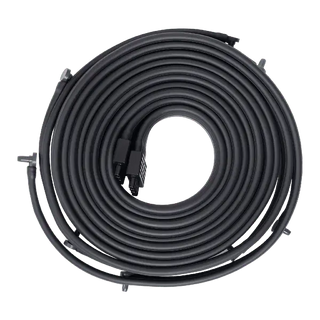

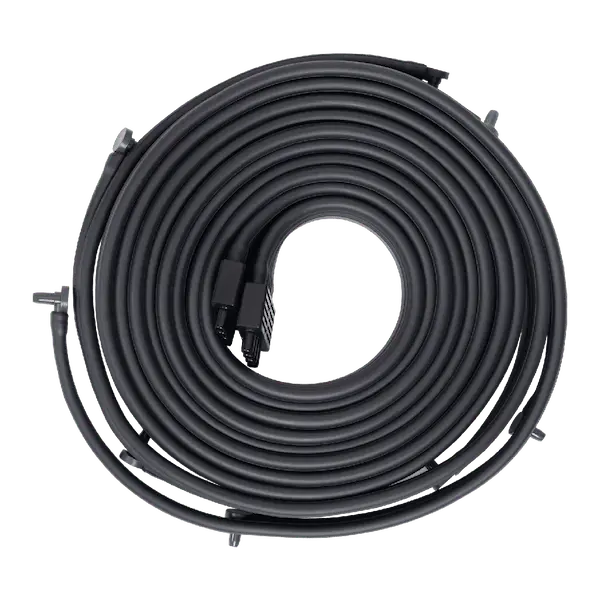

- 2x Air Tubes.
- 1X Air Adapter.
- 1X Allen Key.
- Color:
-
- Sleeves: Gray.
- Pump: Black top and green bottom.
- Size(s):
-
- Small.
- Medium.
- Medium Wide.
- Large.
- Sizes dimensions:
- Material(s):
-
- Cuff: Nylon TPU (70/30)
- Pump: Plastic/Metal (50/50)
- Latex Free.
- Care Instructions: Spot clean with a damp cloth and dry immediately.
Product Specifications:
- Mode of Compression: Sequential.
- Pressure: 20-80 mmHg.
- Adjustable Cell inflation
- Lock Mode: Locks after 20 seconds of inactivity. Press and hold 3 seconds to unlock.
- Time Selection:
-
- 30 min.
- 45min.
- 60min.
- Power Source: 110V, 60 Hz.
- Power Cord: 5.5 ft.
- Cycle Time (2 Modes):
-
- Mode A: Total time for one cycle is 82s.
-
- Chamber 1: 16s inflation.
- Chamber 2: 19s inflation.
- Chamber 3: 22s inflation.
-
Chamber 4: 25s inflation.
**One chamber inflates at a time while the others deflate.
- Mode B: Total time for one cycle is 97s.
-
- Chamber 1: 16s inflation.
- Chamber 2: 19s inflation.
- Chamber 3: 22s inflation.
-
Chamber 4: 25s inflation.
**Inflates one chamber at a time but they remain inflated, when all chambers are inflated then it starts deflation for 15 seconds.
