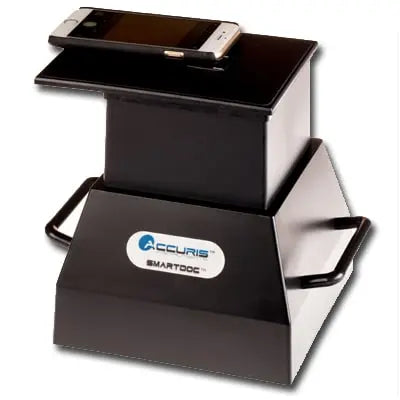

Benchmark Scientific Accuris SmartDoc™ Imaging Enclosure

The SmartDoc Imaging Enclosure can be used on most existing UV or visible blue light transilluminators.  An orange photo filter is included for photography of the gels when using a visible blue light transilluminator for stain excitation. For imaging gels on a UV transilluminator, there are 3 optional photo filters available: 535nm filter for imaging green stains on UV light, 590nm filter for imaging EtBr on UV light, and the UV Blocking filter is optimized for use with the Accuris E3100 myView UV Transilluminator.

An extending adapter is included with the enclosure and can be inserted for full dimension imaging of gels up to 15 x 15 cm. Or remove the adapter for close up pictures or smaller gels.

When using the SmartDoc enclosure on transilluminators with a large illuminating surface (exceeding 19x19cm), use E5000-MAT to block light around the edge.

• Imaging enclosure works with all common smart phones
• 19 x 19cm base fits on most existing UV or blue transilluminators
• Includes orange photo filter for use with blue light
• Optional 535nm, 590nm, and UV blocking photo filters for use with UV transilluminators
