Benchmark Scientific Accuris myGel™ Mini Electrophoresis System

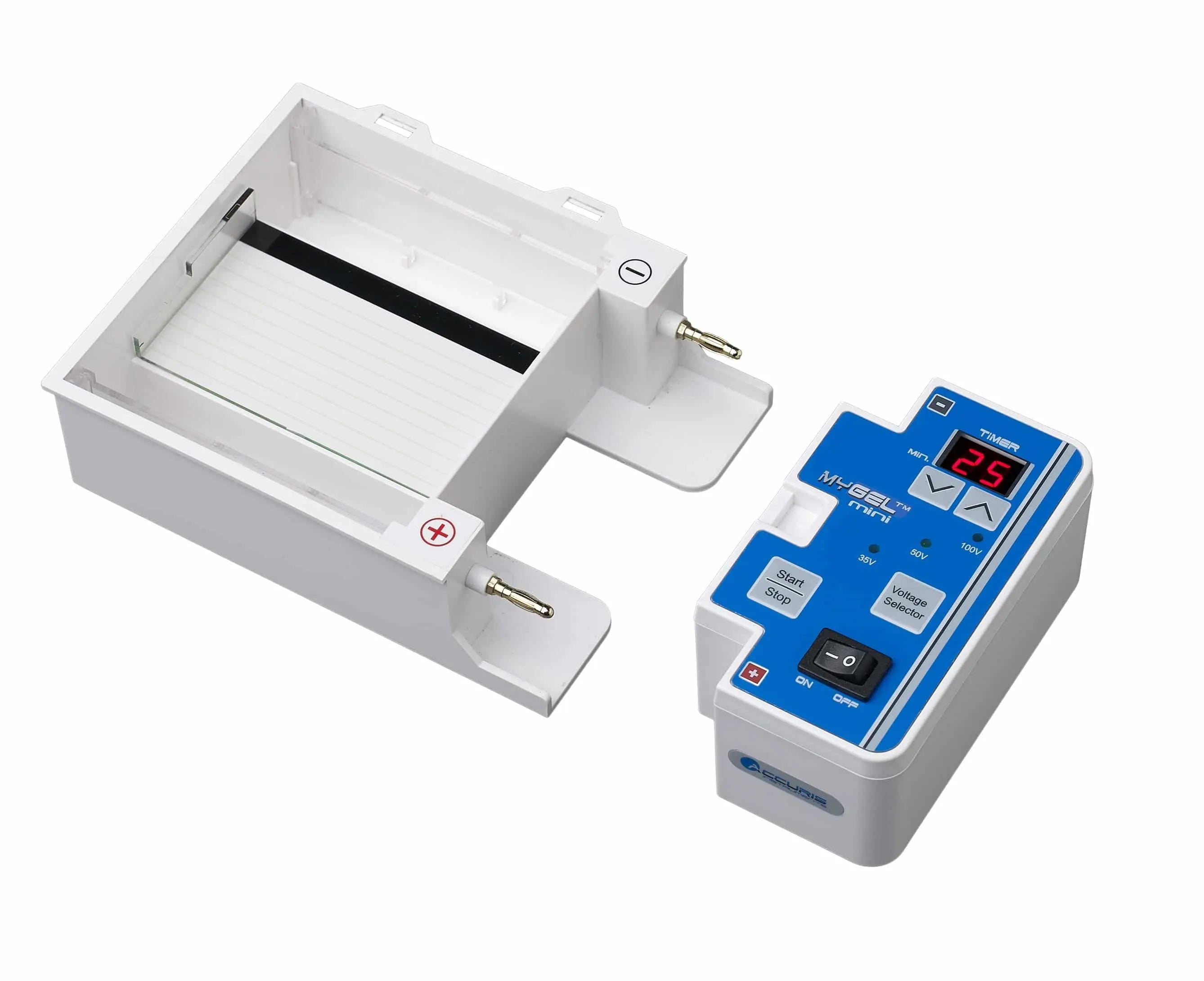

The myGel mini gel box attaches directly to the power supply for a secure connection everytime. Selectable parameters include 3 preset voltages – 35V, 50V or 100V – and a 99 minute timer. All are set using the memberane keypad.

The safety lid is vented to help dissipate heat generated during electrophoresis, and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box.

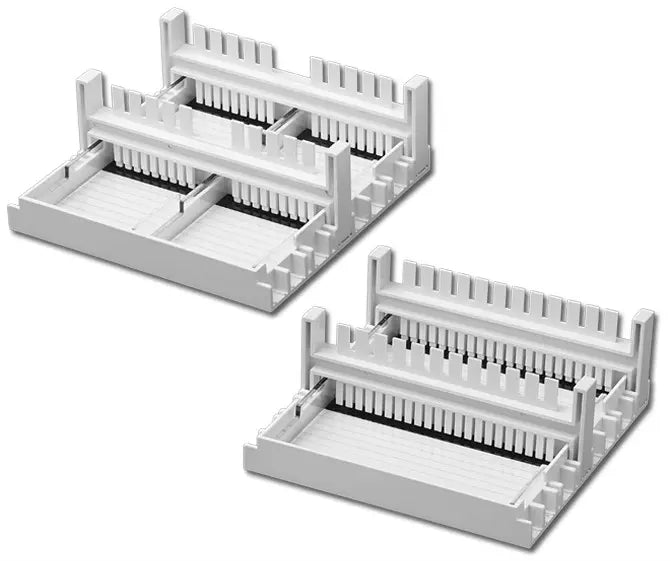

Trays and casting stands for both 10.5 x 6cm and 5 x 6cm gels are included with the myGel Mini system, as are double-sided combs. The smaller tooth combs are compatible with multichannel pipettes. Casting is quick and easy – just place the tray in the casting stand and pour. The trays feature a dark contrast strip to help visualize wells while loading and lines that fluoresce under UV and blue light to track progress of the run.

E1101-SK myGel Mini Starter Kit:  The myGel System can now be purchased as a kit that includes a mini lab balance, weigh boats, and 100g of our Benchmark Agarose LE.  This Starter kit is offered at a value price, click on the “Request a Quote” link below to request pricing information.

• Complete system, includes gel box, power supply and casting sets
• Quick and easy gel casting, no tape, clamps or spacers required
• Compact design, footprint: 7 x 5.1 in.

Specifications:

Output Voltage:	35V, 50V or 100V
Timer:	0-99 min. or Cont.
Safety:	Lid interlock
Max. Buffer (ml):	230
Gel Capacity:	One: 10.5 x 6cm Two: 5 x 6cm
Weight:	1 lbs / 0.45 kg
Dimensions:	7.5 x 5.1 x 2.1 in
Electrical:	115V or 230V, 50-60Hz
