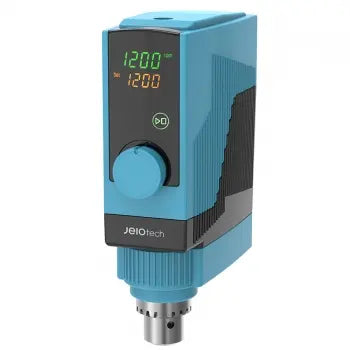

Jeio Tech AAH373225U MSD-0420 Mechanical Stirrer(digital) US Plug 120V, 60Hz
Jeio Tech AAH373225U MSD-0420 Mechanical Stirrer(digital) US Plug 120V, 60Hz
Features
Performance & Convenience
- Years of vibration-free and silent operation.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring. - Powerful torque capable of handling high viscosity tasks.
- Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
- Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
- Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
- Well illuminated digital display panel with sensitive touch buttons.
- Set/present rpm, power ratio (%) and run time are visible together on one screen. - Stirring directions are selectable depending on each impeller’s shape.
- Built-in USB port for external control and data collection.
- Lab Companion software and USB cable are provided. - Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
- Safety features against overload and overheating for continuous operation.
- Keypad lock function prevents accidental changes.
Specifications
| Model | MSD-0420 | |
|---|---|---|
| Speed control | PID feedback control | |
| Speed range (rpm) | 80 to 2,000 | |
| Chuck range (mm / inch, dia) | 3 to 10 / 0.1 to 0.4 | |
| Stirring capacity, Max. (L, H2O) | 20 | |
| Viscosity, Max. (cP) 1) | 5,000 (~2,000rpm) / 10,000 (~1,200rpm) / 30,000 (~300rpm) / 50,000 (~200rpm) | |
| Torque, Max. (N·cm) | 19 | |
| Motor rating input / output (W) | 70 / 40 | |
| Material | Body / Cover / Motor | Powder coated aluminum / Polypropylene / BLDC |
| Dimension | Overall (W×D×H) (mm / inch) | 75x215x150 / 2.9x8.5x5.9 |
| Net weight (Kg / lbs) | 2.8 / 6.2 | |
| Protection class (DIN EN 60529) | IP30 | |
| Electrical requirements (230V 50/60Hz) | 0.5A | |
| Electrical requirements (120V 60Hz) | 0.5A | |
