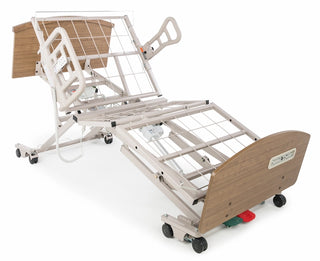

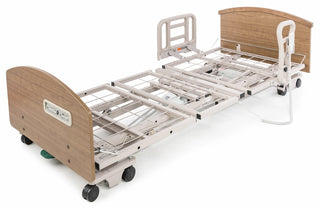

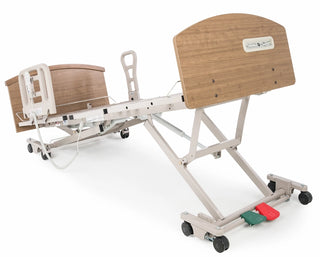

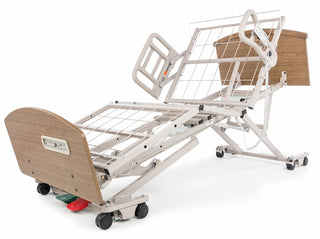

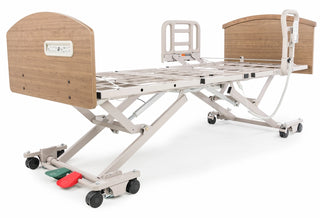

Basic American ZZ7F35 Zenith™ Z7200 Series – Heavy-Duty Bariatric Bed with Slide-W-I-D-E® Integrated Expandable Deck (36"–39"–42")
The Basic American Zenith™ Z7200 Series is a premium, extra-durable full-electric long-term care bed engineered for maximum safety, comfort, and reliability in nursing homes, rehab centers, hospitals, and long-term care facilities. Proudly made in the USA (Fond du Lac, Wisconsin) by Basic American / Graham-Field, it features the patented Slide-W-I-D-E® integrated expandable deck for effortless width adjustment (36" standard / 39" / 42" with quick-release pins), adjustable length (80"–84"), and a sturdy grid sleep surface with cross braces for superior mattress support (no sag or bottoming out with heavier patients). The bed includes sealed ball bearings for smooth, quiet, maintenance-free movement, SilverSolutions antimicrobial powder coating for surface protection, synchronized Hi-Lo motors to keep the bed level, battery backup, and deluxe casters (standard or pedal-lock options). APS models support optional Trend/Reverse Trendelenburg and Chair positioning via plug-and-play digital electronics.
Features:
- Made in the USA — minimal lead times, quality craftsmanship, fast response to customer needs
- SilverSolutions antimicrobial powder coating — provides continuous surface protection against bacteria
- Sealed ball bearings — seamless, noiseless, maintenance-free joint movement
- Slide-W-I-D-E® expandable deck — quick-release pins adjust width from 36" to 39" or 42" for patient size and clearance
- Grid sleep surface with cross braces — sturdy, no-sag design for excellent mattress support
- Full-electric 3-function operation — head, foot, and Hi-Lo adjustment; quiet and energy-efficient
- Synchronized Hi-Lo motors — maintain level bed during height changes
- Battery backup standard — ensures operation during power failures
- Deluxe caster options — 5" casters (standard swivel or pedal-lock for central floor locking)
- ANSI/AAMI ES60601 certified — tip stability, load capacity (2× operating), roll clearance, splash-proof electronics
- CMS Emergency Preparedness certified — transport-ready through doorways/hallways
- Optional plug-and-play digital electronics — future upgrades (Trend/Rev Trend, Chair, underbed light, USB charger)
- Optional intuitive side rails & head/footboards — sold separately
- High-strength truss frame — durable powder-coated finish
- Simple assembly — no special tools required
- Grounded bed with right-angle hospital-grade plug — added safety for staff and residents
Specifications:
| Specification | Details |
|---|---|
| Deck Width (Adjustable) | 36" (standard) – 39" – 42" (Slide-W-I-D-E®) |
| Deck Length (Adjustable) | 80" – 84" |
| Deck Height Range | Min. 7.95" – Max. 30" |
| Operation | Full-electric (head, foot, Hi-Lo) – 3-function standard; APS adds Trend/Rev Trend + Chair |
| Casters | 5" Deluxe (standard swivel or pedal-lock) |
| Patient Weight Capacity | 500 lbs |
| Total Weight Capacity | 550 lbs (patient + mattress + rails + accessories) |
| Intended Use | Long-term care, bariatric patient care, rehab |
| Warranty | Main Frame & Welds: 15 years Control Box & Actuator Motors: 5 years Hand Control Pendant & Cabling: 3 years Head & Footboards: 1 year All Other Components: 1 year |
Variants:
| Variant Name | SKU | Deck Width | Features Included | Caster Type | Notes / Shipping Weight (Approx.) |
|---|---|---|---|---|---|
| Z7200 35" Deck w/ Pedal-Lock | ZZ7F35 | 35" | Standard 3-function | Pedal-lock |
(estimated 250–300 lbs packaged) – freight intensive |
| Z7200 35" Deck w/ Standard Casters | Z7F35 | 35" | Standard 3-function | Standard swivel | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 APS 35" Deck w/ Pedal-Lock | ZZ7AF35 | 35" | APS (Trend/Rev Trend + Chair optional) | Pedal-lock | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 APS 35" Deck w/ Standard Casters | Z7AF35 | 35" | APS (Trend/Rev Trend + Chair optional) | Standard swivel | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 SlideWide w/ Pedal-Lock | ZZ7SW | 36"–42" | Slide-W-I-D-E® expandable deck | Pedal-lock | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 SlideWide w/ Standard Casters | ZG7SW | 36"–42" | Slide-W-I-D-E® expandable deck | Standard swivel | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 APS SlideWide w/ Pedal-Lock | ZZ7ASW | 36"–42" | APS + Slide-W-I-D-E® expandable deck | Pedal-lock | (estimated 250–300 lbs packaged) – freight intensive |
| Z7200 APS SlideWide w/ Standard Casters | Z7ASW | 36"–42" | APS + Slide-W-I-D-E® expandable deck | Standard swivel | (estimated 250–300 lbs packaged) – freight intensive |
Contents:
| Description | Quantity |
|---|---|
| Basic American Zenith Z7200 Full-Electric Bed Frame | 1 |
| Two-Piece Split Steel Frame | Included |
| Slide-W-I-D-E® Expandable Grid Deck (35" or 42" width) | Included |
| Pendant Control (3-function standard; APS model includes advanced functions) | Included |
| Deluxe 5" Pedal-Lock or Standard Casters | Included |
| Battery Backup System | Included |
| User Manual & Assembly Guide | 1 |
| Carton Packaging | 1 |
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor (Graham-Field / Basic American). Not cancellable, not returnable once processed.
- Shipping: Very heavy item (estimated 250–300 lbs packaged) – freight intensive. Freight shipping required. Calculated at checkout (notify customer of freight exception).
- Installation Tips: Simple assembly – no special tools required. Professional setup recommended for clinical use. Rails, boards, scale, and other accessories sold separately.
- Cleaning: Wipe frame and deck with mild soap or hospital-grade disinfectant; powder-coated finish with SilverSolutions resists corrosion and bacteria.
- Permissible Ambient: Indoor use; avoid extreme temperatures.
- Applications: Bariatric patient care, long-term care, rehab, pressure ulcer prevention, expandable width/length for custom fit, caregiver-assisted positioning. Volume discounts available – call or email for orders of 10+ units.
