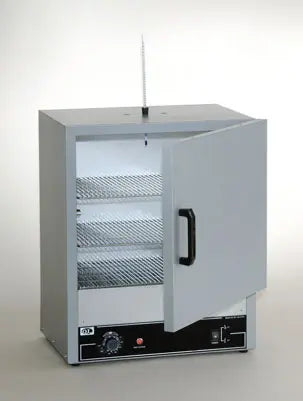

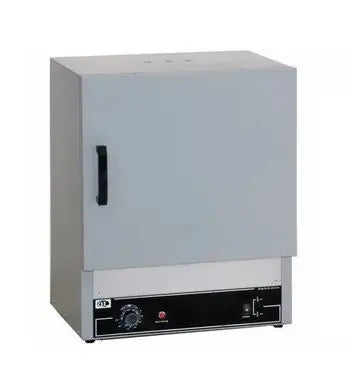

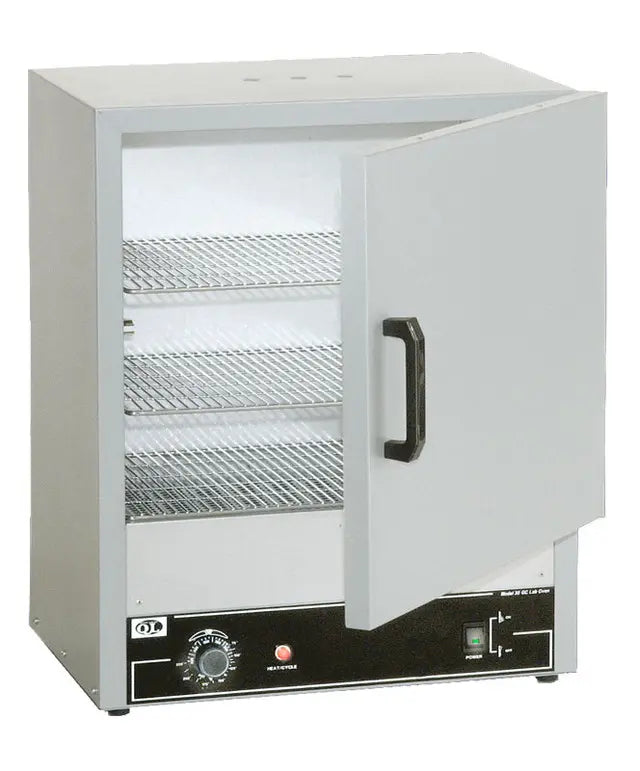

Quincy Lab 30GC Gravity Convection Analog Lab Oven
Quincy Lab 30GC Gravity Convection Analog Lab Oven
Quincy Lab 20GC Analog Oven: Gravity, 2.0 cu ft Capacity, 232°C Max Temp, 1200 W
The Quincy Lab 30GC gravity convection oven has a maximum temperature of 232 degrees Centigrade (450 Fahrenheit) and has a chamber volume of 2.0 cubic feet (56.6 liters). The GC series ovens are competitively priced and offer exceptional value and reliability.
Product Description:
- These gravity convection ovens are designed to meet the laboratory needs of industry, research organizations and schools. Well-crafted and versatile, they are used for drying, baking, sterilizing. evaporating, heat treating, annealing and testing
- Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high impact thermoplastic handles. Cabinets have heavy steel double-wall construction
- Work space is insulated from the outer cabinet with one inch of high density mineral wool, and interiors are made of corrosive-resistant aluminized steel
- Quincy Lab uses quality UL and CSA recognized components in all ovens. The control panel is equipped with an illuminated ON-OFF rocker switch and a heat/cycle pilot light
- Temperature is controlled by an automatic Hydraulic thermostat
- Energy efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly
Features:
- Two included adjustable shelves allow configuration to suit your needs.
- Interior surfaces are constructed of corrosive resistant aluminized steel.
- High density mineral wool insulates inside chamber from outside cabinet.
- Light gray scratch resistant exterior looks great in any environment.
- Control panel includes illuminated On/Off rocker switch and a heat/cycle pilot light.
- Temperature is controlled by an automatic Hydraulic thermostat.
- Doors open with high impact thermoplastic handles.
-
Cabinets have heavy steel double-wall construction.
Product Specifications:
| MODEL | 30GC |
| INTERIOR DIMENSIONS | |
| Inches W x H x D | 18 x 15.63 x 12 |
| (cm) W x H x D | 45.7 x 39.7 x 30.5 |
| EXTERIOR DIMENSIONS | |
| Inches W x H x D | 20 x 25 x 14.3 |
| (cm) W x H x D | 50.8 x 64.8 x 36.2 |
| CAPACITY | |
| Cubic feet | 2.0 |
| Liters | 57 |
| ELECTRICAL | |
| Volts / Amps | 115 /10.4 |
| Watts | 1200 |
| Frequency (Hz) | 50/60 |
| PERFORMANCE | |
| Control Stability | |
| Typically ± °C / °F | 3° / 6° |
| Time to temp. | |
| Ambient to 100°C | 6 min |
| Ambient to Max | 23 min |
| Recovery time at 150°C | |
| Door opened 15 sec. | 4 min |
| Door opened 30 sec. | 6 min |
| Weight (lbs.) | |
| Shipping / alone | 76.2 / 57.2 |
| Shelves | |
| Max. per unit (1in. center) | 16 |
| Maximum lbs. / shelf | 35 lbs |
