EVAC+CHAIR 500H – High-Capacity Bariatric Emergency Evacuation Chair with 500 lb Capacity for Safe Stair Descent

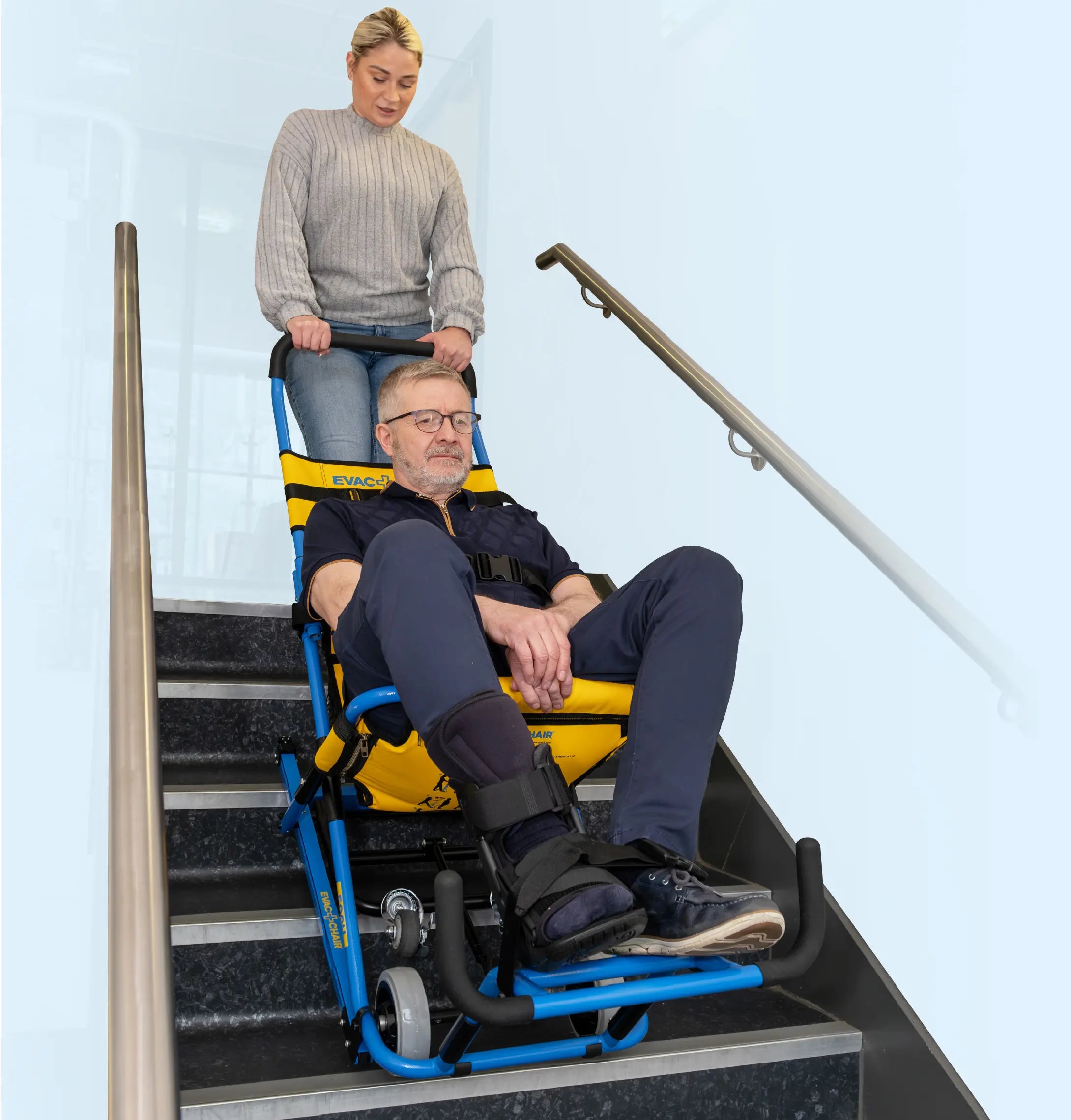

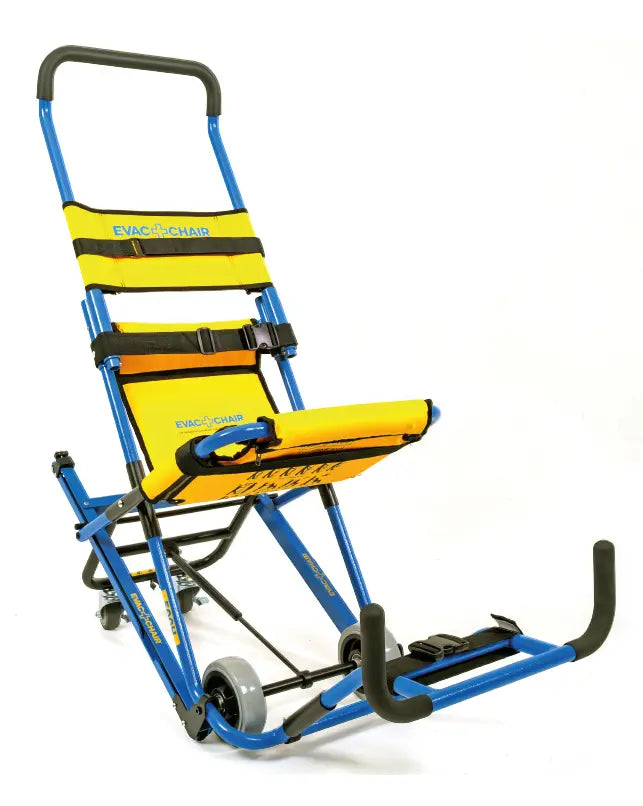

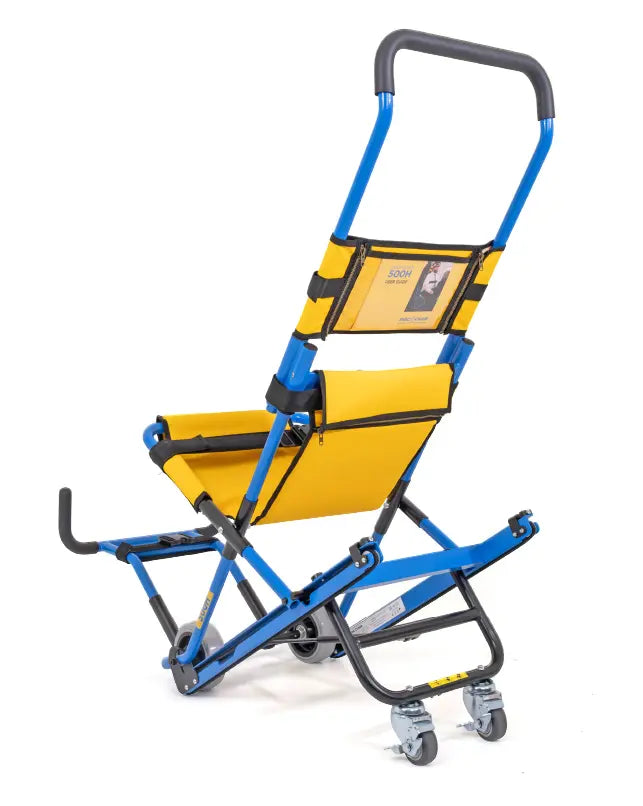

The EVAC+CHAIR® 500H is a high-performance, bariatric-rated emergency stair chair engineered for the safe, controlled evacuation of mobility-impaired individuals from multi-story buildings or confined spaces during emergencies (fire, power outage, natural disaster, etc.) where elevators cannot be used. Designed in the United States and built on the proven EVAC+CHAIR platform, the 500H model supports up to 500 lbs (227 kg), making it ideal for hospitals, nursing homes, long-term care facilities, large office buildings, and other locations with higher patient/passenger weight requirements.
This single- or two-person operation chair features the advanced Evac+Track™ friction-controlled braking system for smooth, self-regulating descent on stairs between 28°–45°, fold-away grip handle/footrest for added stability in two-person mode, dual-position seat, 4-point quick-release safety belts (including foot belt), and ergonomic design elements for both passenger comfort and operator ease. It folds compactly for storage and is wall-mountable for rapid deployment in designated evacuation zones.
Features:
- High Bariatric Capacity – Safely supports up to 500 lbs / 227 kg
- Evac+Track™ System – Wider reinforced tracks with self-braking control for smooth, single-person descent on steep stairs (28°–45°)
- Single- or Two-Person Operation – Fold-away grip handle/footrest enables two-person mode for extra stability when needed
- Ergonomic & Comfort – Dual-position seat, fold-away footrest, adjustable head restraint
- Safety & Security – 4-point quick-release harness (head, chest, thigh, foot), reflective decals for low-visibility conditions
- Mobility & Durability – Heavy-duty wheels for uneven terrain, lockable rear wheels for stationary positioning
- Lightweight & Compact – Only 29 lbs, folds to 45" H × 20" W × 9" D for easy storage
- Compliance & Warranty – FDA Registered, ADA-supportive, exceeds fire safety & emergency guidelines, Lifetime Manufacturer Warranty
Included Accessories:
- 4-Point Quick-Release Harness (Head, Chest, Thigh, Foot)
- Photoluminescent Signage
- Wall Mounting Brackets
- Dust Cover
- User Guide
Specifications:
| Specification | Details |
|---|---|
| Model / SKU | 1-500H |
| Folded Dimensions | 45" H × 20" W × 9" D |
| Weight (Empty) | 29 lbs |
| Weight Capacity | 500 lbs (227 kg) |
| Track System | Evac+Track™ reinforced friction-controlled self-braking tracks |
| Seat | Dual-position adjustable seat |
| Safety Harness | 4-point quick-release (head, chest, thigh, foot) |
| Head Restraint | Adjustable |
| Footrest | Fold-away for passenger comfort and two-person stability |
| Wheels | Heavy-duty with lockable rear wheels |
| Finish | Blue powder-coated textured |
| Compliance | FDA Registered, ADA-supportive, exceeds fire safety & emergency guidelines |
| Warranty | Lifetime Manufacturer Warranty |
| Intended Use | Emergency evacuation of mobility-impaired or bariatric individuals from multi-story buildings |
| Country of Origin | Designed in the United States |
| Brand | EVAC+CHAIR® |
| Shipping Weight (Approx.) | 35–45 lbs (standard shipping – contact for freight quote if needed) |
Variants:
| Variant Name | Description | SKU | Shipping Weight (Approx.) | ||
|---|---|---|---|---|---|
| Standard 500H Model | High-capacity bariatric emergency stair chair with 500 lb rating | 1-500H | 35–45 lbs (standard) |
Contents:
| Description | Quantity |
|---|---|
| EVAC+CHAIR® 500H Emergency Stair Chair | 1 |
| 4-Point Quick-Release Harness (Head, Chest, Thigh, Foot) | Included |
| Photoluminescent Signage | Included |
| Wall Mounting Brackets | Included |
| Dust Cover | Included |
| User Guide | 1 |
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from manufacturer. Not cancellable, not returnable once processed.
- Shipping: Medium-weight item – standard shipping available in most cases (freight may apply for bulk orders). Calculated at checkout.
- Installation/Storage Tips: Wall-mountable with included brackets. Folds compactly for storage in cabinets, closets, or designated evacuation points.
- Cleaning: Wipe frame, belts, and tracks with mild soap or disinfectant; durable materials resist wear.
- Permissible Ambient: Indoor/outdoor emergency use (avoid extreme heat/cold for prolonged periods).
- Applications: Emergency evacuation of bariatric and mobility-impaired individuals from multi-story buildings, hospitals, nursing homes, offices, schools, hotels, and public facilities. Volume discounts available – call or email for orders of 10+ units. Training and certification programs recommended for staff.
