Frost 400 Series Stainless Steel Combination Dispenser/Disposal For High Volume Areas
The Frost 400 Series Stainless Steel Combination Dispenser/Disposal is Frost’s largest combination fixture and is ideal for high volume areas. Available in recessed, semi-recessed, and surface-mounted configurations, the 400 Series is commonly used in schools, universities, restaurants, malls, office buildings, condominiums, fitness facilities, and recreation centres.
Constructed from 18 and 20 gauge Canadian stainless steel, the unit features a stainless steel safety guarded saw tooth cutting bar, two tumbler keyed locks, full-length stainless steel piano hinges, a counterbalanced stainless steel waste door, and a removable leak proof roto moulded liner.

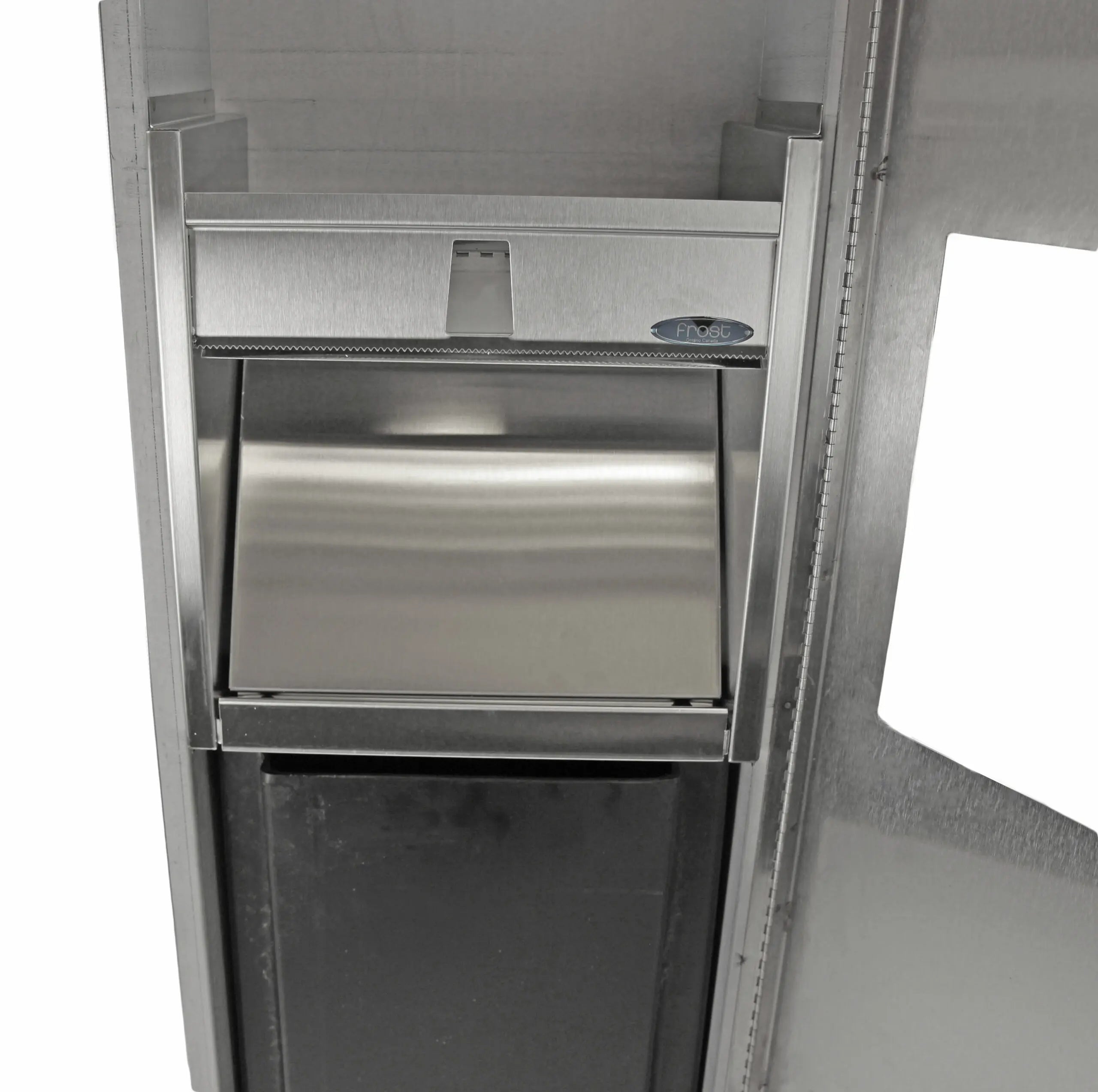

The dispenser accepts single fold paper towels or standard roll paper towels. It is designed as a universal, non-proprietary dispenser that works with paper from standard commercial paper producers. The unit is manually operated and refilled by unlocking the dispenser from the top and bottom, allowing the door to pivot open for loading new paper.
Features
- Made with 18 & 20 gauge Canadian stainless steel
- Stainless steel (safety guarded) saw tooth cutting bar
- Secured with two tumbler keyed lock, keys provided
- All doors are hinged with full length stainless steel piano hinges
- Counterbalanced stainless steel door (20 gauge) provides maximum fire protection, mounted with full length piano hinge
- Removable leak proof roto moulded liner
- Dispenses single fold or standard roll paper towels
- Universal, non-proprietary dispenser
- Manually operated
- Refilled by unlocking the dispenser from the top and bottom and pivoting the door open
Specifications
| Brand | Frost |
| Series | 400 |
| Product Type | Stainless Steel Combination Dispenser/Disposal |
| Installation Options | Recessed, Semi Recessed, Surface Mounted |
| Paper Compatibility | Single Fold or Standard Roll Paper Towels |
| Capacity | 32 L (8.5 US gal.) |
| Body Material | 18 Gauge Stainless Steel |
| Door Material | 20 Gauge Type 304 No. 4 Brushed Finish Stainless Steel |
| Dimensions | 13.75" W × 57.5" H × 6.1" D |

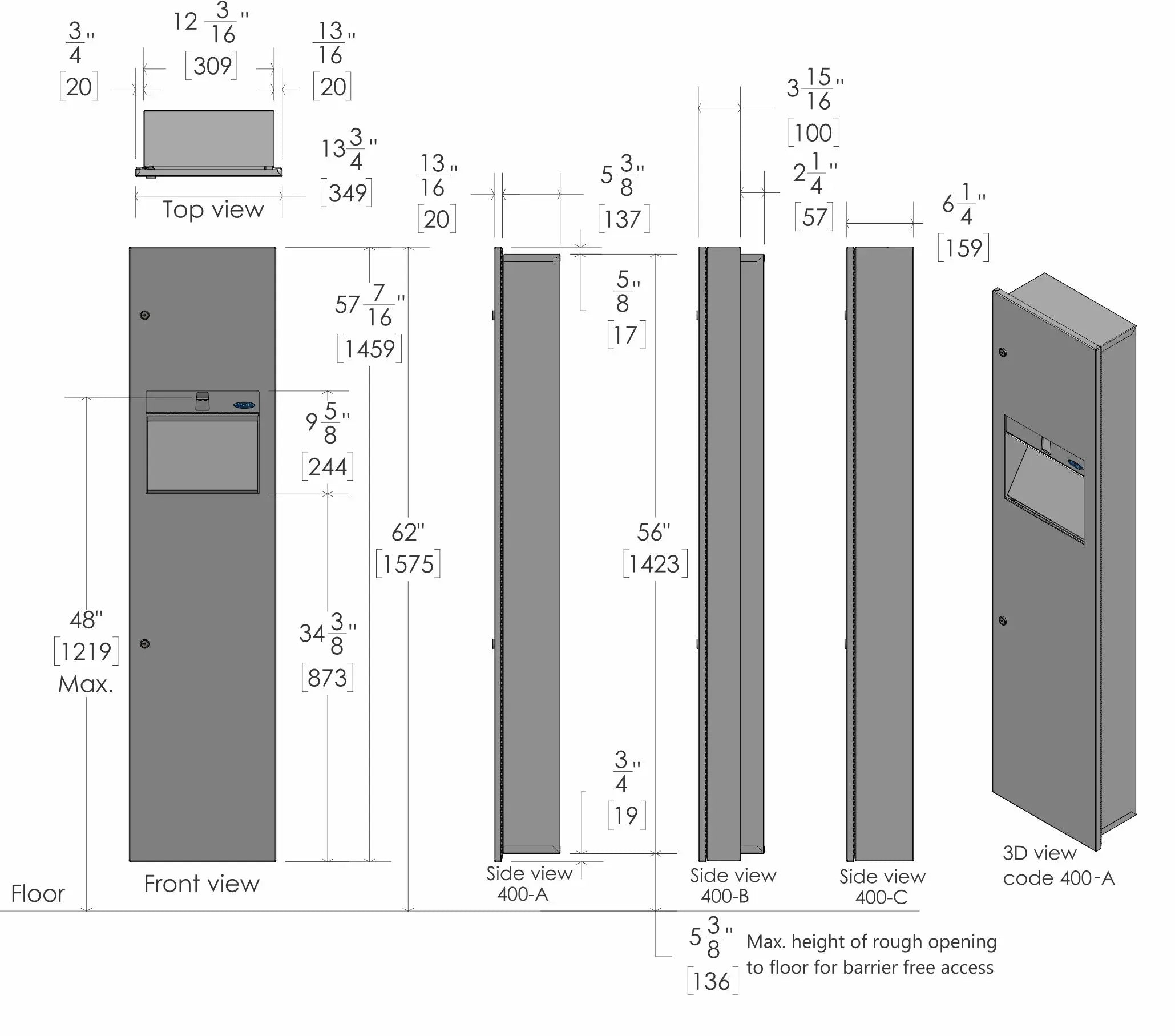

Installation
400-A – Recessed:
Provide a 12⅜" W × 56⅜" H × 6" D wall opening.
400-B – Semi Recessed:
Provide a 12⅜" W × 56⅜" H × 3" D wall opening.
400-C – Surface Mounted:
Using the appropriate tools for installation, drill mounting holes as required and attach the unit into the desired surface. Collar is secured between recessed body flange and wall.
For unrestricted access, the height of the top of the unit to the floor must not exceed 62", and the bottom of the rough opening must not exceed 5" from the floor.
It is recommended that all installations be conducted by a qualified tradesperson. Please read and follow any additional installation guidelines provided with the product. Failure to do so may result in serious injury or death.
