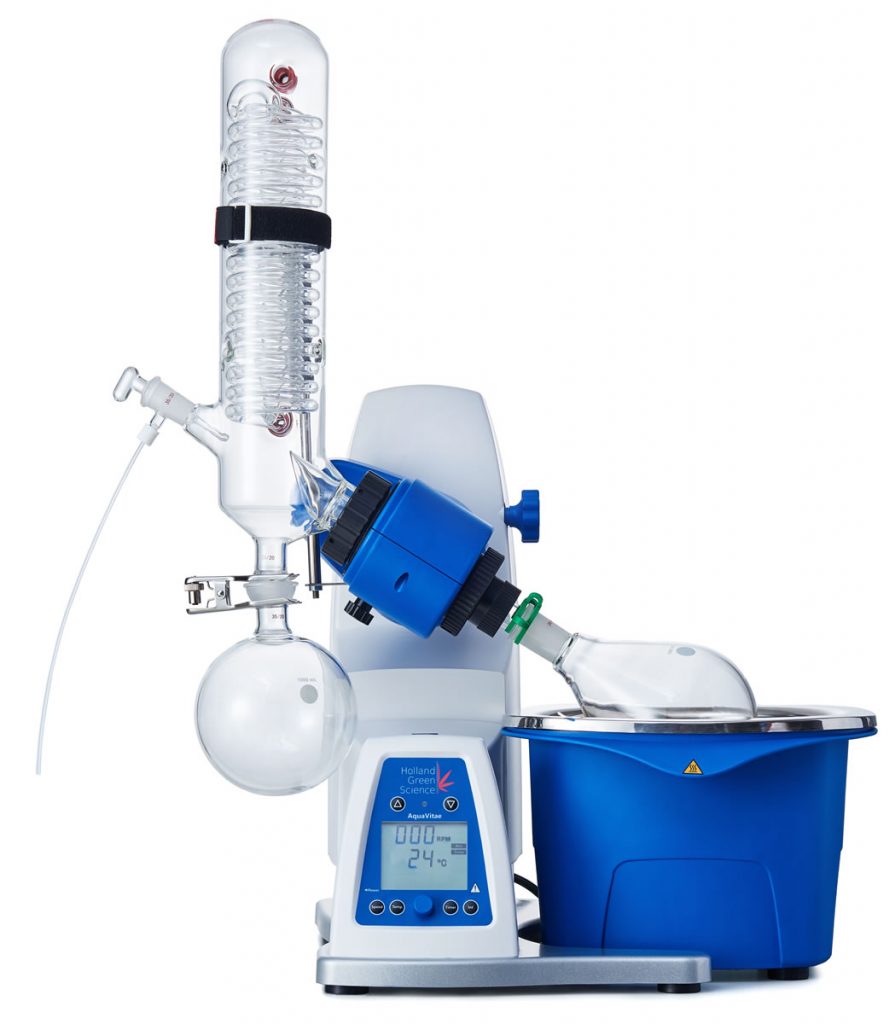

Holland Green Science 10206003 Aqua Vitae Rotary Evaporator 2L
The Aqua Vitae Digital Rotary Evaporator is an essential tool for the efficient and gentle evaporative removal of solvents such as ethanol from winterised crude oil.
The system is highly efficient and easy to use. The bath temperature of up to 180°C covers all common solvents and even allows for in-evaporator decarboxylation if required.
Standard Features
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- 5L heating bath with a wide temperature range from room temp. to 180°C with water/oil heating mode
- Speed range of 20 to 280 rpm with clockwise and anti-clockwise rotation
- Patented condenser (cooling surface 1,700 cm2 ) with excellent cooling thus solvent recovery performance
- Flask release mechanism ensures easy removal of evaporating flask
- Patented double spring sealing ring made of PTFE provides excellent sealing performance
- Remote control function via PC control including data transmission
Specifications
| Evaporation Flask Volume | 2 litres |
| Water Bath Volume | 5 litres |
| Power Specification | 100-120V 50Hz/60Hz 1ph – 1400W |
| Motor Type | Brushless DC Motor |
| Speed Range | 20-280 rpm |
| Display | LCD (speed, temperature, time) |
| Clockwise and Anti-Clockwise | Yes |
| Heating Temperature Range | ambient. to 180 °C |
| Control Accuracy | water: ±1 °C oil: ±3 °C |
| Heating Power | 1300W |
| Timer | Yes |
| Time Setting Range | 1 -999 min |
| Dimension[D×W×H] | 465 × 457 × 583 mm |
| Weight | 19.44 kg / 42.86 lbs |
| Permissible Ambient Temperature | 5 – 40 °C |
| Permissible Relative Humidity | 80% RH |
| Protection Class | IP 20 |
| USB Interface | Yes |
| Evaporation Flask Connection | NS24/40 |
| Receiving Flask Connection | KS35/20 |
