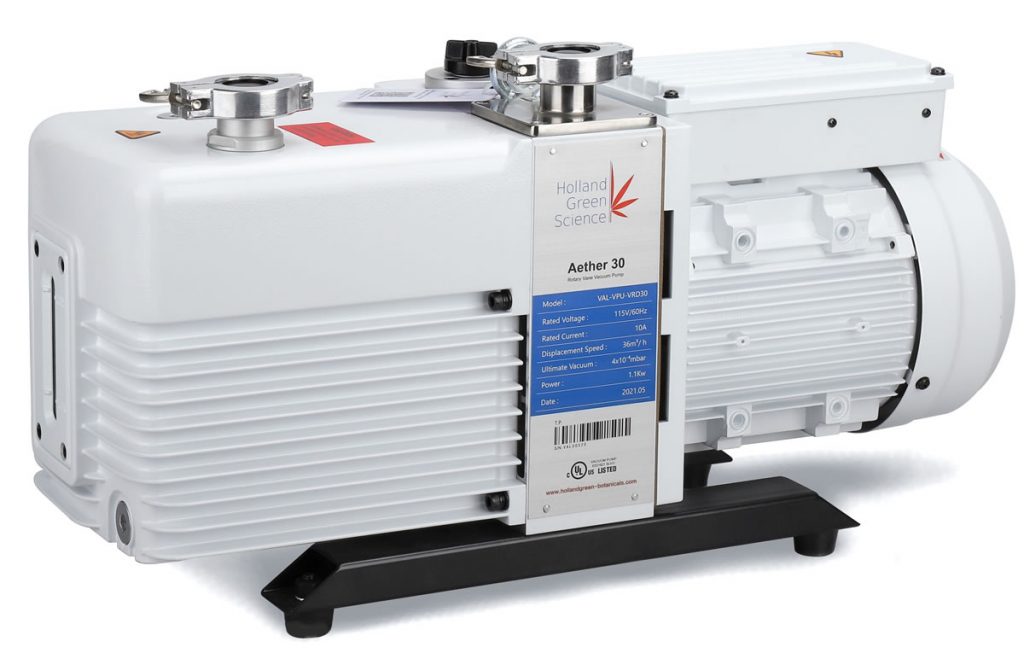

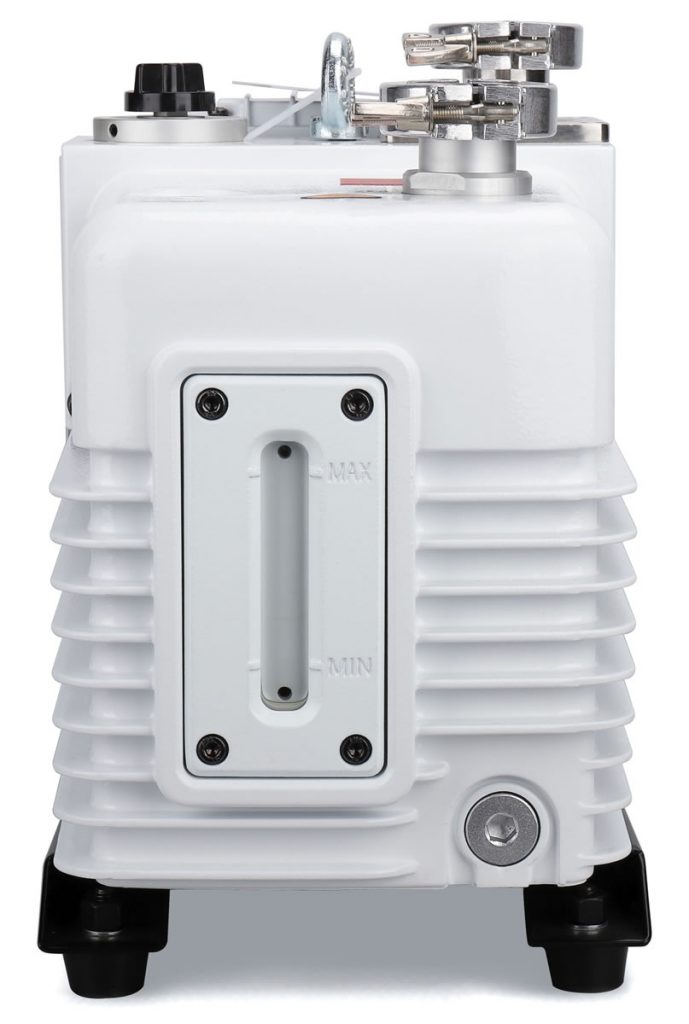

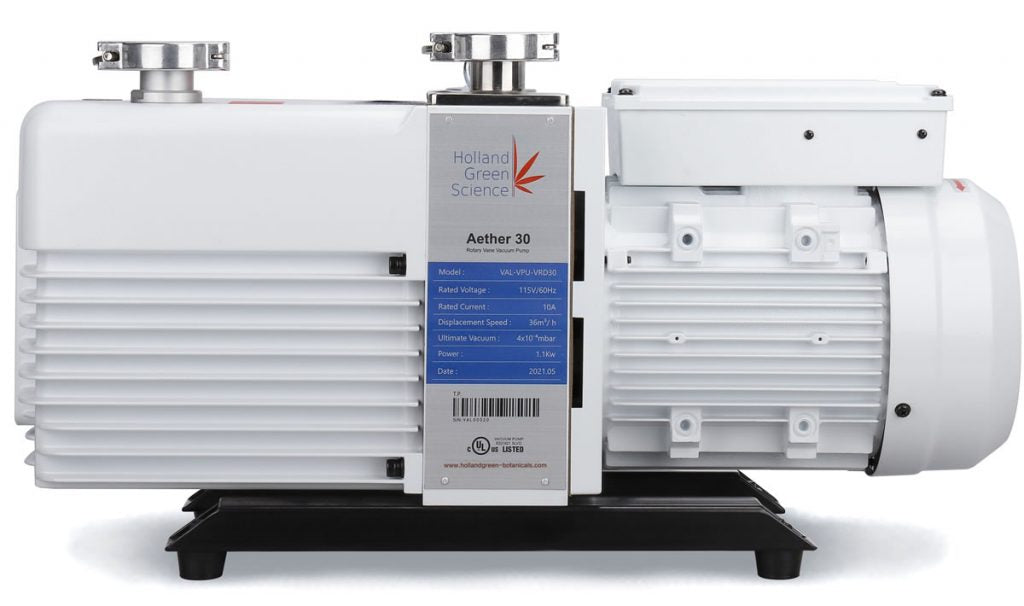

Holland Green Science 10611005 Aether 30 Vacuum Rotary Vane Pumps
The Aether series Vacuum Pump is a high speed, motor direct drive, dual-stage oil sealed rotary vane pump. Suitable for use with inactive gases within the scope of low vacuum with a small amount of non-condensable gas
Standard Features
- High Reliability
- High Flow Rate
- Low Ultimate Pressure
- A Low Noise Level
- No Oil Spray / Leaks
- Easy to Maintain
- Comes with Pump Oil
- UL and CE rated
- Over-temperature protection
- Adjustable gas ballast valve to optimize vapor tolerance whenever condensable vapor is pumped
-
Oil anti-suck back valve to prevent oil contamination of your application with pump oil
- Forced oil circulation system maintains constant oil pressure and supply for better pump life
- Simple maintenance with minimal partsSpecifications
Specifications
| HGS SKU Number | 10611004 | 10611005 |
| Power Specification | 110V 60HZ 1ph – 1100W | 110V 60HZ 1ph – 1100W |
| Displacement Speed m3/h | 19.2 | 36 |
| Ultimate Partial Pressure Gas Ballast Closed | (Pa) 0.04 | (Pa) 0.04 |
| Ultimate Total Pressure Gas Ballast Closed | (Pa) 0.4 | (Pa) 0.4 |
| Ultimate Total Pressure Gas Ballast Open | (Pa) 0.8 | (Pa) 0.8 |
| Inlet and Exhaust Connection | KF25 | KF25/40 |
| Oil Capacity (L) | 0. 9 to 1.5 | 1.3 to 2.0 |
| Ambient Temperature | 10 – 40 °C | 10 – 40 °C |
| Noise Level (dB) | ≤58 | ≤58 |
| Net Weight (kg) | 33.1 | 34.7 |
| Dimensions (D x W x L) | 530 x 188 x 272 mm | 567 x 188 x 272 mm |
