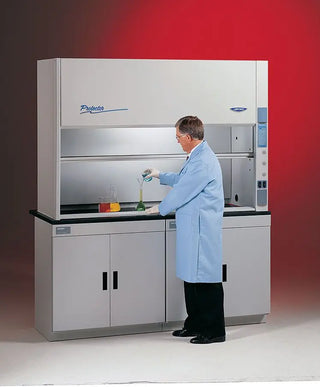

Labconco Basic 47 Laboratory Hood with Blower, 115V - 60Hz or 220V - 50Hz Option, Assembled or Assembly Required Option
Basic Laboratory Hoods are designed specifically for laboratories, classrooms and light duty applications where safe ventilation is required. Constructed of powder-coated steel, Basic Hoods are economical and have a smaller overall height and depth than traditional hoods so they fit in areas with low ceilings or narrow aisles. Choose from 4 and 6-foot widths.
Both standard and built-in blower models are available.
Features (All Models)
- By-pass airflow design
- Durable glacier white powder-coated 16 gauge steel exterior and interior resists chemical exposure
- Vertical-rising tempered safety glass sash
- Adjustable two-piece baffle
- Curved air foil that lifts off for cleaning
- Removable front panel for access to electrical wiring
- Right side fixture panel factory-prepared to accept up to three service fixtures, one electrical duplex and one airflow monitor (kits sold separately)
- Right interior wall factory-prepared for one cupsink and turret (cupsink and turret kit sold separately)
- Powder-coated steel 10.3” OD exhaust connection
- ETL listed (115V models)
- CE conformity (220V models)
Vapor-Proof Models Feature
- Pre-wired 100-watt vapor-proof incandescent light
- Pre-wired light and blower switches
Explosion-Proof Models Feature
- Explosion-proof incandescent light fixture (requires installation; bulb not included)
- Furnished without switches and wiring as these must conform to local codes
Models with Blower Module Feature
- Belt-driven blower with adjustable sheave
- Powder-coated steel base and housing
- Corrosion-resistant coated steel impeller
Options
- 4' and 6' widths
- Versatile built-in blower that mounts on top of the hood liner, above the hood or at a remote location
- Explosion-proof light and blower
- International electrical configurations
- Unassembled hoods
Required Accessories
- Remote Blower (except Built-In Blower Models)
- Ductwork
- Base cabinet(s) or stand
- Solid Epoxy Flat Work Surface
Optional Accessories
- Service Fixture Kits
- Electrical Receptacle Kits
- Cupsink and Turret Kit
- Guardian Airflow Monitor Kit
- Sash Stop Kit
- Right Side Finish Panel Kit
Product Specifications
| Weight |
370.0
|
| Dimensions |
47.0" w x 25.0" d x 53.0" h
|
| Electrical Requirements |
115 volts, 60 Hz, 6.8 amps, Domestic
220 volts, 50 Hz, 5.6 amps, International |
| Metric Dimensions |
119.4 cm x 63.5 cm x 134.6 cm
|
| Metric Weight (kg) |
168.0 |
| Blower Requirements |
Integral Blower Included (Request Consultation) |
| Explosion-proof |
Standard (Not Explosion-Proof) |
| Lighting |
LED Fixture |
| Nominal Width |
4' (121.92 cm)
|
| Style |
Benchtop |
| Conformance |
ASHRAE 110, ASTM E84, CAN/CSA C22.2,
NFPA 45, SEFA 1, UL |
| Product Subcategory |
General Chemistry |
