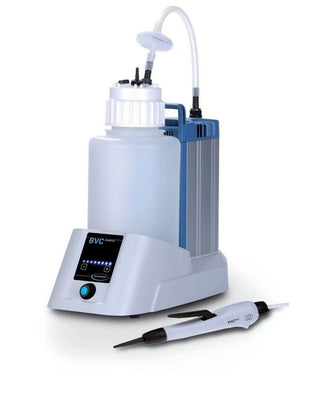

Labconco Vacuubrand BVC Control Fluid Aspiration System with 4 or 2 Liter Bottle, 115V/230V, 50/60Hz, PTFE 0.2 Micron Filter
The Labconco Vacuubrand BVC Control Fluid Aspiration control unit enables efficient and easy aspiration of supernatants. The vacuum level – and therefore the suction force – can be precisely adjusted via the electronic touch panel, ensuring accurate and repeatable operation. The chemically resistant diaphragm vacuum pump switches on and off automatically as needed, further reducing the low noise level. The BVC control unit is available in two complete equipment options with different collection bottles. The 2-liter borosilicate glass bottle with protective coating has very high chemical resistance. For larger quantities of liquid, 4 or 2-liter bottles made of unbreakable polypropylene (PP) material are used. Smooth surfaces ensure easy cleaning of the systems.
Features
- Powerful and long-lasting chemistry diaphragm pump for universal economical use
- Extremely compact, space saving and low noise and thus the ideal tool in the workplace
- Easy operation due to electronically adjustable suction power via touch panel, for strong or sensitive suction
- Autoclavable collection bottle designed to reduce aerosol and foam formation; with hydrophobic protection filter 0.2 µm, autoclavable quickcouplings available as accessory
- Ready to accept a second aspiration hand controller (VHCpro) to support two users
Product Specifications
| Max. pumping speed of the vacuum pump 50 Hz (mbar) | 0.7 m3/h |
| Max. pumping speed of the vacuum pump 60 Hz (cfm) | 0.7 cfm |
| Ultimate vacuum | 150 mbar / 112 torr |
| Number of heads | 1 |
| Number of stages | 1 |
| Vacuum controller | Touchpanel |
| Collection bottle | 2L or 4L Polypropylene |
| Permissible ambient temperature range (operation) | 10 - 40 °C |
| Permissible ambient temperature range (storage) | -10 - 60 °C |
| Max. outlet pressure (abs.) | 1.1 bar |
| Inlet connection | Suction controller |
| Outlet connection | Hose nozzle DN 8 mm / silencer |
| Rated motor power | 0.04 kW |
| Rated speed 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimensions (L x W x H) | 408 mm x 194 mm x 500 mm |
| Weight | 7.7 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) |
49 dBA |
| NRTL certification | No |
