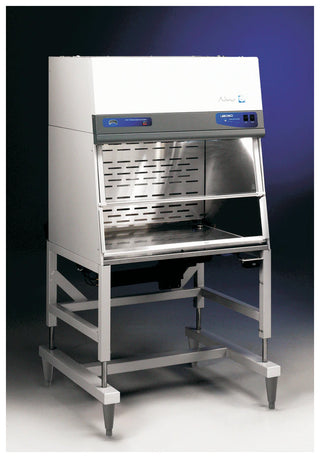

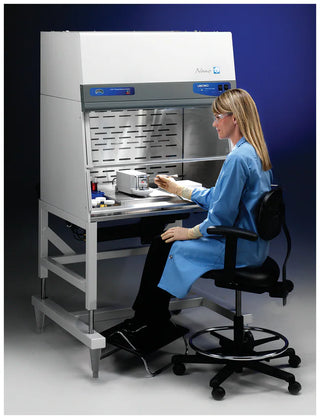

Labconco XPert Nano Enclosures 5ft. Width With or Without Built-in Ionizer, 100/115V, 50/60Hz, Exhaust ULPA Filter, 47.5 inch Tall
XPert Nano Enclosures provide user protection by keeping hazardous powders and particulates contained during procedures such as nanoparticle manipulation and dry powder chemical handling. Room air is pulled into the enclosure through the front, flows to the baffle and finally passes through a 99.999% ULPA exhaust filter before returning to the laboratory or cleanroom. Stainless steel interior sides, removable baffle, removable air foil and integral work surface are easy to wipe down and keep clean.
Features
- Deep interior easily accommodates large apparatus including analytical balances
- Patented Clean-Sweep air foil
- Upper dilution air supply
- Upper containment sash foil
- Patented, zone-perforated rear baffle
- Side-entry air foils
- Exhaust ULPA filter, 99.99% efficient on particles 0.12 micron in size
- Top-accessible ULPA filter for leak scanning of entire surface
- True bag-in/bag-out filter disposal system
- Guardian Airflow Monitor
- Type 304 stainless steel interior sides, baffle, air foil and integral work surface
- Glacier white and gray, dry powder epoxy-coated aluminum and steel exterior
- 1/4″ thick tempered safety glass front sash
- Intrinsically safe, negative pressure plenum design
- Pressure gauge to monitor filter loading
- Pre-wired fluorescent lamp and switches for blower and light
- Two utility ports for pass-through of electrical cords
- Particulate containment independently verified by NANOSAFE, INC.
Required Accessories
- Base Cabinets
- Adjustable Height Base Stands
Optional Accessories
- Ductwork
- Canopy Connections
- General Accessories
Product Specifications
| Product Type |
Enclosure |
| Lighting Type |
Fluorescent |
| Material |
Steel |
| Certifications/Compliance |
ANSI Z9.5, CAN/CSA C22.2, CE, ETL, UL 3101-1/61010-1, ASHRAE 110, SEFA 1 |
| Chamber Material |
Epoxy Coated Aluminum |
| Color |
Glacier White, Gray |
| Depth (English) |
29.1 in. |
| Depth (English) Interior |
23.3 in. |
| Depth (Metric) |
74 cm |
| Depth (Metric) Interior |
59.18 cm |
| Dimensions (L x W x H) |
29.1 x 60 x 47.5 in. (73.9 x 152 x 120.65 cm) |
| Exhaust |
ULPA filter |
| For Use With (Application) |
Nanoparticle manipulation and dry powder chemical handling |
| Height (English) |
47.5 in. |
| Height (English) Interior |
31.8 in. |
| Height (English) Sash Opening |
11.8 in. |
| Height (Metric) |
120.65 cm |
| Height (Metric) Sash Opening |
30 cm |
| Built-In Ionizer |
without Built-In Ionizer or with Built-In Ionizer |
| Length (English) |
29.1 in. |
| Length (Metric) |
73.9 cm |
| Noise Level |
58 to 63 dBA |
| Electrical Requirements |
100/115 V 60Hz - 230 V 50Hz |
| Volume (English) Exhaust |
290 to 480 cfm |
| Volume (Metric) Exhaust |
136.86 to 226.53 L/sec. |
| Width (English) |
5 ft. |
| Width (English) Interior |
58.8 in. |
| Width (Metric) |
152.4 cm |
| Width (Metric) Interior |
149.35 cm |
