MrCool EZPRO-18-HP-23011DE-O 18K BTU 5th Gen Mini Split System 230V w/ 11.5 ft Quick Connect Line Set, Quiet Indoor Comfort
The MRCOOL® DIY® Easy Pro® 18K BTU 5th Generation mini-split system offers a powerful single-zone heating and cooling solution for garages, workshops, living rooms, additional living spaces, basements, and open-plan areas up to approximately 74 square meters (800 square feet). Designed for DIY installation, this 230V ductless mini-split heat pump comes with a factory-sealed and pre-charged 3.5-meter (11.5-foot) Quick Connect® line set using R-454B refrigerant, eliminating the need for a vacuum pump, manifold gauge, or professional HVAC installation.
With inverter technology delivering ratings of 20.0 SEER2 and 8.5 HSPF2-4, the Easy Pro® 18K provides reliable year-round comfort while helping to reduce energy consumption. It features built-in Wi-Fi compatibility, ultra-quiet operation, and washable filters. This unit is a single-zone mini-split system.
Features

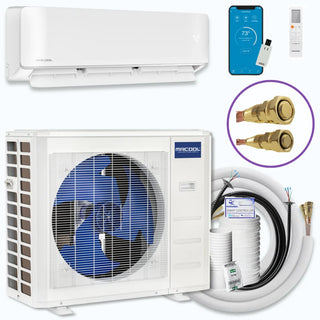

- True DIY® Installation: Includes an 11.5 ft pre-charged Quick Connect® line set that eliminates the need for vacuum pumps, manifold gauges, or refrigerant charging.
- High-Efficiency Inverter Technology: Variable-speed DC inverter compressor technology continuously adjusts performance to maintain comfort while minimizing energy use.
- Reliable Heating & Cooling: Designed to operate in outdoor temperatures ranging from -13°F to 122°F for dependable year-round performance.
- Quiet Indoor Comfort: Sleep mode operates as low as 18.5 dB(A), making this system ideal for bedrooms, offices, workshops, and living spaces.
- Smart HVAC Control: Compatible with the MRCOOL® Smart HVAC Controller®, Amazon Alexa, Google Assistant, and smartphone app control.
- Easy Maintenance: Washable filters and Gold Fin® condenser coating help simplify maintenance while protecting long-term durability.
- Enhanced Warranty Coverage: Includes a 5-year compressor warranty and 3-year parts warranty.
Product Specifications
| Model Number | EZPRO-18-HP-23011DE-O |
| Indoor Unit Model | EZPRO-18-HP-WMAH-230DE-O |
| Outdoor Unit Model | EZPRO-18-HP-C-23011DE-O |
| Cooling Capacity | 18,000 BTU/h |
| Heating Capacity | 18,000 BTU/h |
| Recommended Coverage Area | Up to 800 sq. ft. |
| SEER2 | 20.0 |
| EER2 | 9.8 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.6 |
| Voltage | 208-230V, 1 Phase, 60Hz |
| Indoor MCA | 3.0A |
| Indoor Max Fuse / Breaker | 15A |
| Outdoor MCA | 15.0A |
| Outdoor Max Fuse / Breaker | 20A |
| Included Line Set | 11.5 ft pre-charged Quick Connect® line set |
| Refrigerant | R-454B |
| Refrigerant Charge | 34.92 oz. |
| Piping Size | 1/4" liquid line / 1/2" gas line |
| Indoor Noise Level | 46.5 / 43 / 36.5 / 30 / 18.5 dB(A) |
| Outdoor Noise Level | 55 dB(A) |
| Indoor Dimensions | 38.23" W x 8.98" D x 12.64" H |
| Outdoor Dimensions | 30.12" W x 11.93" D x 21.85" H |
| Indoor Net / Gross Weight | 30.64 / 44.97 lbs. |
| Outdoor Net / Gross Weight | 62.61 / 82.23 lbs. |
| Warranty | 5-year compressor warranty / 3-year parts warranty |
| Certification | ETL Listed |
