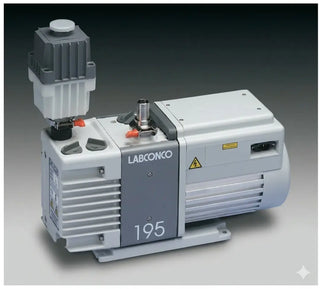

Rotary Vane Direct Drive Vacuum Pumps provide a reliable vacuum source for a variety of laboratory products including FreeZone Freeze Dryers, Protector Controlled Atmosphere Glove Boxes and CentriVap Centrifugal Concentrators. These rotary vane vacuum pumps are available with displacement capacities of 117 or 195 liters per minute (at 60 Hz).
Features
- Two-stage, oil-sealed pumps with sliding vane
- Switchable high-vacuum and high-throughput modes
- Three-position gas ballast (Closed, Low Flow, and High Flow)
- Enclosed, fan-cooled, single-phase electric motor drives pump
- Thermal overload protection with automatic restart
- Inlet valve prevents air and oil suckback in the event of power or oil loss
- Cast-aluminum housing
- Mounted on a base plate with rubber feet for stability
Product Specifications
| Max. Vacuum | 2 x 10-3 mBar |
| Horsepower | 0.75 hp |
| Amperage | 7.8 A |
| Includes | Pump, four each one liter bottles of vacuum pump oil and one exhaust filter with oil mist and odor filter elements. ON/OFF switch, power cord with plug for direct connection of pump to Labconco freeze dryers, one 12.7mm (1/2 in.) O.D. and one 19.1mm (3/4 in.) O.D. inlet adapter |
| Electrical Requirements | 115 V 50/60 Hz - 230V 50/60Hz - 230V 50/60Hz with IEC Plug |
| Dimensions (L x W x H) | 18.5 x 6.5 x 10.37 in. |
| Material | Cast Aluminum |
| Plug Type | North American / IEC Plug |
| Weight (English) | 65 lb. |
| Weight (Metric) | 29.5 kg |
| Flow Rate | 195 L/min. |
| For Use With | Freeze dry system |
| Frequency | 50/60 Hz |
| Overall Height (English) | 10.375 in. |
| Overall Height (Metric) | 26.4 cm |
| Overall Length (English) | 18.5 in. |
| Overall Length (Metric) | 47 cm |
| Overall Width (English) | 6.5 in. |
| Pump Type | Rotary Vane Vacuum Pump |
| Maximum Pressure | 1 atm |
| Voltage | 115 V - 230V |
