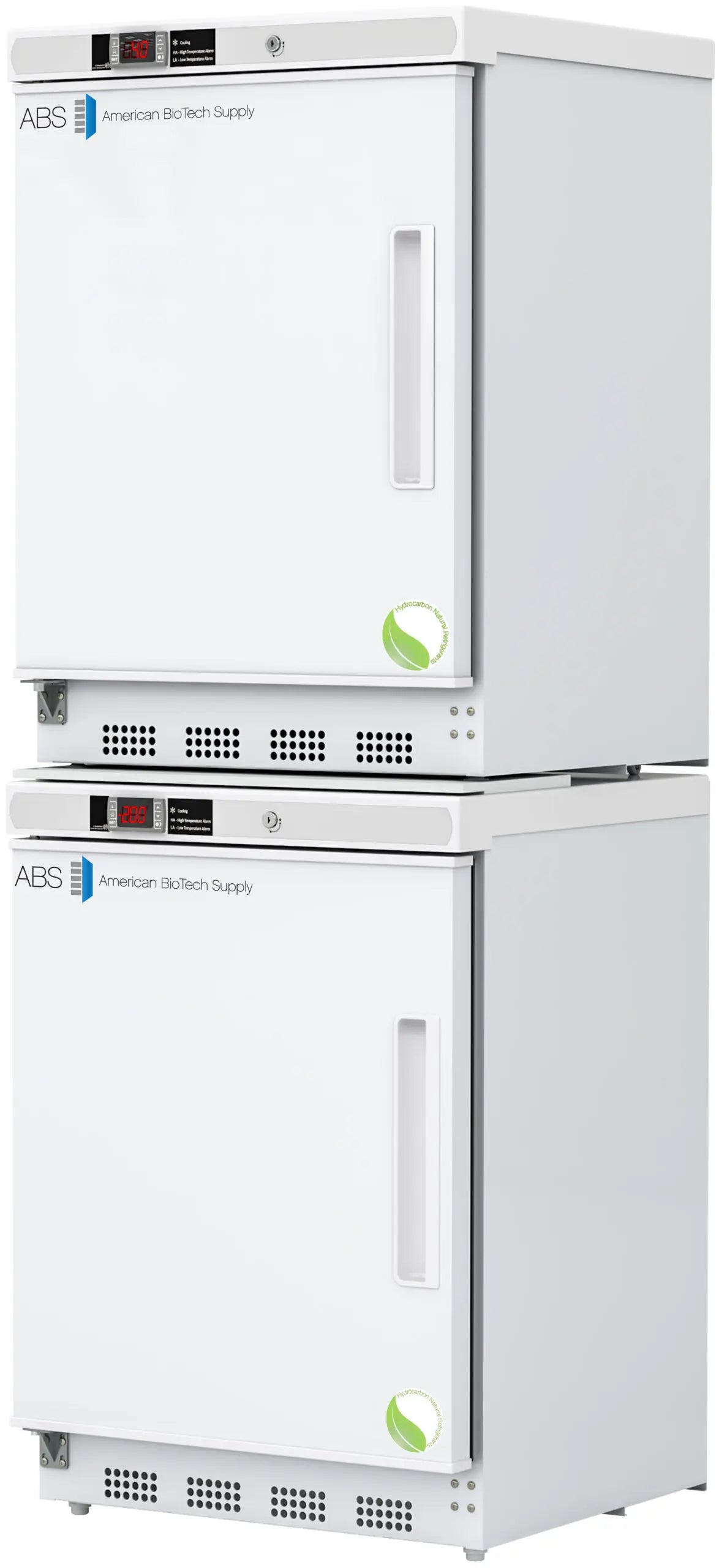

ABS ABT-HC-RFC9-LH 23.75" Upright Refrigerator / Freezer Combination, Left Hinged, 9 cu.ft., Ref. 1° to 10°C / Frz. -25° to -15°C Temperature Range, Cycle Refrigerator / Manual Freezer Defrost, 2 Solid Swing Doors, 5 Shelves
The Premier Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Dual Microprocessor Control: Independent advanced controllers accurately monitor and maintain dedicated thermal zones for both the refrigerator and freezer compartments.
-
Comprehensive Alarm & Monitoring System: Equipped with audible and visual high/low temperature alerts backed by a robust battery system to ensure continuous operation during power disruptions.
-
Dual-Probe Temperature Accuracy: Each compartment utilizes two specialized monitoring probes—one measuring ambient air temperature and one placed in a sample bottle—to precisely simulate product thermal state.
-
Forced-Draft Refrigerator Circulation: A high-efficiency forced-air fan system continuously circulates air inside the refrigerator to provide rapid pull-down and uniform temperature distribution.
-
Secure Keyed Entry: Heavy-duty physical keyed locks on both swinging solid doors restrict unauthorized access and protect high-value or sensitive medical inventory.
-
Eco-Friendly Thermodynamic System: Utilizes HFC-free, zero-emission R600a hydrocarbon refrigerant combined with advanced green foam insulation to minimize carbon footprint and environmental impact.
-

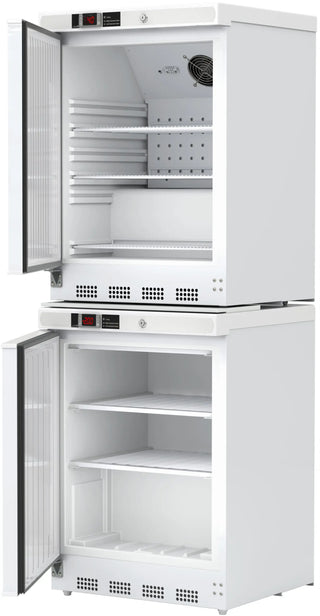

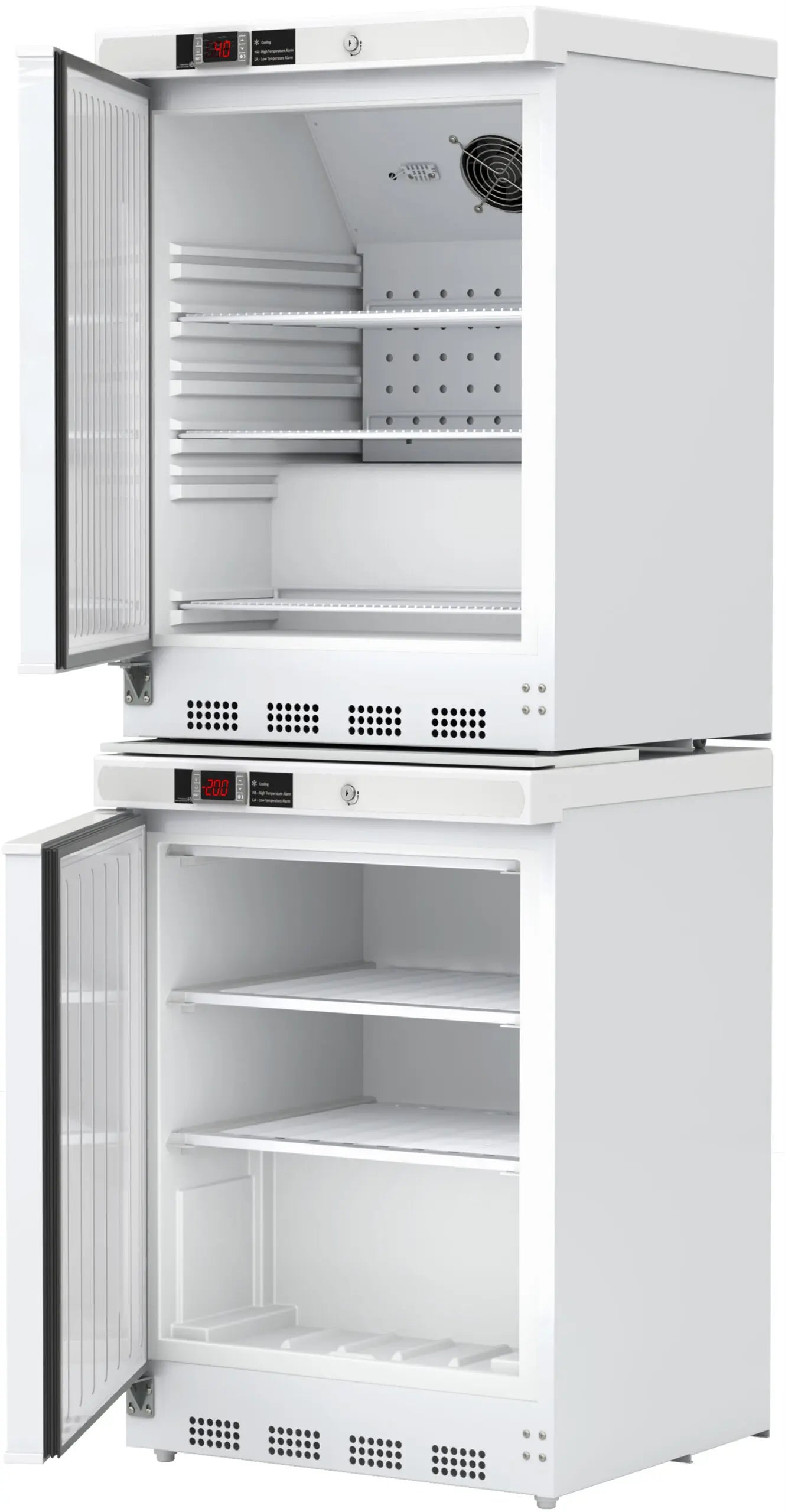

Optimized Storage with Guard Rails: Includes adjustable wire shelving featuring rear protective guard rails that prevent products from blocking the back-wall evaporator plate.
Product Specifications
| Model Number | ABT-HC-RFC9-LH |
| Product Type | Upright Laboratory Refrigerator / Freezer Combination |
| Total Capacity | 9.0 cu. ft. |
| Refrigerator Capacity | 4.6 cu. ft. |
| Freezer Capacity | 4.2 cu. ft. |
| Exterior Width | 23 ¾” |
| Exterior Depth | 24 ½” |
| Exterior Height | 66 ¾” |
| Adjustable Temp Range (Ref) | 1°C to 10°C |
| Adjustable Temp Range (Freezer) | -15°C to -25°C |
| Defrost Configuration | Cycle Defrost Refrigerator / Manual Defrost Freezer |
| Electrical Power System | 115V, 60 Hz (Note: Requires 2 separate outlets) |
| Amperage Draw | 1.74 Amps (Refrigerator) / 1.5 Amps (Freezer) |
| Compressor Rating | 1/8 HP (Both Refrigerator and Freezer) |
| Refrigerant Type | HFC-free, Eco-Friendly R600a Hydrocarbon |
| Certifications | UL / C-UL Listed |
| Door Configuration | 2 Solid Swing Doors (Left Hinged) |
| Standard Accessories Included | Leveling Legs, Factory Stacking Kit |
| Product Base Warranty | 2-Year Parts & Labor / Additional 3-Year Compressor Parts |
| Net Shipping Weight | 269 lbs. |
