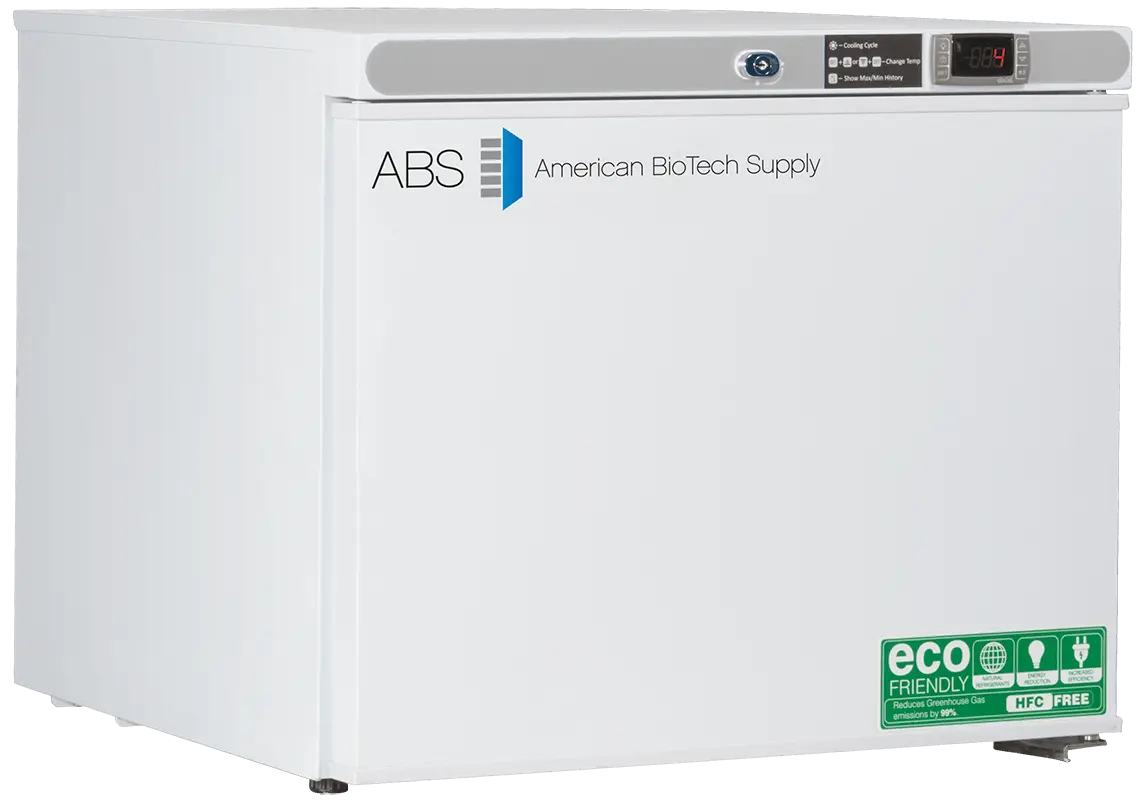

ABS ABT-HC-UCFS-0120A 23.75" Countertop Laboratory Freezer, 1.3 cu.ft., -25° to -15°C Temperature Range, Automatic Defrost, 1 Solid Swing Door, 2 Shelves, ENERGY STAR Certified, ADA Compliant
The Premier Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer
The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Advanced Microprocessor Control: Maintains precise thermal regulation with an integrated digital display and comprehensive audible/visual high/low alarms for ultimate specimen safety.
-
Dual Probe Tracking System: Equipped with two specialized probes (one in the air and one inside a sample bottle) to mirror actual product temperature rather than just ambient chamber conditions.
-
Automated Smart Defrosting: Features a scheduled auto-defrost cycle every 6 hours, maintaining peak cooling efficiency and eliminating manual maintenance disruptions.
-
Dispensing System Compatibility: Seamlessly integrates with major medical hardware including Pyxis®, Omnicell®, and AcuDose RX® setups for automated hospital inventory workflows.
-
Certified Compliance & Eco-Design: Meets rigorous industry standards as an ENERGY STAR Certified, UL/C-UL listed, and ADA-compliant unit utilizing eco-friendly, HFC-free R600a refrigerant.
-
Secure Specimen Protection: Built with a heavy-duty keyed door lock, solid swing door, and a positive-seal magnetic gasket to prevent thermal loss and unauthorized access.
Product Specifications
| Model | ABT-HC-UCFS-0120A |
| Product Type | Countertop Laboratory Freezer |
| Capacity | 1.3 cu. ft. |
| Door Type | 1 Solid Swing Door |
| Defrost Type | Automatic (Every 6 hours) |
| Operating Temperature Range | -15°C to -25°C |
| Max Air Temp (Empty Freezer) | 4.34°C |
| Max Air Temp (Loaded Freezer) | -2.89°C |
| Max Sample Temp (Empty Freezer) | -4.76°C |
| Max Sample Temp (Loaded Freezer) | -9.58°C |
| Controller Type | Microprocessor Temperature Controller |
| Display | Digital Temperature Display |
| Alarms | Audible and Visual High/Low Temperature Alarms |
| Alarm Contacts | Remote Alarm Contacts Equipped |
| Probes | 2 Probes (1 Air, 1 Sample Bottle) |
| Shelving | 2 Adjustable Shelves with Guard Rails + 1 Bottom Footed Shelf |
| Access Port | 3/8" Probe Access Port |
| Exterior Finish | Powder Coat Exterior |
| Insulation | High-Density Urethane Foam (Cabinet and Door) |
| Refrigerant Type | HFC-free R600a |
| Electrical Requirements | 115V, 60 Hz, 1 Amp, 1/8 HP |
| Exterior Dimensions (W x D x H) | 23 ¾” x 24” x 20 3/8″ |
| Ventilation Clearance Required | 4” Clearance on Sides and Back |
| Certifications & Compliance | UL/C-UL Listed, ENERGY STAR Certified, ADA Compliant |
| Hardware Compatibility | Pyxis®, Omnicell®, and AcuDose RX® Compatible |
| Shipping Weight | 106 lbs. |
| Warranty | 2 Years Parts and Labor + 3 Years Compressor Parts Only |
