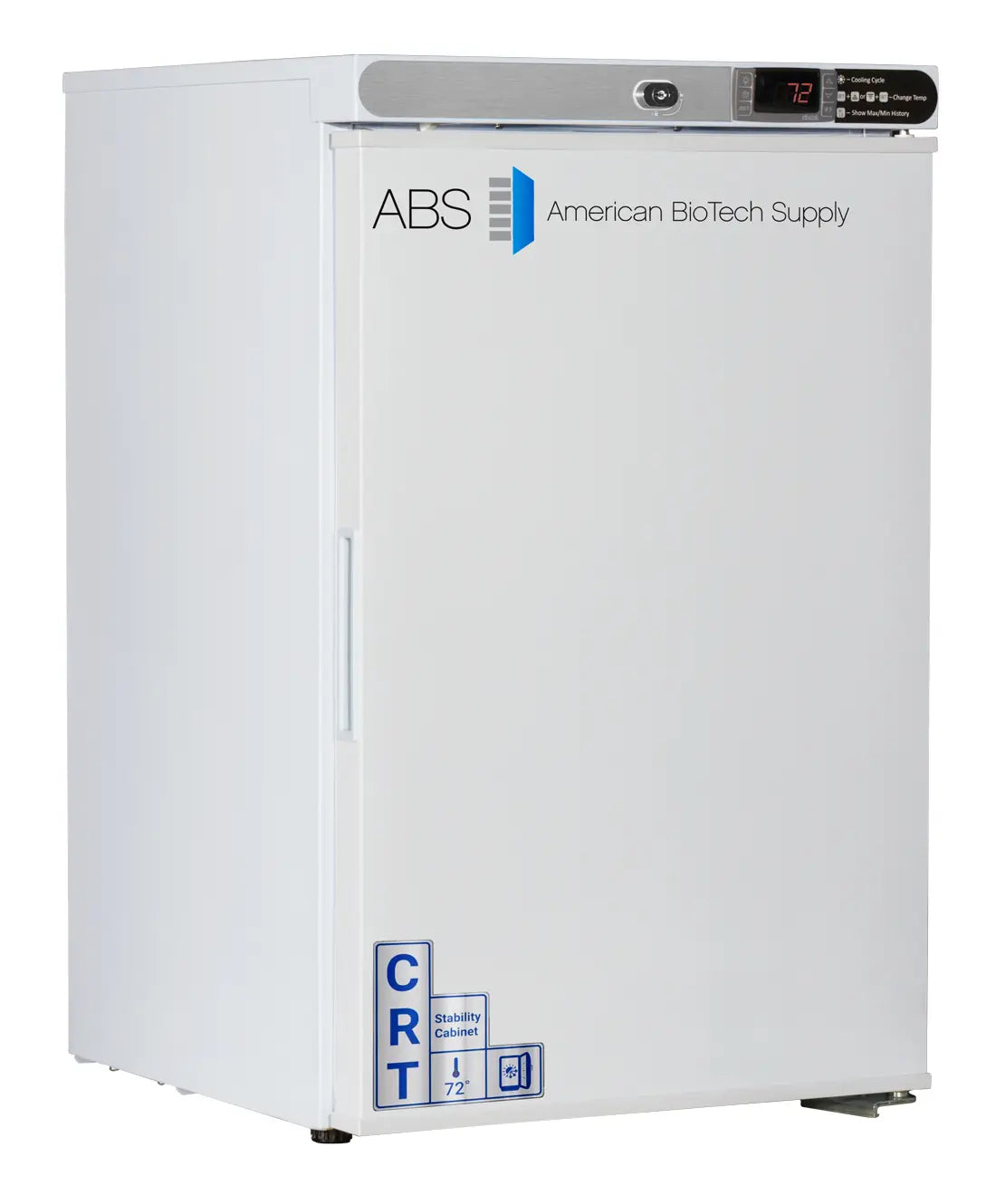

ABS CRT-ABT-HC-UCFS-0204 17.75" Undercounter Controlled Room Temperature Cabinet, 2.5 cu.ft., 20° to 25°C
ABS CRT-ABT-HC-UCFS-0204 17.75" Undercounter Controlled Room Temperature Cabinet, 2.5 cu.ft., 20° to 25°C
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
ABS CRT-ABT-HC-UCFS-0204 17.75" Undercounter Controlled Room Temperature Cabinet, 2.5 cu.ft., 20° to 25°C Temperature Range, Cycle Defrost, 1 Solid Swing Door, 4 Shelves, Freestanding, ADA Compliant, ENERGY STAR Certified
The Undercounter Controlled Room Temperature Cabinets feature a microprocessor temperature controller and display which allows for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Medications are security backed with an extensive package of audible and visual alarms.
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Precision Temperature Management: Features an advanced microprocessor controller and digital display that holds stable conditions between 68°F and 77°F, ensuring full compliance with medical storage standards.
-
Rapid Thermal Recovery: Utilizing a forced-draft positive air circulation system, the unit prevents warm air pockets and ensures immediate temperature stabilization following door openings.
-
NIST-Traceable Calibration: Ships with an official certificate of calibration from a NIST-traceable device, fulfilling strict hospital audit, pharmacy board, and CDC protocol requirements.
-
Comprehensive Asset Security: Outfitted with an extensive security package, including audible/visual high-low alarms, remote alarm contacts, and a factory-installed keyed door lock.
-
Dual-Probe System: Equipped with two independent monitoring probes (one submerged in a sample bottle to mimic actual product temperature, and one tracking air temperature) for absolute validation accuracy.
-
Eco-Friendly Performance: Engineered with sustainable, HFC-free R600a hydrocarbon refrigerant and high-density foam insulation to deliver maximum thermal efficiency with zero global warming potential.
Product Specifications
| Product Number | CRT-ABT-HC-UCFS-0204 |
| Capacity | 2.5 cu. ft. |
| Cabinet Type | Undercounter / Freestanding |
| Exterior Dimensions (W x D x H) | 17 3/4" x 19 1/2" x 28 7/8" |
| Operating Temperature Range | 68°F to 77°F (20°C to 25°C) |
| Defrost Type | Cycle Defrost |
| Electrical Requirements | 115V, 60 Hz, 0.90 Amps |
| Compressor Power | 1/8 HP |
| Refrigerant Type | HFC-Free Eco-Friendly R600a |
| Insulation Type | Hydrocarbon Foam Insulation |
| Temperature Controller | Microprocessor Temperature Controller |
| Display Type | Digital Temperature Display |
| Alarms & Monitoring | Audible/Visual High & Low Temp Alarms, Remote Contacts |
| Probes Included | 2 Probes (1 in Air, 1 in Sample Bottle) |
| Calibration & Certification | NIST Traceable Certificate Included |
| Compliance Standards | ADA Compliant, UL/C-UL Listed |
| Shelves | 4 Adjustable Wire Shelves (Back Guard Rails) |
| Ventilation Requirements | 4" Clearance Required on Sides and Back |
| Shipping Weight | 85 lbs. |
