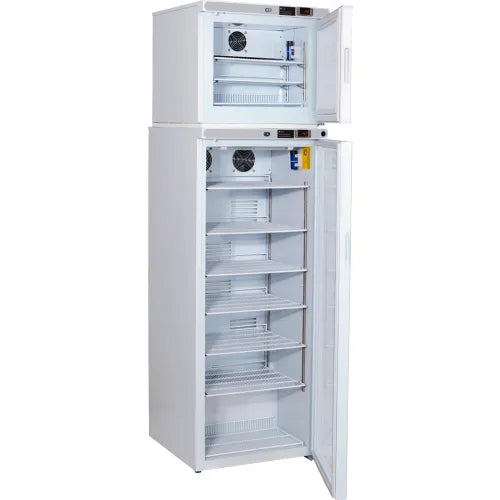

ABS PH-ABT-HC-RFC12A 23.625" Upright Pharmacy Refrigerator / Freezer Combination, 12 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Auto Defrost Freezer / Cycle Defrost Refrigerator, 2 Solid Swing Doors, 6 Adjustable Refrigerator and 2 Adjustable Freezer Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model requires 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
Dual Microprocessor Climate Control: Independent digital temperature management systems continuously verify and regulate each chamber, allowing the refrigerator to tightly lock between 36°F to 46°F (2°C to 8°C) and the freezer between 5°F to -13°F (-15°C to -25°C).
-
Comprehensive Smart Alarm Package: Equipped with active visual and audible high/low temperature indicators alongside remote alarm contacts, ensuring clinical staff are instantly alerted to any thermal deviations.
-
Integrated Battery Backup Support: The advanced digital temperature displays are reinforced with an internal battery framework that maintains strict data logging, sample probe monitoring, and alarm functions during emergency power outages.
-
Forced-Draft Air Uniformity: An interior fan-driven circulation system guarantees excellent internal uniformity across all shelves, mitigating localized hotspots and accelerating recovery immediately following prolonged door openings.
-
Eco-Friendly Hydrocarbon Technology: Utilizes next-generation R600a natural refrigerant to slash energy consumption and global warming potential, completely satisfying standard UL, ASHRAE, and EPA/SNAP mandates.
-
Optimized Airflow Shelving Architecture: Features six adjustable refrigerator shelves and two freezer shelves fitted with integrated rear guard rails to systematically prevent product placement from blocking the back wall ventilation.
-
NIST Traceable Calibration Certified: Every unit ships fully calibrated using advanced NIST traceable devices, including an official calibration certificate to fulfill strict state immunization and clinical audit protocols.
Product Specifications
| Product Number | PH-ABT-HC-RFC12A |
| Total Capacity | 12 Cu. Ft. (10.5 Ref. / 1.3 Freezer) |
| Exterior Dimensions (W x D x H) | 23 ¾” x 26 ½” x 80 ¼” |
| Operating Temp Range (Refrigerator) | 36°F to 46°F (2°C to 8°C) |
| Operating Temp Range (Freezer) | 5°F to -13°F (-15°C to -25°C) |
| Defrost Type | Cycle Defrost (Ref.) / Auto Defrost (Freezer) |
| Temperature Controller | Microprocessor with Digital Display & Battery Backup |
| Alarms | Audible & Visual High/Low Temp Alarms, Remote Contacts |
| Refrigerant Type | HFC-Free Eco-Friendly Hydrocarbon (R600a) |
| Shelving (Refrigerator) | 6 Adjustable Shelves with Back Guard Rails |
| Shelving (Freezer) | 2 Adjustable Shelves with Back Guard Rails + 1 Bottom Footed |
| Electrical Specifications | 115V, 60Hz, 2.3 Amps (Ref.) / 1 Amp (Freezer) |
| Compressor Horsepower | 1/3 HP (Ref.) / 1/8 HP (Freezer) |
| Certifications & Compliance | UL/C-UL Listed, EPA/SNAP Mandates, ASHRAE Compliant |
| Security | Keyed Door Locks, Vaccine Power Cord Warning Label |
| Included Accessories | Stacking Kit, Leveling Legs, Toolkit & Temp Logs |
| Shipping Weight | 289 lbs. |
| Warranty | 2 Year Parts & Labor + 3 Year Compressor Parts |
