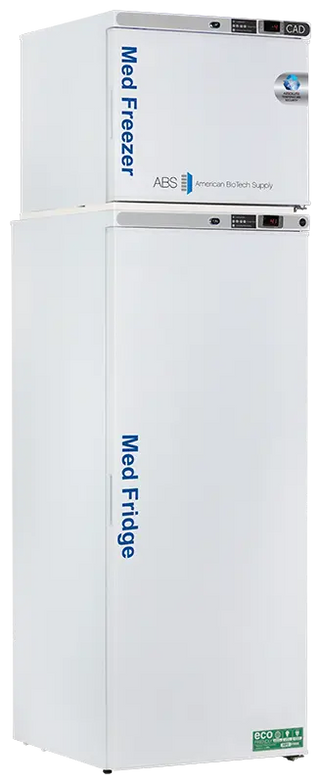

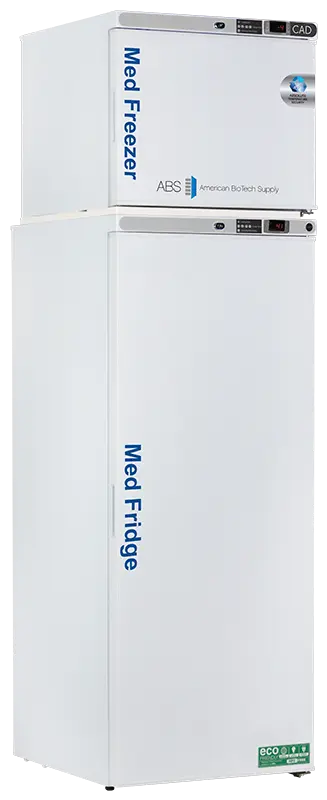

ABS PH-ABT-HC-RFC12A-CAD 23.75" Upright Pharmacy/Vaccine Refrigerator/Freezer, 12 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Cycle Defrost Refrigerator/Auto Defrost Freezer, 2 Solid Swing Doors, 6 Shelves
The PH-ABT-HC-RFC12A-CAD is a professional-grade storage solution engineered to meet the stringent demands of modern pharmacies, clinics, and laboratories. This upright combination unit provides a spacious 12 cubic foot capacity, split between a high-precision refrigerator and a high-performance freezer, both housed within a compact footprint to maximize facility space.
Equipped with a sophisticated microprocessor temperature controller and digital displays, it ensures that sensitive vaccines and medications are maintained within tight thermal parameters. The unit features advanced safety mechanisms, including audible and visual high/low temperature alarms and remote alarm contacts for 24/7 monitoring peace of mind. Its dual-door design minimizes cold air loss during access, while the forced-draft circulation in the refrigerator compartment guarantees uniform temperature distribution throughout all shelves.
Built for reliability and compliance, each unit arrives with a NIST-traceable certificate of calibration to satisfy regulatory audit requirements immediately upon installation. With HFC-free refrigerants and a robust five-year compressor warranty, this system represents a sustainable and long-term investment for any healthcare provider prioritizing cold chain integrity.
Features
-
Precision Temperature Control: Dual microprocessor controllers with digital displays and sample-simulated probes provide laboratory-grade thermal stability.
-
Regulatory Compliance Ready: Includes a 3-year NIST-traceable certificate of calibration and a freestanding thermometer to meet CDC and VFC storage guidelines.
-
Comprehensive Alarm System: Integrated audible and visual alerts for temperature excursions, complemented by remote contacts for external monitoring systems.
-
Optimized Airflow Design: Features forced-draft circulation in the refrigerator and "guard rail" shelving to prevent product from blocking essential internal airflow.
-
Secure & Accessible Storage: Equipped with keyed door locks for security and two 3/8" access ports for external monitoring probes or sensors.
-
Eco-Friendly Performance: Utilizes HFC-free R600a hydrocarbon refrigerants and high-density foam insulation for superior energy efficiency and environmental safety.
-
Maintenance-Free Defrosting: Employs a controlled auto-defrost cycle in the freezer and a cycle defrost in the refrigerator to prevent ice buildup without compromising internal temperatures.
Product Specifications
| Product Name | ABS® Pharmaceutical Refrigerator/Freezer |
| Model Number | PH-ABT-HC-RFC12A-CAD |
| Type | Upright Combo Unit |
| Capacity | 12 cu.ft. |
| Exterior Dimensions (W x D x H) | 23 3/4”W x 26 1/2”D x 80 1/4”H |
| Refrigerator Temp Range | 36°F to 46°F (2°C to 8°C) |
| Freezer Temp Range | 5°F to -13°F (-15°C to -25°C) |
| Defrost Method (Ref/Frz) | Cycle Defrost / Controlled Auto Defrost |
| Electrical Requirements | 115V, 60 Hz (Requires 2 Outlets) |
| Power Usage (Amps) | 2.3A (Ref) / 1A (Frz) |
| Compressor Power (HP) | 1/3 HP (Ref) / 1/8 HP (Frz) |
| Certifications | UL/C-UL Listed, NIST Traceable Certificate Included |
| Shelving | 6 Adjustable (Ref) / 2 Adjustable (Frz) |
| Door Type | 2 Solid Swing Doors (Keyed Locks) |
| Refrigerant | HFC-free R600a |
| Shipping Weight | 289 lbs |
