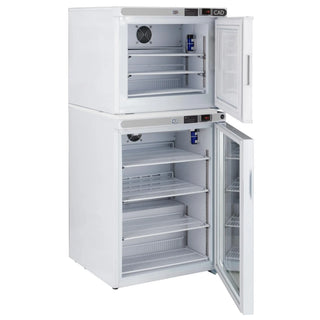

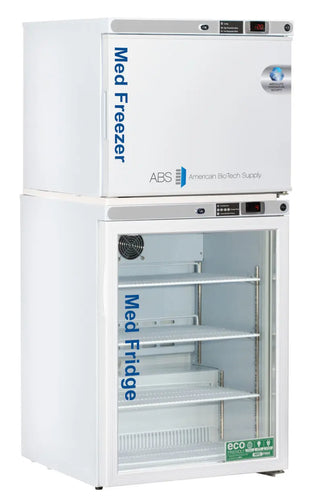

ABS PH-ABT-HC-RFC7A-CAD 23.75" Premier Pharmacy/Vaccine Upright Refrigerator / Freezer Combination, 7 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Auto Defrost Freezer / Cycle Defrost Refrigerator, 2 Swing Doors (1 Glass, 1 Solid), 3 Shelves

The PH-ABT-HC-RFC7A-CAD is a premier 7 cubic foot medical-grade refrigerator and freezer combination engineered specifically to meet the stringent demands of pharmacy, vaccine, and laboratory cold storage. This dual-zone upright unit is fully compatible with advanced workflow systems like Pyxis®, Omnicell®, and AcuDose Rx®, ensuring seamless integration into modern clinical settings.

Featuring an innovative 2-door design with a high-visibility glass door for the refrigerator compartment and a fully insulated solid door for the freezer, it dramatically reduces thermal exposure during frequent door openings. Equipped with an advanced microprocessor temperature controller and a digital display paired with a sample simulated probe, the unit provides ultra-precise internal temperature monitoring for both chambers independently.

Safety is prioritized through state-of-the-art audible and visual high/low temperature alarms, complemented by remote alarm contacts that instantly alert personnel to any critical thermal fluctuations. Additionally, the unit incorporates a patented "Controlled Auto Defrost" (CAD) technology in the freezer compartment, delivering the convenience of automatic maintenance while completely eliminating the risk of accidental vaccine spoilage or freezing.

Utilizing eco-friendly, HFC-free R600a hydrocarbon refrigerant, this UL/C-UL listed combination system provides a highly efficient, compact, and compliant cooling solution backed by a comprehensive five-year compressor parts warranty.

Features

• Patented Controlled Auto Defrost (CAD): The proprietary CAD technology provides the seamless convenience of an auto-defrost design while ensuring that sensitive vaccines and biologics remain strictly at consistent, stable temperatures below 5°F (-15°C).

• Independent Dual-Chamber Precision: Equipped with dual microprocessor temperature controllers and independent digital displays utilizing simulated product probes to maintain tight tolerances from 36°F to 46°F (2°C to 8°C) for the refrigerator and 5°F to -13°F (-15°C to -25°C) for the freezer.

• CDC & VFC Compliant Monitoring: Includes a freestanding thermometer with a 3-year NIST traceable certificate of calibration, min/max thermal memory tracking, and multi-point audible/visual high-low alarms to meet strict public health storage guidelines.

• Advanced Anti-Block Shelf Guard Rails: Features 6 adjustable wire shelves in the refrigerator and 2 in the freezer, uniquely engineered with a protective rear guard rail that prevents inventory from being pushed against the back wall to preserve critical air circulation.

• Forced-Draft Airflow & Isolation Ports: Utilizes a fan-driven, forced-draft circulation system in the refrigerator for rapid temperature recovery, accompanied by two 3/8" dedicated probe access ports for external data logger monitoring.

• Pyxis & Hospital Workflow Compatibility: Fully optimized and electronically pre-configured for automated dispensing compatibility with industry-standard Pyxis®, Omnicell®, and AcuDose Rx® hospital management systems.

Product Specifications
