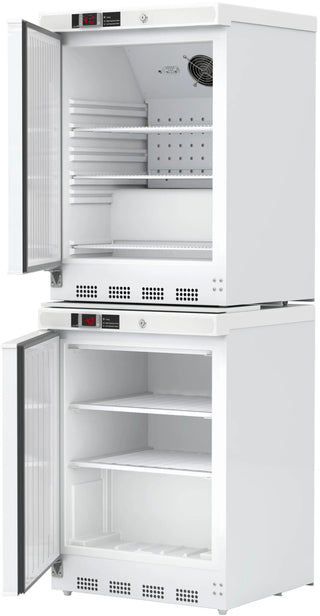

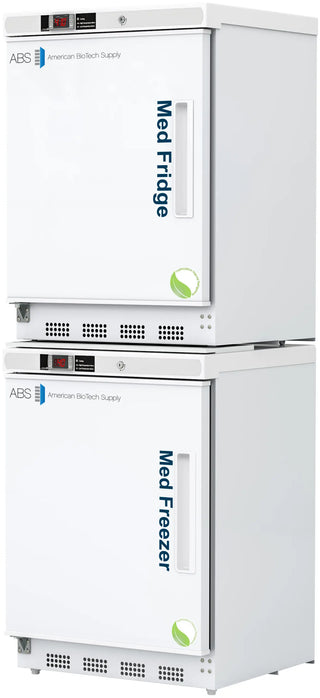

ABS PH-ABT-HC-RFC9-LH 23.75" Upright Pharmacy Refrigerator / Freezer Combination, 9 cu.ft., Ref. 2° to 8°C / Frz. -25° to -15°C Temperature Range, Cycle Refrigerator / Manual Freezer Defrost, 2 Solid Swing Doors Left Hinged, 5 Shelves
The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY
All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.
This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
-
CDC/VFC Compliant Temperature Monitoring: Includes an advanced TMD with a 3-year NIST-traceable certificate of calibration, utilizing a "buffered" probe immersed in product-simulated solution to monitor true sample temperatures.
-
Dual Microprocessor Precision: Refrigerator and freezer chambers operate on completely isolated microprocessor systems, providing precise temperature tracking and rapid stabilization.
-
Comprehensive Alarm & Alert Network: Equipped with independent audible and visual high/low temperature alerts, power cord warning labels, and remote alarm contacts for 24/7 monitoring integration.
-
Advanced Airflow & Guard Rails: The refrigerator utilizes a forced-draft air circulation system paired with rear guard rails to maximize uniform cooling and prevent product obstruction against the back wall.
-
Medical-Grade Security and Access: Features independent keyed door locks for controlled substance safety, heavy-duty magnetic gaskets for positive tight sealing, and dual 3/8" probe access ports.
-
Automated Dispensing Integration: Architected to seamlessly integrate into clinical hospital networks, offering native hardware compatibility with Pyxis®, Omnicell®, and AcuDose Rx® workflows.
-
Industrial Eco-Friendly Architecture: Built with high-density foam insulation, white powder-coated exterior durability, and zero-emission HFC-free R600a refrigerant.
Product Specifications
| Model Number | PH-ABT-HC-RFC9-LH |
| Product Type | Upright Pharmacy Refrigerator / Freezer Combination |
| Total Capacity | 9.0 cu. ft. |
| Refrigerator Capacity | 4.6 cu. ft. |
| Freezer Capacity | 4.2 cu. ft. |
| Exterior Dimensions (W x D x H) | 23 ¾” x 24 ½” x 66 ¾” |
| Adjustable Temp Range (Ref) | 36°F to 46°F (2°C to 8°C) |
| Adjustable Temp Range (Freezer) | 5°F to -13°F (-15°C to -25°C) |
| Defrost Configuration | Cycle Defrost Refrigerator / Manual Defrost Freezer |
| Electrical Power System | 115V, 60 Hz (Note: Requires 2 separate outlets) |
| Amperage Draw | 1.74 Amps (Refrigerator) / 1.5 Amps (Freezer) |
| Compressor Rating | 1/8 HP (Both Refrigerator and Freezer) |
| Refrigerant Type | HFC-free, Eco-Friendly R600a Hydrocarbon |
| Certifications | UL / C-UL Listed, NIST Traceable Calibrated |
| Compliance Standard | Fully complies with current CDC & VFC guidelines |
| Door Architecture | 2 Solid Swing Doors (Left Hinged Configuration) |
| Internal Shelving | 2 Adj. & 1 Fixed (Ref) / 2 Fixed Shelves with Guards (Freezer) |
| Data & Alert Support | Battery Back-up for Monitoring & Alarms, Remote Contacts |
| Shipping Weight | 269 lbs. |
| Product Warranty | 2 Years Parts & Labor; 3 Additional Years Compressor Parts |
