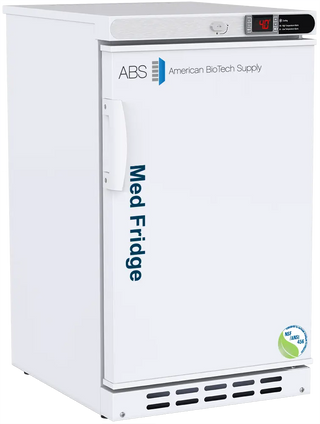

ABS PH-ABT-NSF-UCBI-0204 17.75" Undercounter Vaccine Refrigerator w/ NSF/ANSI 456, Right or Left Hinged, 2.5 cu.ft., 1° to 10°C Temperature Range, Cycle Defrost, 1 Solid Swing Door, 4 Shelves
These premier built-in undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.
The solid door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.
Features
-
NSF/ANSI 456 Certified Compliance: Fully certified to meet strict vaccine storage protocols, ensuring your inventory remains completely safe and compliant with state and VFC audits.
-
Advanced Microprocessor Control: Features a parametric digital LED display with 0.1°C resolution to track real-time conditions with extreme stability and pinpoint accuracy.
-
Forced-Air Uniformity: Utilizes high-performance forced-air technology to deliver a uniform temperature variance of ±1.2°C and fast temperature recovery after frequent door openings.
-
Seamless Built-In Design: Engineered with a compact front-breathing design that allows it to easily fit under standard counters or inside tight pharmacy workstations.
-
Eco-Friendly Efficiency: Runs on HFC-free hydrocarbon refrigerant and high-density urethane foam insulation to provide superior thermal protection and low daily power consumption.
-
Comprehensive Alarm Systems: Includes state-switching remote alarm contacts and digital indicators to warn staff immediately during unexpected high or low temperature deviations.
-
Clinical System Compatibility: Fully compatible with major hospital inventory management systems such as Pyxis®, Omnicell®, and AcuDose Rx® for streamlined tracking.
Product Specifications
| Product Number | PH-ABT-NSF-UCBI-0204 / PH-ABT-NSF-UCBI-0204-LH |
| Storage Capacity | 2.5 Cu. Ft. Gross Volume |
| Exterior Dimensions (W x D x H) | 17 3/4" x 19 1/2" x 30 3/4" |
| Temperature Range | 1°C to 10°C |
| Temperature Uniformity | +/- 1.1°C |
| Temperature Stability | +/- 0.7°C |
| Door Type | One Swing Solid Door, Self-Closing, Magnetic Sealed Gasket, Keyed Lock |
| Door Hinge | Right Hinged (-0204) / Left Hinged (-0204-LH) |

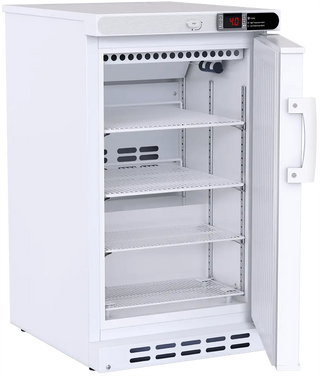

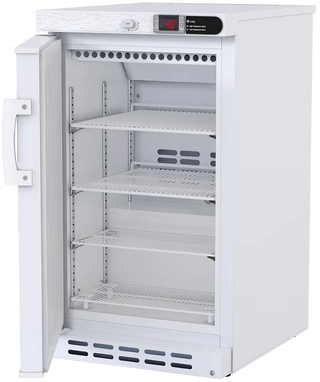

| Shelving | 4 Shelves (3 Adjustable / 1 Fixed) with Guard Rail on Back |
| Airflow Management | Forced Air Technology (Patent Pending) |
| Insulation | Foamed-in-place with EPA Compliant High Density Urethane Foam |
| Exterior Material | White Powder Coated Steel |
| Controller Technology | Parametric, Microprocessor, LED Display with 0.1°C Resolution |
| Alarms | High / Low Temperature (NSF/ANSI 456 Compliant), Remote Alarm Contacts |
| Certifications & Listings | Certified to NSF/ANSI 456 Standard for Vaccine Storage, UL, C-UL, ETL, C-ETL Listed, Certified to UL471 Standard |
| Energy Consumption | 0.58 kWh/day |
| Product Weight | 72 lbs. |
| Shipping Weight | 88 lbs. |
