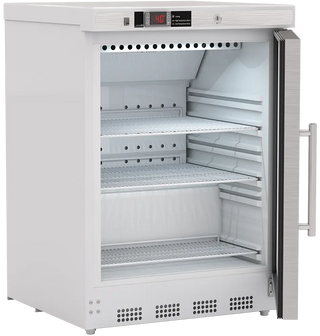

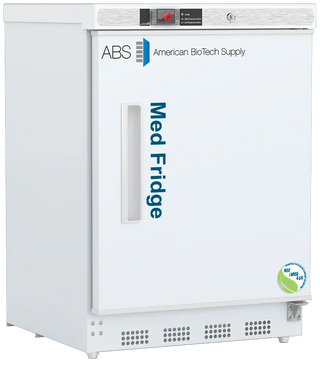

ABS PH-ABT-NSF-UCBI-0404 23.875" Undercounter Vaccine Refrigerator with NSF/ANSI 456, 4.6 cu.ft., 1° to 10°C Temperature Range, Cycle Defrost, 1 Solid Swing Door, 3 Shelves, Built-in
These premier built-in undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.
The solid door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.
Features
-
NSF/ANSI 456 Certified: Independently tested and certified to guarantee absolute temperature uniformity across all shelves, fully aligning with strict CDC and VFC vaccine storage protocols.
-
Patent-Pending Forced Air Flow: Advanced airflow management eliminates internal temperature stratification, offering an impressive cabinet uniformity of +/- 0.8°C.
-
Smart Access Control: Designed with built-in security features, including a keyed mechanical lock and full compatibility with institutional systems such as Pyxis®, Omnicell®, and AcuDose Rx®.
-
Comprehensive Alarm Systems: Outfitted with audible and visual high/low temperature alarms and remote alarm contacts compliant with safety regulations to prevent product waste.
-
Eco-Friendly Performance: Engineered with hydrocarbon safety features and high-density EPA-compliant insulation, drawing only 1.15 kWh/day for sustainable, energy-efficient operation.
-
NIST-Traceable Calibration: Includes a certified, factory-calibrated temperature monitor device to simplify compliance audits and safeguard internal tracking.
Product Specifications
| Model Number | PH-ABT-NSF-UCBI-0404 |
| Product Type | Undercounter Refrigerator (Built-In) |
| Storage Capacity | 4.6 cu. ft. gross volume |
| Exterior Dimensions (W x D x H) | 23 7/8″ x 24 3/8″ x 33 3/8″ |
| Temperature Setpoint Range | 1°C to 10°C (Optimized for 2°C to 8°C Vaccine Storage) |
| Temperature Uniformity | +/- 0.8°C |
| Agency Listings & Certifications | NSF/ANSI 456, UL, C-UL, ETL, C-ETL listed, UL471 certified |
| Product Weight | 100 lbs. |
| Shipping Weight | 140 lbs. |
| Door Styling & Security | Single Solid Swing Door, Right Hinged, Keyed Lock |
| Defrost System | Cycle Defrost |
| Electrical Requirements | 110-120V AC, 1.74 Amps (Minimum 15 A facility line) |
| Power Plug Type | NEMA 5-15 Plug with 8-10 ft Vaccine Storage Warning Cord |
| Energy Consumption | 1.15 kWh/day |
| Internal Shelving | 3 Shelves (2 Adjustable / 1 Fixed) with Rear Guard Rails |
| Operational Environment | Indoor use only, +18°C to +26°C, <70% RH |
| Access Port | Rear wall port (1/2″ diameter) |
| Warranty | 2 Years Parts & Labor / 5 Years Compressor Warranty |
