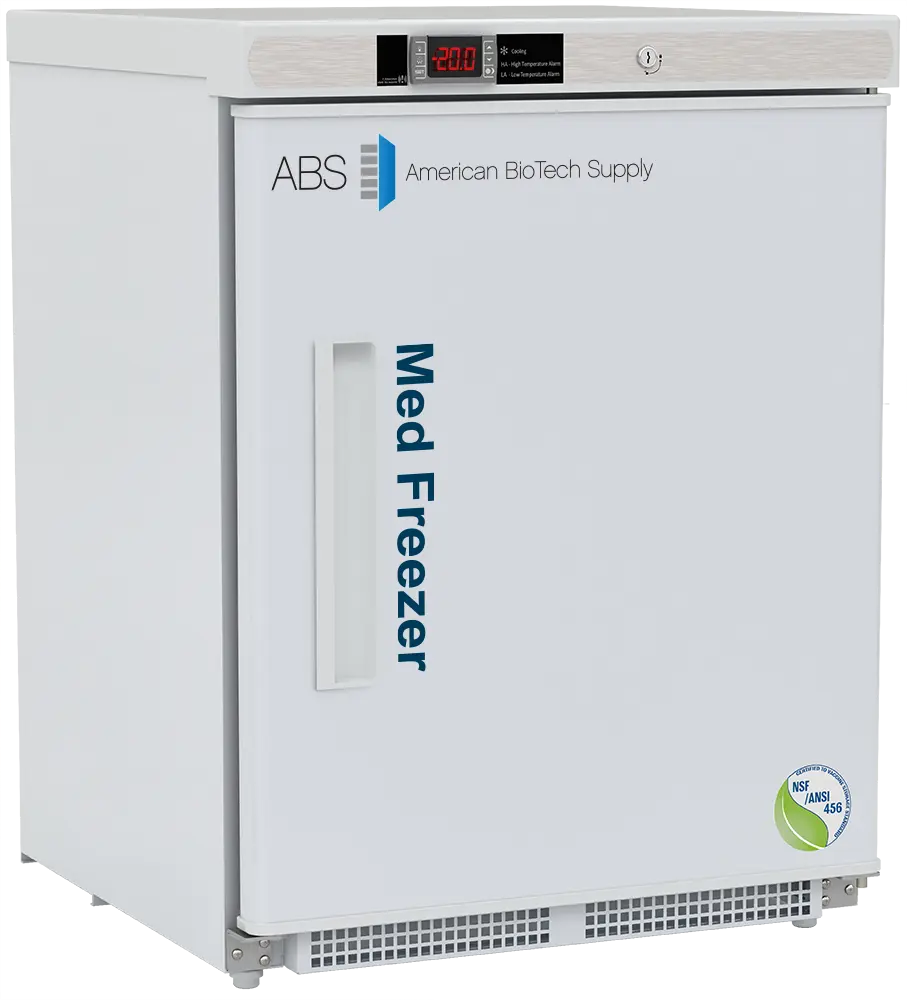

ABS PH-ABT-NSF-UCBI-0420-ADA 23.75" Undercounter Vaccine Freezer, 4.2 cu.ft., -25° to -15°C Temperature Range, Manual Defrost, 1 Solid Swing Door, 2 Shelves, NSF/ANSI 456 and ENERGY STAR Certified

These premier freestanding countertop freezers are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Freezers protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These models utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

Features

  • NSF/ANSI 456 Certified: Guaranteed to meet the highest industry standards for thermal performance in vaccine storage applications.

  • ADA Compliant Design: Features a low-profile exterior height suitable for installation under 34-inch ADA-compliant countertops.

  • Superior Thermal Stability: Maintains a stable interior environment with a variance of only +/- 2.1°C over the testing period.

  • Energy Efficient Operation: Consumes only 0.97 kWh/day, exceeding Energy Star requirements for specialized medical equipment.

  • Secure Access Control: Equipped with a keyed door lock and compatibility with Pyxis®, Omnicell®, and Acudose RX® systems.

  • Optimized Recovery: Rapidly restores temperatures to under -15°C in just 8.2 minutes after a full 60-second door opening.

  • Technical Precision: Includes a parametric microprocessor controller with an LED display and 0.1°C resolution for exact monitoring.

Product Specifications

Model Number PH-ABT-NSF-UCBI-0420-ADA
Description ABS® Pharmaceutical Undercounter Manual Defrost Freezer
Storage Capacity 4.2 cu. ft. Gross Volume
Temperature Setpoint Range -15°C to -28°C
Uniformity (Cabinet Air) +/- 2.6°C
Stability (Cabinet Air) +/- 2.1°C
Exterior Dimensions (W x D x H) 23 3/4" x 24 1/2" x 31 15/16"
ADA Compliant Yes (ADA heights compatible)
Defrost Method Manual Defrost
Door Type Single Solid Swing Door (Self-closing, Right Hinged)
Energy Consumption 0.97 kWh/day
Average Heat Rejection 1.97 kWh/day (224 BTU/h)
Electrical Requirements 115V, 60Hz, 1.5 Amps
Plug Type NEMA 5-15
Certifications NSF/ANSI 456, Energy Star, ADA, UL471
Product Weight 100 lbs.
Shipping Weight 132 lbs.
Warranty 2 Years Parts/Labor, 5 Years Compressor
