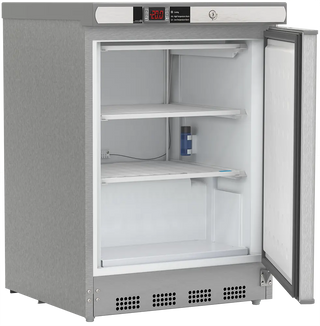

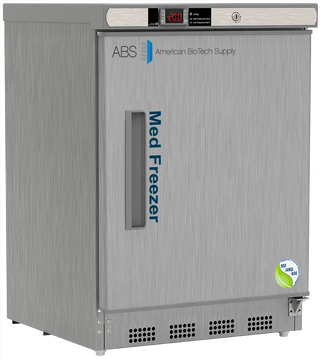

ABS PH-ABT-NSF-UCBI-0420SS 23.75" Stainless Steel Undercounter Vaccine Freezer with NSF/ANSI 456, 4.2 cu.ft., -28° to -15°C Temperature Range, Manual Defrost, 1 Solid Swing Door, 2 Shelves, Built-in
These premier freestanding countertop freezers are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Freezers protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.
These models utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.
Features
-
NSF/ANSI 456 Certified Thermal Performance: Fully compliant with strict vaccine storage standards, guaranteeing uniform temperature profiles across all testing protocols to safeguard sensitive biological materials.
-
Microprocessor Parametric Controller: Equipped with an intuitive LED display featuring 0.1°C resolution, maintaining strict setpoint ranges from -15°C to -28°C for superior clinical accuracy.
-
Built-In Stainless Steel Architecture: Engineered with a durable stainless steel exterior and foamed-in-place high-density urethane insulation, optimized to fit seamlessly into undercounter cabinetry.
-
Advanced Access Control Compatibility: Ready for institutional security integration, designed to support premium PYXIS®, Omnicell®, and AcuDose Rx® hospital locking and monitoring systems.
-
Rapid Door-Opening Temperature Recovery: Demonstrates outstanding thermal resilience, recovering all probes to safe holding zones below -15°C within 8.2 minutes after a prolonged 60-second door opening.
-
Comprehensive Clinical Alarm System: Features dual visual and audible indicators for high/low temperature breaches, fully compliant with international NSF/ANSI 456 protection requirements.
Product Specifications
| Model Number | PH-ABT-NSF-UCBI-0420SS |
| Storage Capacity | 4.2 Cu. Ft. Gross Volume |
| Exterior Dimensions (W x D x H) | 23 3/4” x 24 1/2” x 33 3/8” |
| Temperature Setpoint Range | -15°C to -28°C |
| Cabinet Uniformity | +/- 2.6°C |
| Cabinet Stability | +/- 2.1°C |
| Agency Certifications | NSF/ANSI 456, UL, C-UL, ETL, C-ETL Listed |
| Electrical Safety Standard | Certified to UL471 Standard |
| Operational Environment | Indoor use only (+18°C to +26°C), <70% RH |
| Door Type | One swing solid door, self-closing, right hinged |
| Security & Access | Keyed lock; PYXIS®, Omnicell®, AcuDose Rx® compatible |
| Insulation | EPA-compliant high-density urethane foamed-in-place |
| Refrigerant Type | Hydrocarbon Refrigerant Safety (EPA SNAP compliant) |
| Energy Consumption | 0.97 kWh/day |
| Power Supply / Cord | 110-120V AC, 15 A (Min), NEMA 5-15 plug, 8-10 ft cord |
| Calibration | Calibrated using a NIST traceable device (Cert included) |
| Shelves / Mounting | 2 fixed shelves; Low-profile roller wheels & leveling legs |
| Product Weight / Shipping Weight | 100 lbs / 132 lbs |
