| Overview | |
|---|---|
| Product Name | Body-Solid G5B Multi-Station Gym |
| Product Model | G5B |
| Brand / Product Line | Body-Solid G-Series Multi-Gyms |
| Product Category | Single-Stack Multi-Station Home Gym |
| Commercial Rating | In-Home Lifetime / Light Commercial Rated |
| Weight Stack Configuration | 210.00 lbs. (95.25 kg) Selectorized Stack |
| Optional Stack Upgrade | Upgradable to 260.00 lbs. (117.93 kg) Stack |
| Frame Construction | 12-Gauge Steel Tubing |
| Frame Finish | Scratch-Resistant Black Powder Coat Finish |
| Cables & Pulleys | 2,200 lb. Aircraft Cable; 4½" Fiberglass Nylon Pulleys |
| Ergonomics | Gas-Assisted Telescoping Seat Post & DuraFirm™ Lumbar Support Pads |
| Included Accessories | Lat Bar, Straight Bar, Ankle Strap, Ab/Triceps Strap, Total Body Workout™ DVD, Full-Size Exercise Chart |
| Warranty (In-Home Lifetime) | Frame & Welds: Lifetime; Bushings & Hardware: Lifetime; Pads, Cables, & Grips: Lifetime |
| Warranty (Light Commercial) | Frame & Welds: Lifetime; Bushings & Hardware: 3 Years; Pads, Cables, & Grips: 1 Year |
| Station Breakdown | |
| Ergo-Press Arm | Multi-Grip Chest Press, Incline Press, Chest-Supported Mid-Row, Back Hyperextension |
| Perfect Pec™ Station | Unilateral & Bilateral Pec Flys, Rear Deltoid Flys |
| High Pulley Station | Lat Pulldowns, Triceps Pressdowns |
| Mid Pulley Station | Resistance Ab Crunches, Overhead Triceps Extensions, Lateral Flys |
| Low Pulley Station | Seated Rows (with Flip-Up Footplate), Biceps Curls, Upright Rows, Oblique Bends, Leg Adduction/Abduction |
| Precision Leg Developer | Cam-Driven Leg Extensions & Seated Leg Curls |
| Optional Attachments (Sold Separately) | GLP Premium Leg Press / Calf Press OR GIOT Inner / Outer Thigh Station |
| Dimensions & Weights | |
| Assembled Product Dimensions | 83.00" L x 46.00" W x 84.00" H (2,108.20 mm L x 1,168.40 mm W x 2,133.60 mm H) |
| Assembled Total Weight | 504.00 lbs. (228.61 kg) |
| Total Shipping Weight | 552.00 lbs. (250.38 kg) |
| Shipping Configuration | 4 Boxed Components + 4 Boxes of PP10 Weight Plates (50.00 lbs. / 22.68 kg each) |
17% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

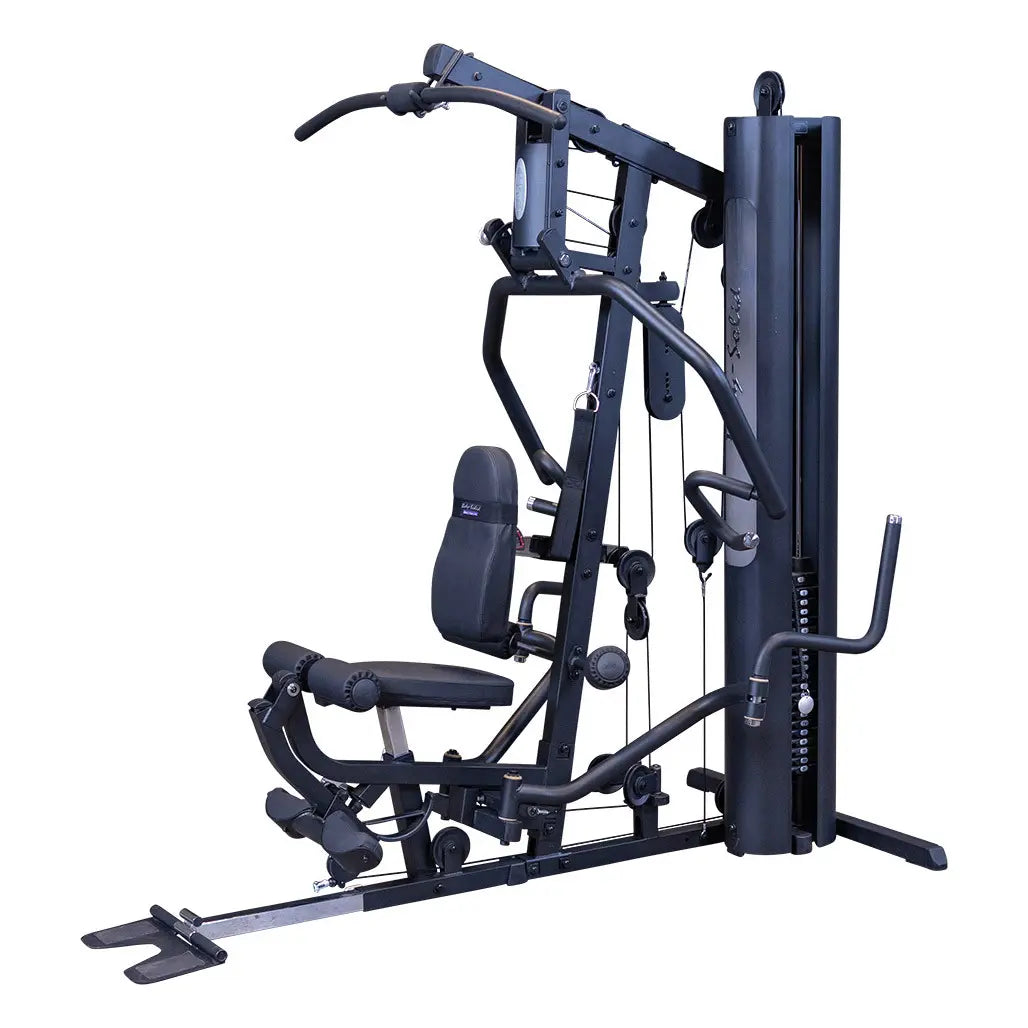

Body-Solid G5B Multi-Station Gym, Perfect Pec Station, SmoothGlide Bearing System Leg Developer, Versatile Triple-Pulley System, Flip-Up Seated Row Footplat
The Body-Solid G5B Multi-Station Gym (SKU: G5B) is an industrial-grade, single-stack strength training system engineered for high-end residential spaces and light commercial fitness settings. Driven by a standard 210 lb. selectorized weight stack (upgradable to 260 lbs.), the G5B combines biomechanical precision with heavy-duty construction. Its space-saving, no-cable-change design allows users to transition between exercises without stopping to re-route cables.
At the core of the G5B's upper-body functionality is the multi-grip Ergo-Press arm—featuring three distinct handgrip pairs—and the specialized Perfect Pec™ Station with dual overhead cams and articulating swivel arms for unilateral and bilateral movement. Paired with the SmoothGlide Bearing System™ leg developer, high/mid/low cable pulleys, and an integrated flip-up footplate for seated rows, the G5B delivers complete muscle isolation and full-body strength building.
Features:

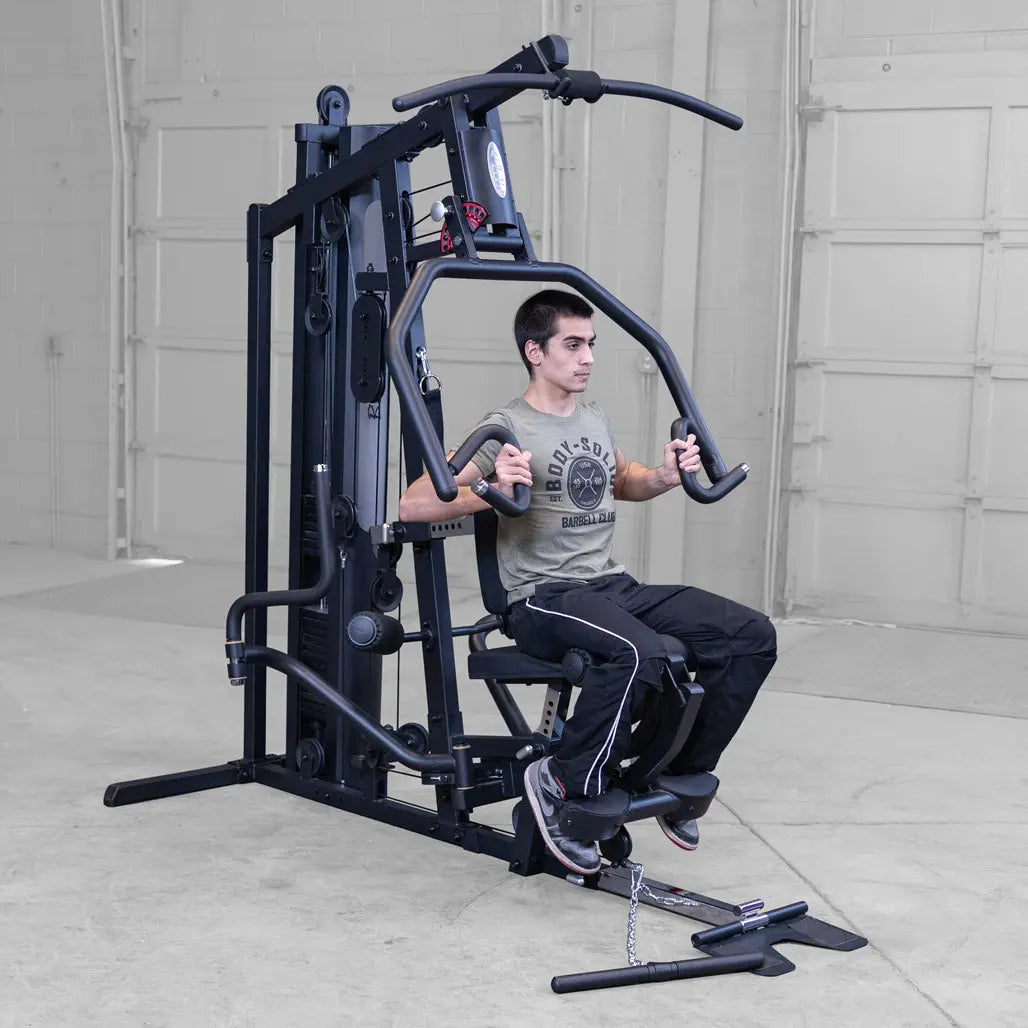

- Multi-Grip Ergo-Press Arm: Adjustable press arm includes three sets of ergonomic handgrips to target chest, shoulder, and back muscle groups from multiple angles during chest, incline, and shoulder pressing.

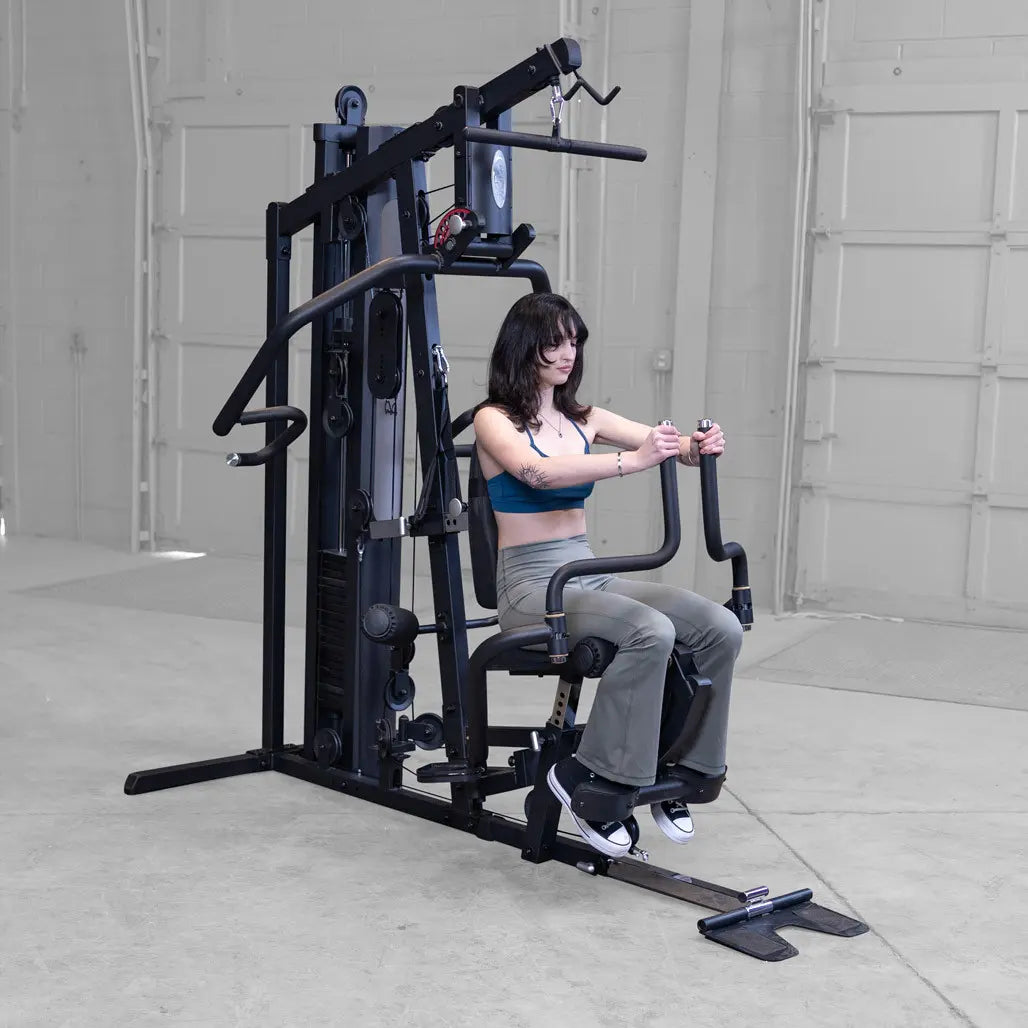

- Perfect Pec™ Station: Dual-cam design with variable resistance and swivel arms supports both unilateral and bilateral movements for maximum stretch and deep pectoral and rear deltoid isolation.
- SmoothGlide Bearing System™ Leg Developer: Biomechanically aligned pivot point with an integrated CAM system prevents resistance drop-off at full extension, while self-aligning contoured cuffs automatically adapt throughout the stroke.

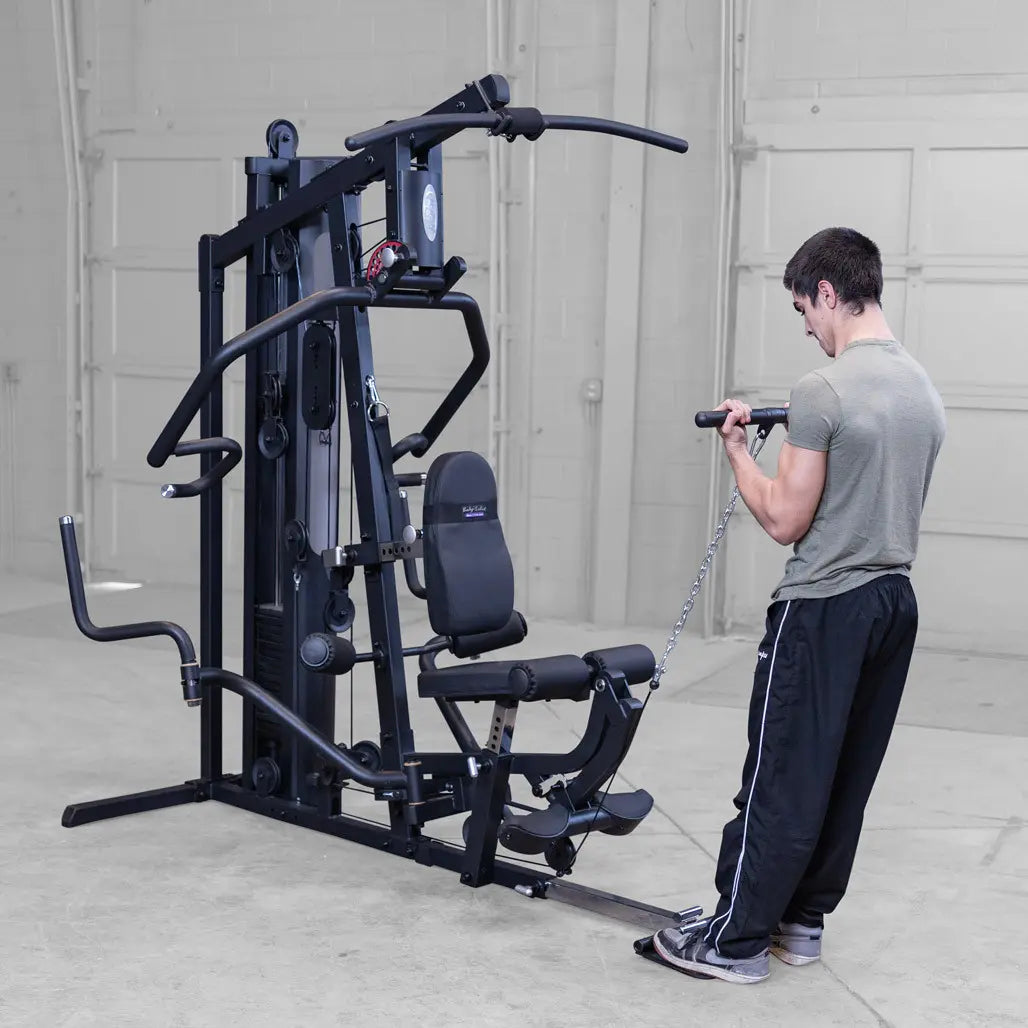

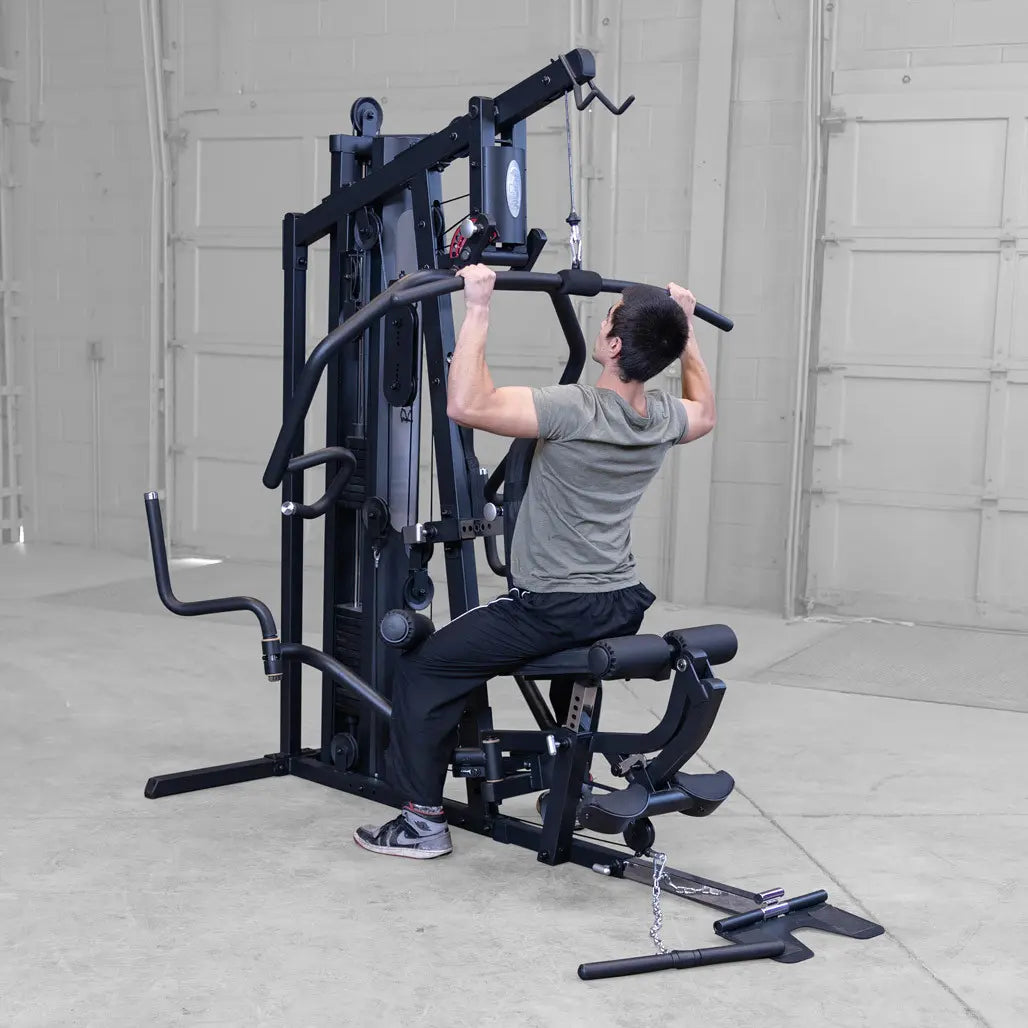

- Versatile Triple-Pulley System: Features high, mid, and low pulleys to perform lat pulldowns, triceps pressdowns, resistance ab crunches, cable curls, upright rows, and deltoid raises.
- Flip-Up Seated Row Footplate: Built-in stabilization footplate provides a solid bracing platform for heavy seated row movements.
- No-Cable-Change Efficiency: Streamlined cable path routing mechanism allows immediate exercise transitions without tedious cable setups.
- Industrial-Grade Construction: Built from 12-gauge steel tubing, 4½" impact-resistant fiberglass-reinforced nylon pulleys with steel ball bearings, and 2,200 lb. tension-rated aircraft cables.
- Ergonomic Comfort: Extra-thick DuraFirm™ pads with contoured lumbar support paired with a chrome-plated, gas-assisted telescoping seat post for smooth body positioning.
- Expandable Module Bay: Modular design accommodates one optional side attachment at a time—either the GLP Premium Leg Press / Calf Press or the GIOT Inner / Outer Thigh station.
- Comprehensive Warranty: Covered by Body-Solid's In-Home Lifetime Warranty on frame, welds, bushings, pads, and cables, along with a Light Commercial Warranty.
Specifications:
