| Overview | |
|---|---|
| Product Name | Body-Solid Pro Select CAM Leg Extension & Leg Curl Machine (310 lb. Stack) |
| Product Model | GCEC-STK/3 |
| Brand / Product Line | Body-Solid Pro Select Series |
| Product Category | Selectorized Dual Leg Extension & Seated Leg Curl Station |
| Commercial Rating | Light Commercial / Full Commercial / In-Home Rated |
| Resistance System | 310 lb. Selectorized Weight Stack (15 lb. Increments, Upgraded Configuration) |
| Frame Finish | Powder Coat (Black) |
| Cam Mechanism | Precision 7-Gauge Steel Cam |
| Pad & Roller Adjustments | 7 Backrest Positions, Multiple Leg Hold-Down Settings |
| Distance (Seat to Roller) | 16.00" (From top of seat pad to bottom of leg extension foam roller) |
| Target Exercises & Muscle Groups | |
| Primary Movements | Seated Leg Extensions, Seated Leg Curls |
| Target Musculature | Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis, Vastus Intermedius), Hamstrings (Biceps Femoris, Semitendinosus, Semimembranosus) |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 54.00" L x 54.00" W x 71.00" H (1,371.60 mm L x 1,371.60 mm W x 1,803.40 mm H) |
| Alternative Spec Sheet Dimensions | 54.00" L x 54.00" W x 70.00" H (1,371.60 mm L x 1,371.60 mm W x 1,778.00 mm H) |
| Assembled Product Weight | 412.00 lbs. to 416.00 lbs. (186.88 kg to 188.69 kg) |
| Shipping & Packaging Specifications | |
| Main Box Dimensions | 38.10" L x 33.60" W x 7.20" H (967.74 mm L x 853.44 mm W x 182.88 mm H) |
| Main Box Gross Volume | 5.33 ft³ (0.15 m³) |
| Additional weight stack packaging | Supplied for the 310 lb. upgraded weight stack configuration. |
| Warranty Structure | |
| Light Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings & Hardware | 1 Year Pads, Cables, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Hardware, Pads, Cables, & Grips |

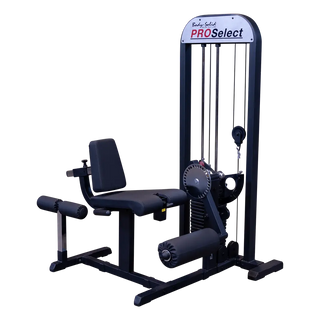

Body-Solid GCEC-STK/3 Pro Select CAM Leg Extension and Leg Curl Machine (310 lb. Stack)
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Body-Solid GCEC-STK/3 Pro Select CAM Leg Extension and Leg Curl Machine (310 lb. Stack), Dual Leg Extension and Seated Leg Curl Station, 7-Position Adjustable Backrest and Hold-Down

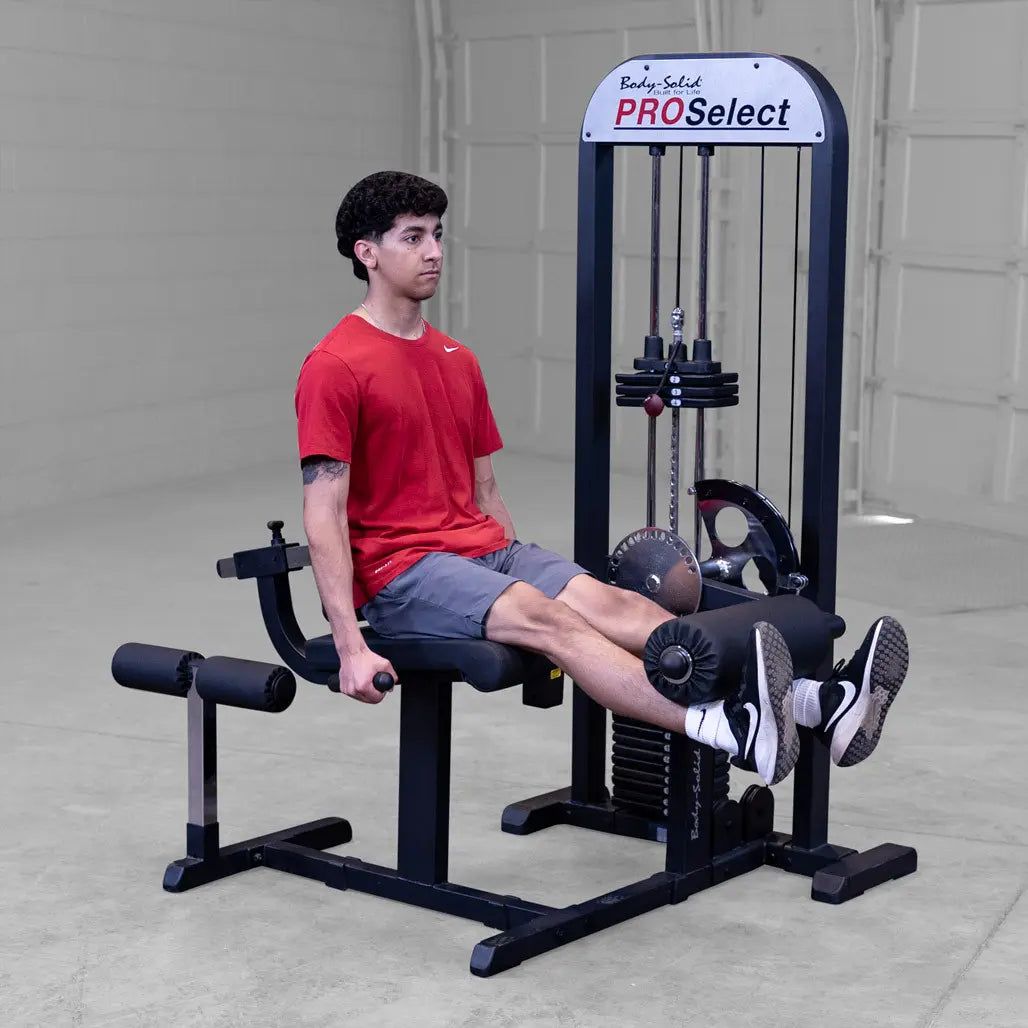

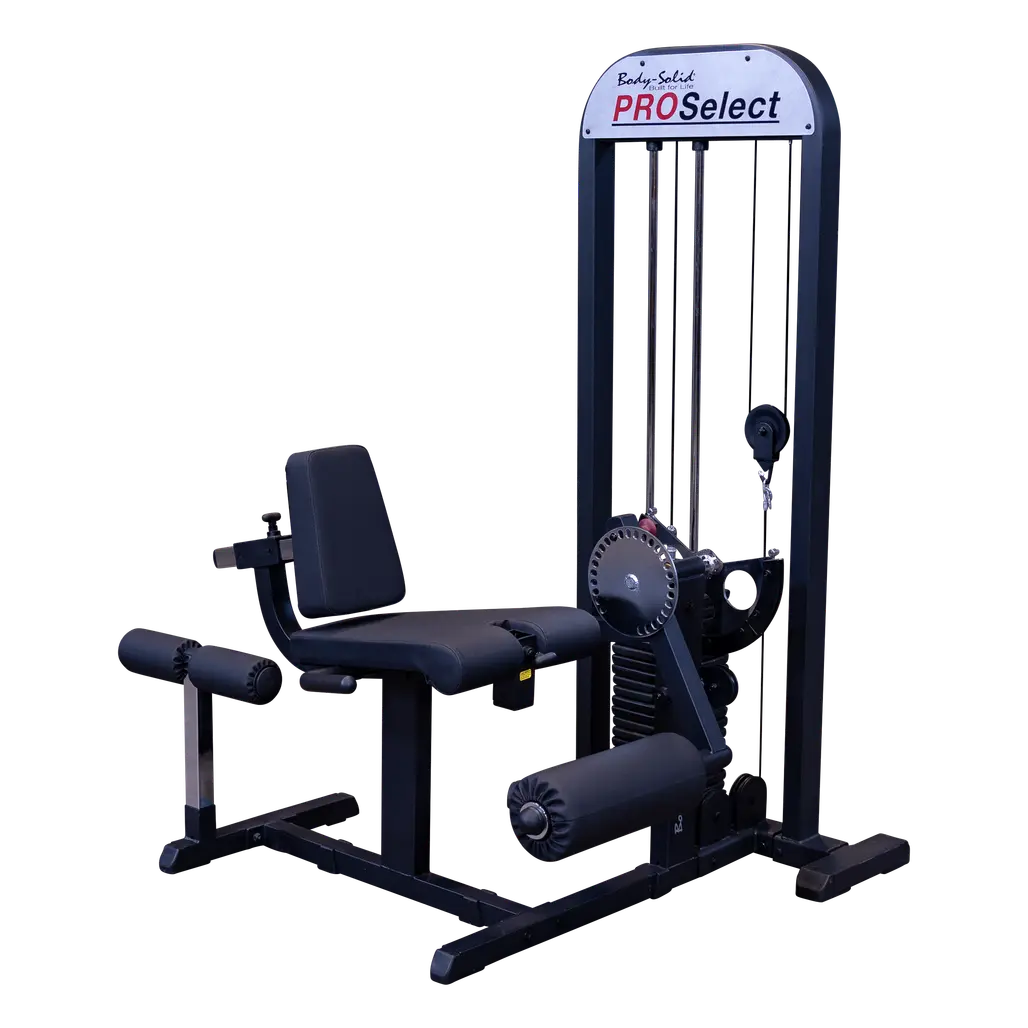

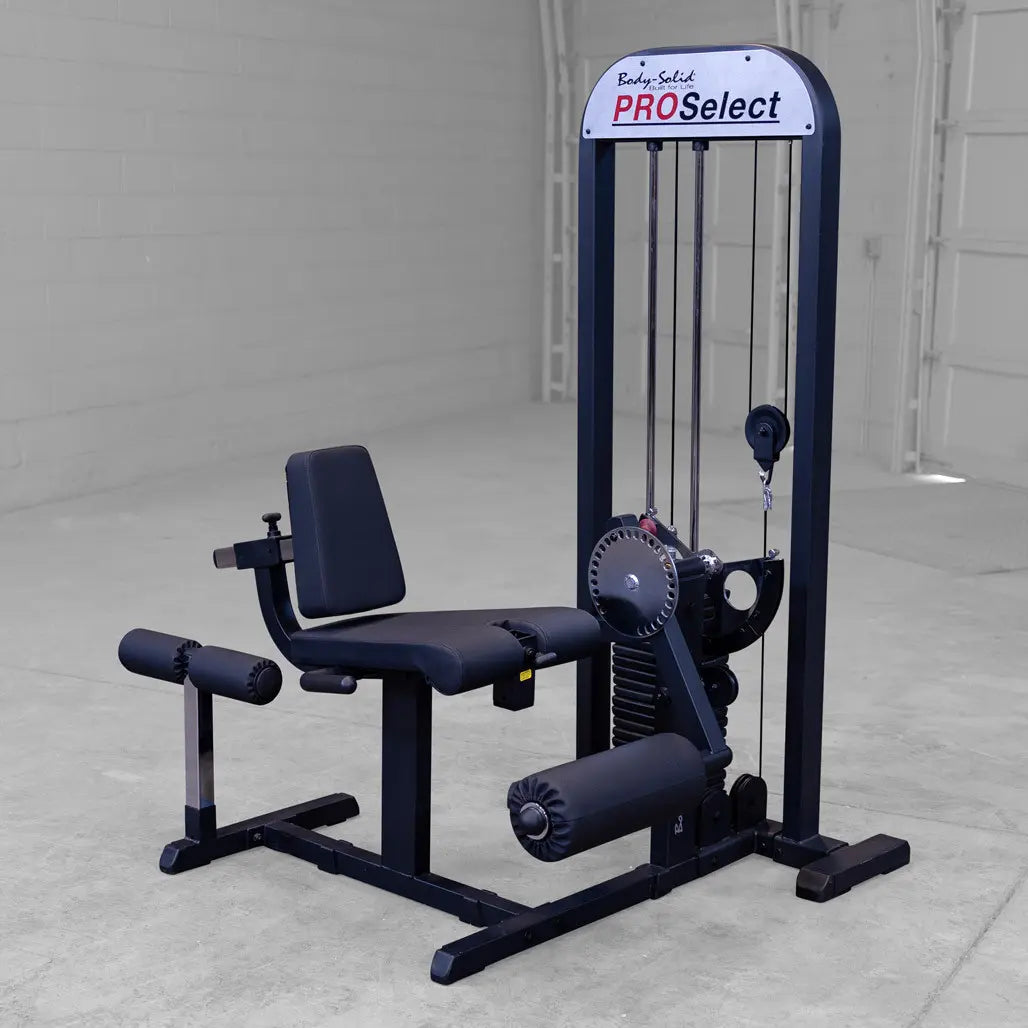

The Body-Solid Pro Select CAM Leg Extension & Leg Curl Machine ( GCEC-STK/3) provides a space-saving, dual-function lower-body strength solution designed to isolate both the quadriceps and hamstrings from a single seated position. Engineered with an intuitive pull-pin mechanism and a rotary range-of-motion adjustment cam, this machine allows users to transition effortlessly between seated leg extensions and seated leg curls without leaving the seat.
Equipped with an upgraded 310 lb. selectorized weight stack (15 lb. plate increments), this unit features a 7-gauge steel cam designed to deliver biomechanically accurate resistance curves across every repetition. With 7-position backrest adjustments, multiple leg hold-down settings, and convenient integrated storage for the leg hold-down attachment, the GCEC-STK/3 offers full adjustability and comfort. Built with extra-thick DuraFirm™ upholstery, oversized foam rollers, and a sleek black finish, this versatile station is built for personal training studios, light commercial facilities, and premium home gyms.
Features:
- Upgraded 310 lb. Weight Stack: Features an expanded 310 lb. selectorized weight stack in 15 lb. increments (upgraded from the standard 210 lb. stack) for heavy progressive overload.
- Dual Leg Extension & Seated Leg Curl Station: Combines quadriceps extensions and hamstring curls into a single commercial-grade footprint.
- Easy Pull-Pin & Rotary Cam Adjustment: Quick pull-pin system allows rapid switching between exercises and customizes starting range-of-motion angles for different body types.
- 7-Position Adjustable Backrest & Hold-Down: Offers 7 precision back pad and leg hold-down adjustments to ensure correct biomechanical alignment over the pivot axis.
- Precision 7-Gauge Steel Cam: Specially engineered 7-gauge steel cam provides smooth, natural movement and continuous resistance throughout the full movement arc.
- Biomechanically Correct Seat Angle: Angled seat design supports lumbar positioning while isolating targeted lower-body muscle groups.
- Integrated Hold-Down Storage: Features dedicated storage pins directly on the frame for convenient placement of the leg hold-down piece when not in use.
- DuraFirm™ Upholstery & Oversized Rollers: Thick, double-stitched DuraFirm™ padding and high-density foam rollers reduce pressure points and stabilize the legs.
- Commercial Frame & Finish: Heavy-duty steel mainframe finished in a durable, modern black finish (introduced in 2024).
Specifications:
