| Overview | |
|---|---|
| Product Name | Body-Solid Compact Leg Press & Calf Raise Machine |
| Product Model | GCLP100 |
| Brand / Product Line | Body-Solid Fitness |
| Product Category | Compact Plate-Loaded Leg Press Station |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Resistance System | Plate-Loaded (Olympic Weight Plates) |
| Max Weight Capacity | 1,000 lbs. (453.59 kg) |
| Carriage System | Sealed Linear Ball Bearings on Case-Hardened Chrome Guide Rods |
| Frame Construction | Heavy-Gauge Steel Mainframe |
| Incline Angles | 30° Seat Incline / 15° Foot Pad Angle |
| Weight Horns | Dual 12.00" Chrome-Plated Weight Horns |
| Target Exercises & Muscle Groups | |
| Primary Movements | Incline Leg Press, Seated Calf Raise |
| Target Musculature | Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis), Gluteus Maximus, Hamstrings, Gastrocnemius, Soleus |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 67.10" L x 47.20" W x 46.40" H (1,704.34 mm L x 1,198.88 mm W x 1,178.56 mm H) |
| Alternative Spec Sheet Dimensions | 67.00" L x 47.00" W x 46.00" H (1,701.80 mm L x 1,193.80 mm W x 1,168.40 mm H) |
| Assembled Product Weight | 228.70 lbs. (103.74 kg) / 229.00 lbs. (103.87 kg) |
| Shipping & Packaging Specifications | |
| Detailed package dimensions and volume | Not specified for this SKU configuration. |
| Warranty Structure | |
| Light Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings & Hardware | 1 Year Pads, Cables, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Hardware, Pads, Cables, & Grips |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

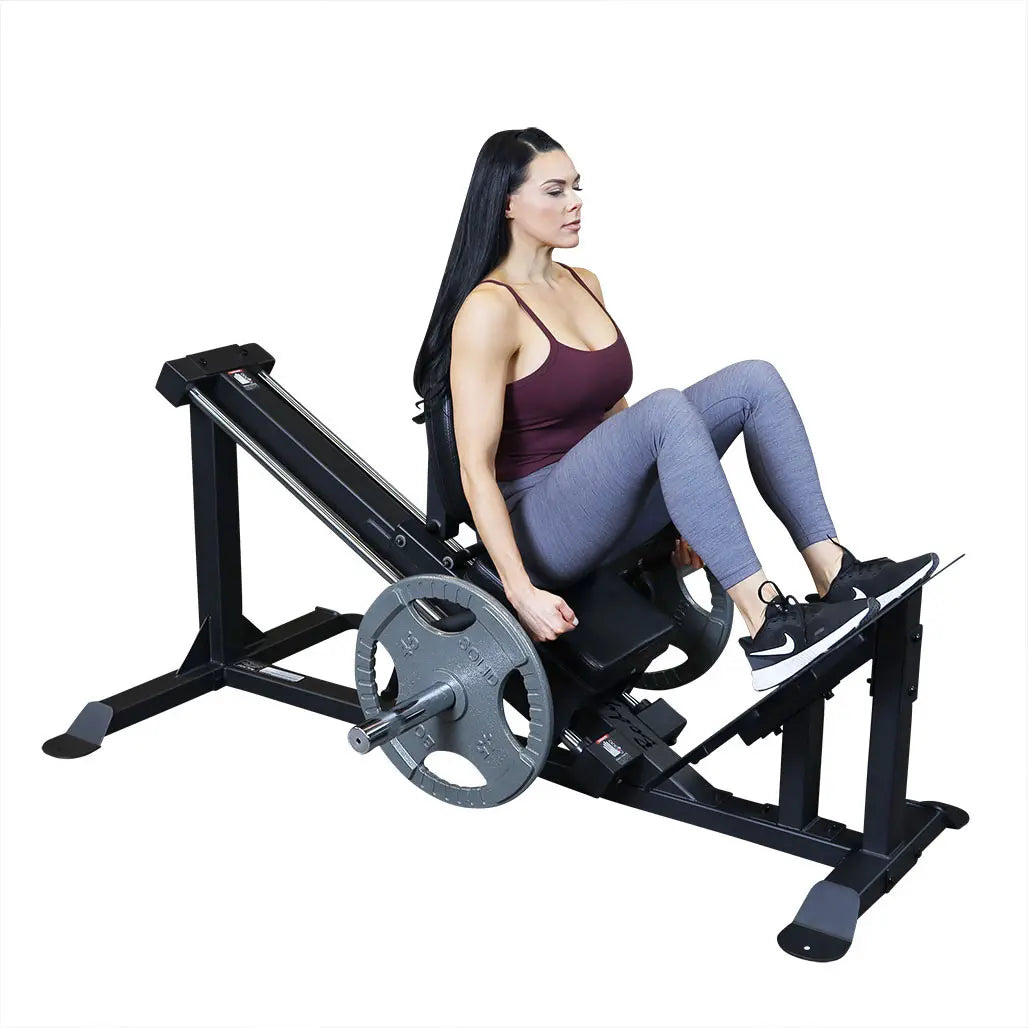

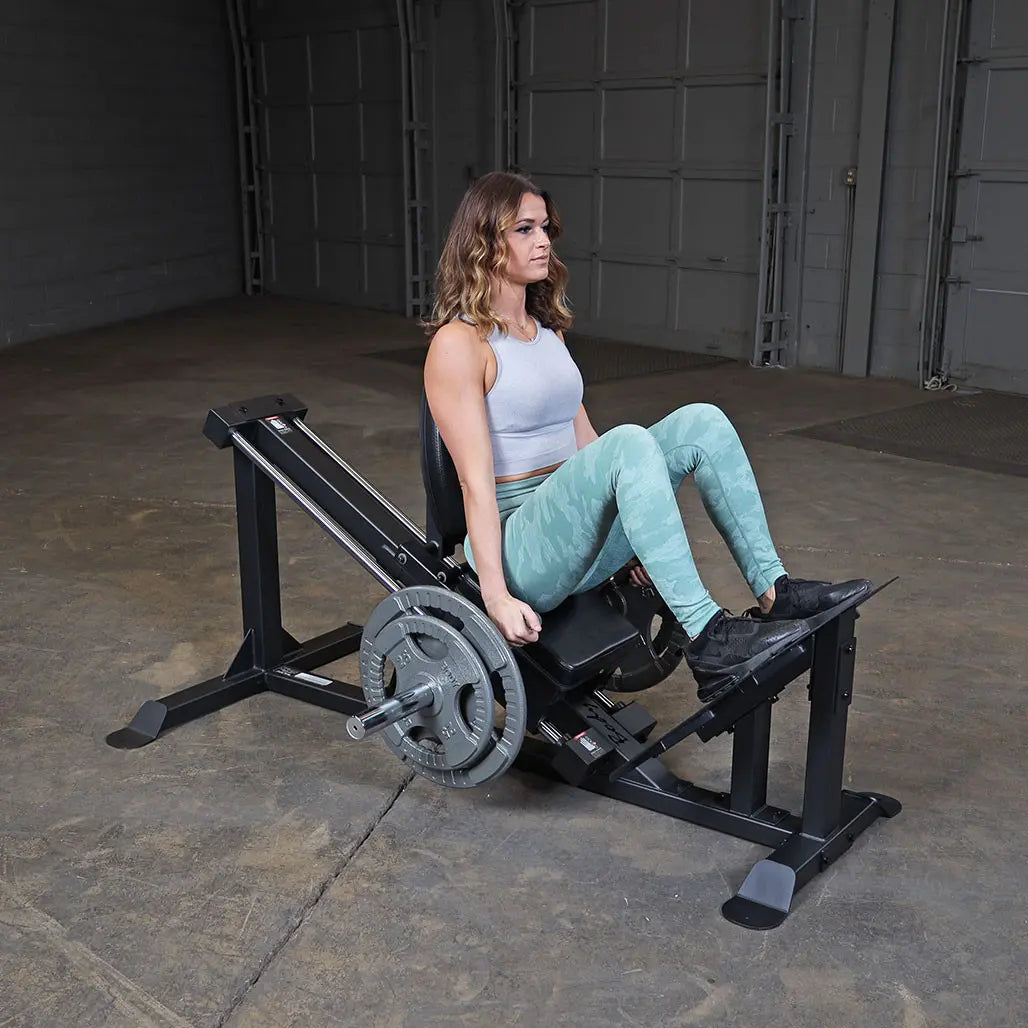

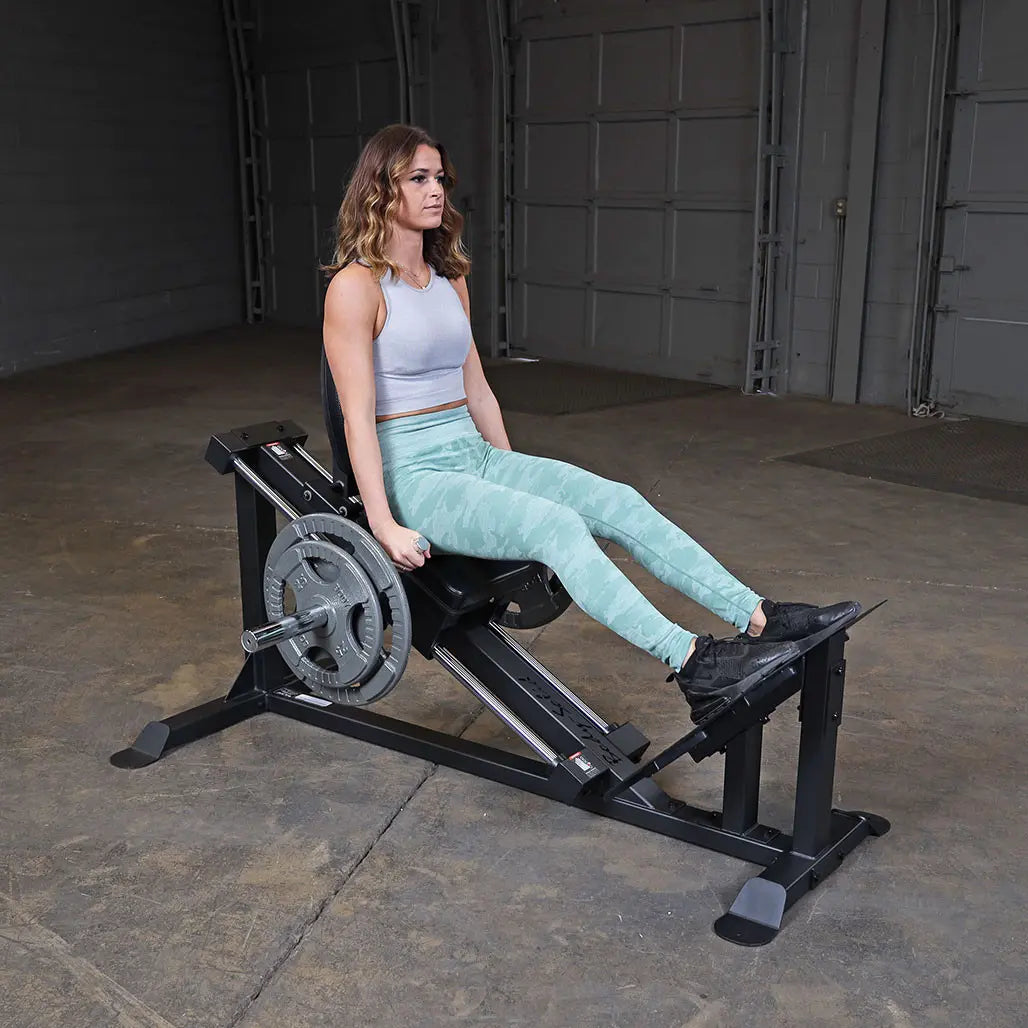

Body-Solid GCLP100 Compact Leg Press Machine, Dual Leg Press and Calf Raise Station, Ultra-Compact Footprint, Ergonomic 30-Degree Incline Angle
The Body-Solid Compact Leg Press (GCLP100) combines two fundamental lower-body movements—the leg press and seated calf raise—into a single, safe, space-saving footprint. Measuring just 47.2” wide and 67.1” deep, the GCLP100 is engineered to fit into space-constrained commercial facilities, personal training studios, and home or garage gyms without sacrificing performance or load capacity.
Despite its compact size, the GCLP100 features a massive 1,000 lb. weight capacity. The smooth-gliding seat carriage rides on sealed linear ball bearings and case-hardened, chrome-plated guide rods for frictionless operation under heavy loads. Set at a biomechanically sound 30-degree incline with a 15-degree footpad angle, it ensures optimal muscle engagement while relieving lower back strain. Dual 12” chrome-plated weight horns provide ample plate loading space, making this commercial-rated unit a complete lower-body solution.
Features:
- Dual Leg Press & Calf Raise Station: Combines full-range leg presses and seated calf raises in one space-saving design.
- Ultra-Compact Footprint: Designed to maximize floor space, fitting easily into tight commercial spaces, garage gyms, and home facilities.
- Precision Linear Bearing System: Features sealed linear ball bearings and case-hardened, chrome-plated guide rods for ultra-smooth carriage travel.
- 1,000 lb. Weight Capacity: Built with heavy-gauge steel construction to safely handle extreme weight loads up to 1,000 lbs.
- Ergonomic 30-Degree Incline Angle: Seat-slide is engineered at a 30-degree angle combined with a 15-degree footpad angle to optimize quadriceps, hamstring, and glute activation while protecting the lower spine.

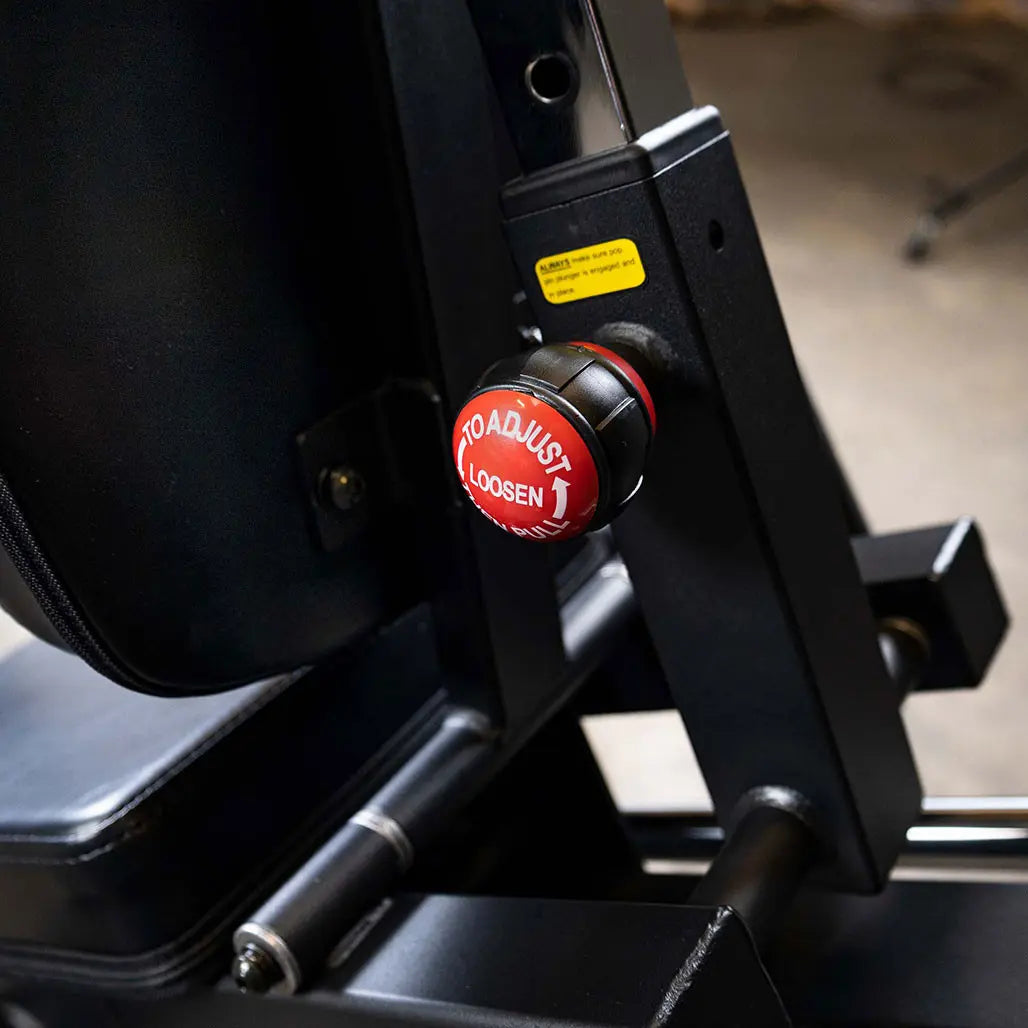

- Fully Adjustable Seating: Accommodates users of all heights with easily customizable seat positioning.
- Dual 12” Chrome Weight Horns: Includes two 12” weight posts for loading standard Olympic weight plates (plates sold separately).
- Integrated Hand Grips: Ergonomic side grips stabilize the torso and lock the user securely in place during heavy lifting sets.
Specifications:
