| General Specifications | |
|---|---|
| Brand / Line | Body-Solid |
| Product Name | Commercial Seated Calf Raise Machine |
| Model | GSCR349B |
| Frame Finish | Modern Black (2024 Edition) |
| Product Category | Plate-Loaded Lower Body Strength Station |
| Commercial Rating | Commercial & In-Home Rated |
| Frame Material | 2" x 3" 11-Gauge High-Tensile Steel Mainframe |
| Pivot System | Precision Pillow Block & Sealed Ball Bearings |
| Padding | 3.00" Thick DuraFirm™ Seat & Knee Pads |
| Weight Resistance Ratio | 1:3 Weight Multiplication Ratio |
| Weight Post Diameter | 1.00" Standard Plate Post (Compatible with optional OAS14 Olympic Adapter Sleeve) |
| Target Musculature & Exercises | |
| Primary Exercise | Seated Calf Raise |
| Target Muscle Groups | Soleus, Gastrocnemius, Achilles Tendon Conditioning |
| Dimensions & Weights | |
| Assembled Unit Dimensions | |
| Length | 47.00" (1,193.80 mm) |
| Width | 23.00" (584.20 mm) (Alternative Spec Width: 20.00" / 508.00 mm) |
| Height | 39.00" (990.60 mm) |
| Assembled Weight | 93.00 lbs (42.18 kg) / 95.00 lbs (43.09 kg) |
| Shipping & Package Specifications | |
| Package Length | 45.28" (1,150.11 mm) |
| Package Width | 16.54" (420.12 mm) |
| Package Height | 11.02" (279.91 mm) |
| Package Volume | 4.78 cu. ft. (0.14 m³) |
| Manufacturer Warranty Structure | |
| Commercial Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | 3 Years |
| Pads, Cables, & Grips | 1 Year |
| In-Home Warranty | |
| Frame & Welds | Lifetime |
| Bushings & Hardware | Lifetime |
| Pads, Cables, & Grips | Lifetime |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

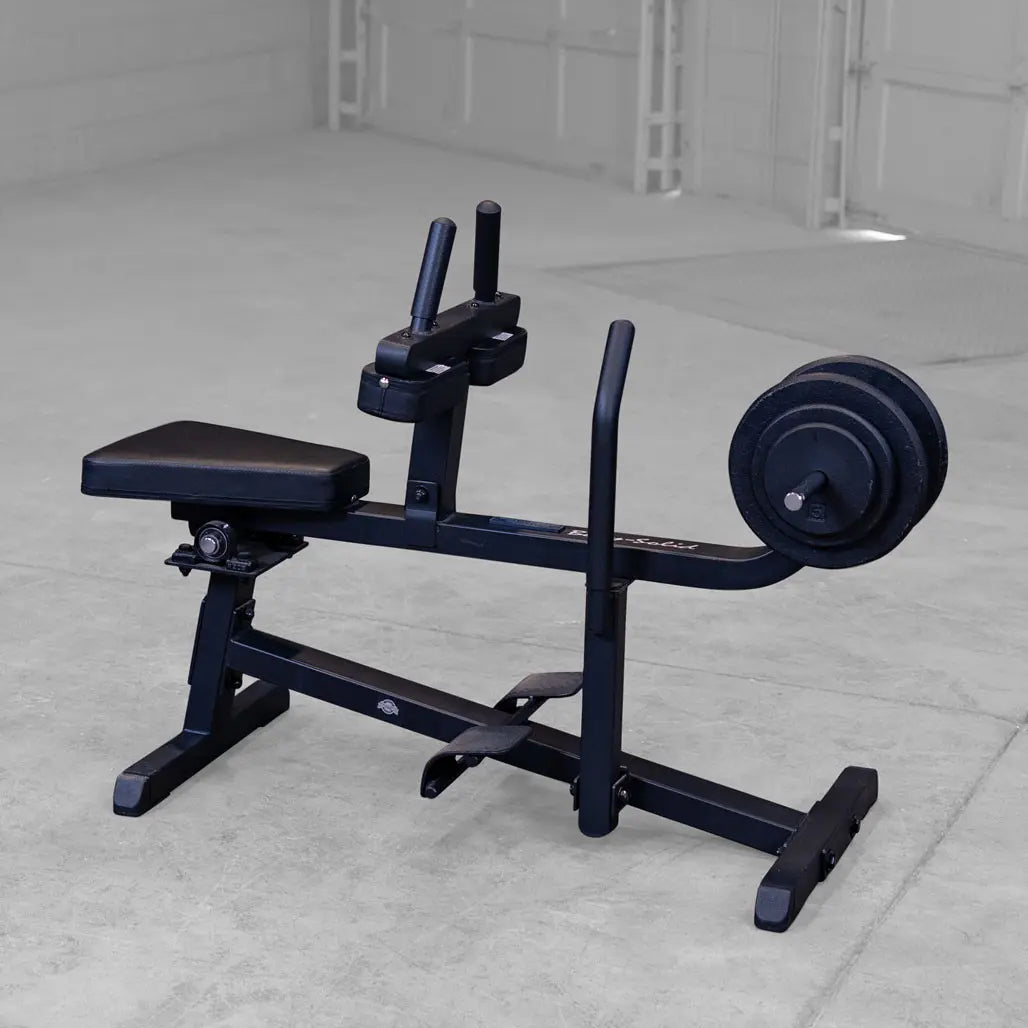

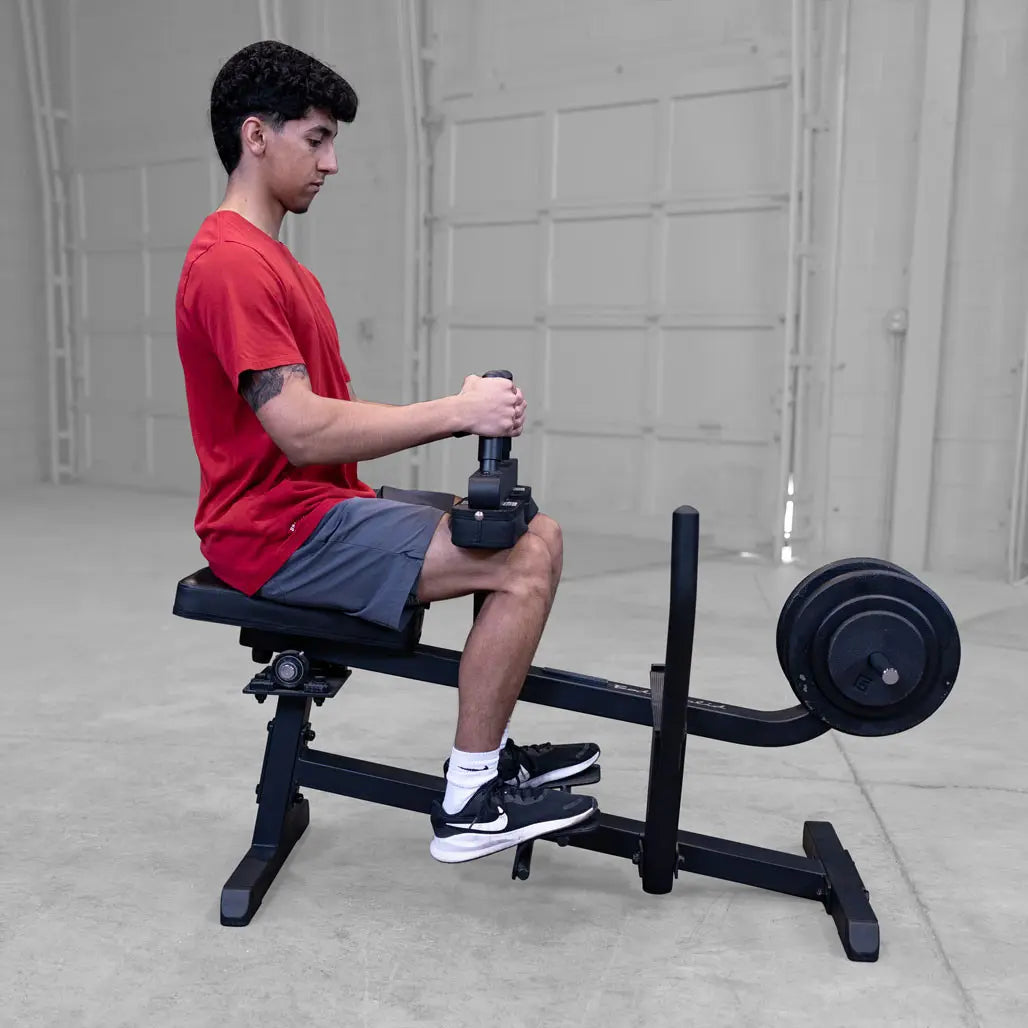

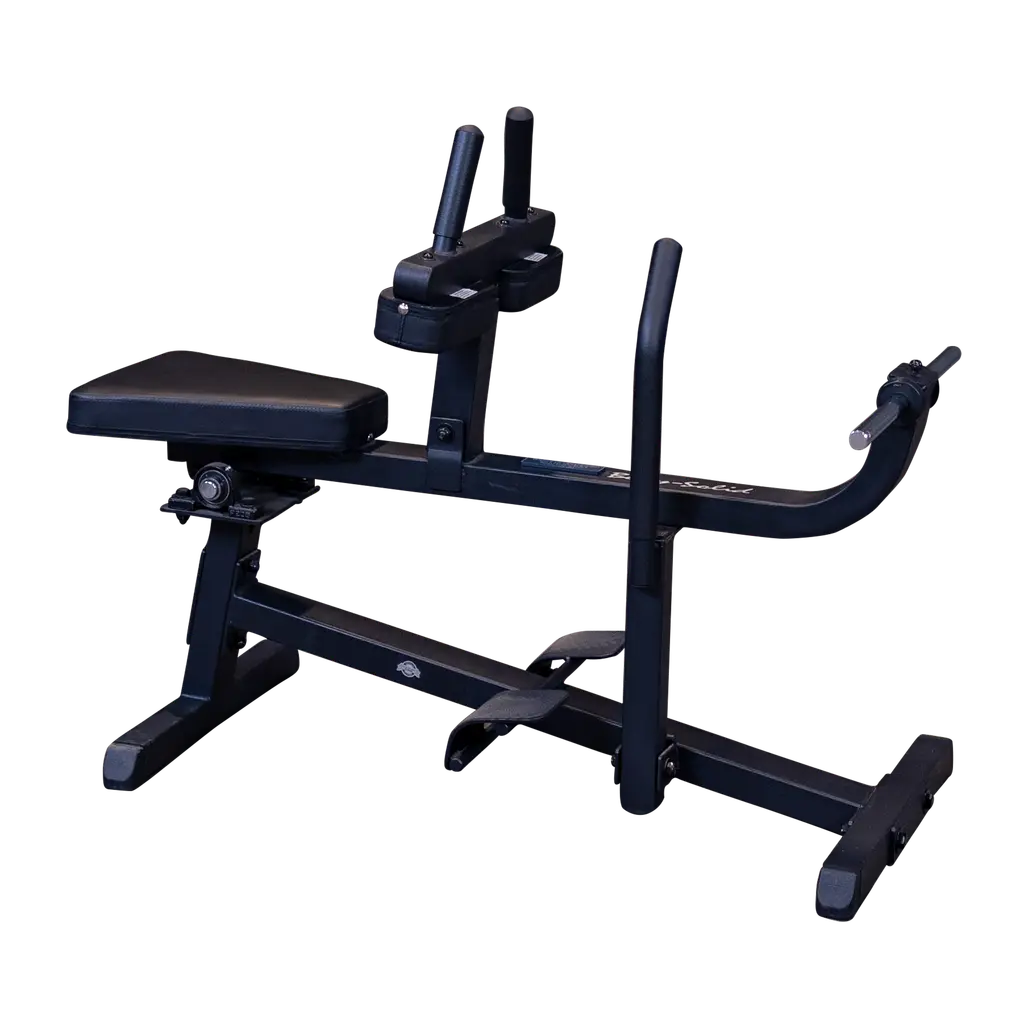

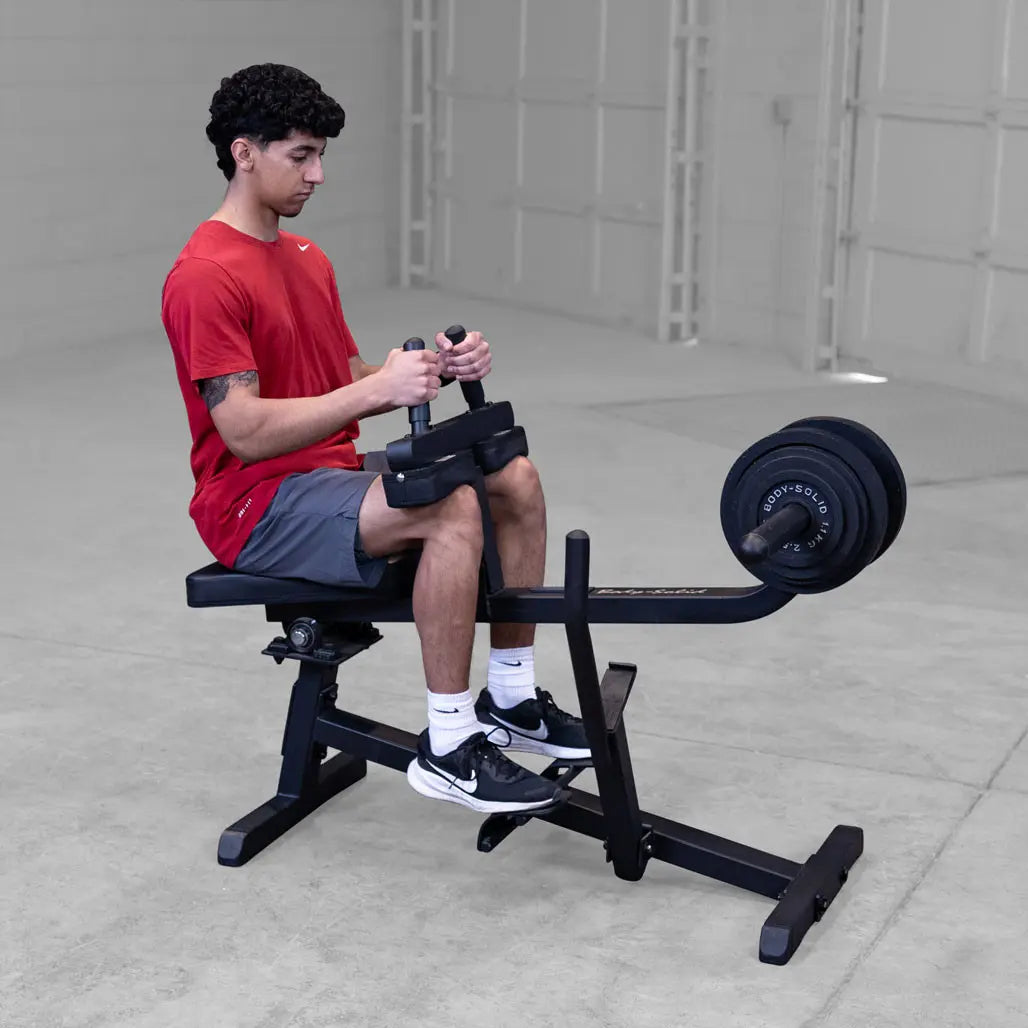

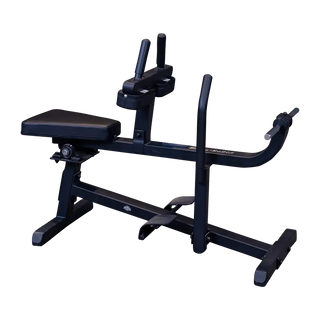

Body-Solid GSCR349B Seated Calf Raise Machine (Black Edition), Advanced 1:3 Leverage Ratio, Heavy-Duty Frame Construction, Precision Pillow Block Bearings
The Body-Solid Seated Calf Machine (SKU: GSCR349B) combines ergonomic design with heavy-duty commercial engineering to accelerate lower leg development. Updated with a sleek, modern black frame finish, this machine is built with a massive 2" x 3" 11-gauge high-tensile steel frame designed to withstand high-use commercial fitness centers and home gyms alike.
Engineered with a powerful 1:3 weight-ratio leverage carriage, the GSCR349B multiplies resistance to target stubborn soleus and gastrocnemius muscle fibers effectively. Precision pillow block and sealed ball bearings at the main pivot points guarantee smooth, friction-free operation under maximum loading. Featuring an angled, non-slip foot platform and 3"-thick DuraFirm™ padding, this unit provides maximum stretch, full range of motion, and supreme comfort.
Features:
- Advanced 1:3 Leverage Ratio: Weight carriage multiplies loaded weight into three times the effective resistance for deep calf development.
- Heavy-Duty Frame Construction: Built with commercial-grade 2" x 3" 11-gauge high-tensile strength steel, finished in modern black.
- Precision Pillow Block Bearings: Industrial-grade pillow block and sealed ball bearings at main pivot points provide frictionless movement under heavy weight loads.
- Ergonomic Angled Foot Platform: Features a non-slip surface designed to relieve stress on the ball of the foot while allowing maximum ankle extension and stretch.
- Ultra-Thick DuraFirm™ Cushioning: High-density 3" thick DuraFirm™ seat and thigh/knee pads minimize user discomfort during heavy training sets.
- Fully Adjustable Fit: Easily adjusts to accommodate users of all heights and body types.
- Standard Plate Post: Includes a standard 1" weight plate post (Olympic 2" adapter sleeves, weight plates, and collar clamps sold separately).
Specifications:
