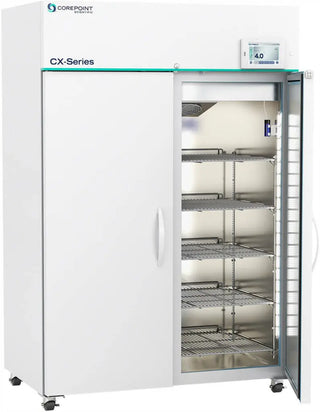

The Premium CX Series Lab Touchscreen Refrigerators deliver superior cooling to laboratory environments. Engineered with variable speed compressors (VSCs), these units feature ultra-quiet operation and significant energy savings. VSCs optimize energy consumption by self-adjusting to cooling demands. These compressors also deliver enhanced system performance and provide a longer lifespan than other compressor variations.
This touchscreen line showcases our most elite features including state-of-the-art touchscreen controllers, advanced alarm systems and data logging capabilities. All units are powered by microprocessor temperature control. These units also utilize natural, hydrocarbon refrigerants for environmental health and energy efficiency. Upgrade your laboratory with these advanced units and welcome energy savings, noise reduction, smooth operation, and improved system performance to your work environment.
Features
-
Advanced Touchscreen Control: Equipped with an 8-inch microprocessor color touchscreen interface that simplifies real-time monitoring and allows rapid data tracking in Celsius or Fahrenheit.
-
Traceable Data Logging: Features built-in data acquisition (DAQ) and event logging with an accessible USB port, enabling seamless downloads of time-stamped temperature history in .csv and .pdf formats.
-
Thermal Precision & Airflow: Utilizes a forced-draft air circulation system to maintain an exceptional cabinet uniformity of ±1.2°C and temperature stability of ±1.0°C.
-
Fail-Safe Battery Backup: An integrated 12V high-capacity battery ensures that temperature tracking, localized alarms, and data logging stay fully functional during power failures.
-
Eco-Friendly Configuration: Built with an EPA SNAP-compliant variable-speed compressor running on R600a natural refrigerant, coupled with high-density, foamed-in-place urethane insulation.
-
Secure High-Capacity Storage: Offers 49 cubic feet of space secured by heavy-duty keyed solid double doors and optimized with ten fully adjustable shelves featuring rear guard rails.
Product Specifications
| Product Model | CPS-HC-SPLD-49-TS |
| Storage Capacity | 49 Cu. Ft. |
| Exterior Dimensions (W x D x H) | 54" x 36.375" x 81.5" |
| Interior Dimensions (W x D x H) | 49.125" x 26.5" x 59" |
| Temperature Range | 1°C to 10°C (34°F to 50°F) |
| Door Type | Double, solid, swing (right/left hinged) |
| Shelves | 10 adjustable shelves with back guard rails |
| Mobility & Leveling | 4 preinstalled swivel casters (front locking) |
| Cabinet Insulation | EPA-compliant high-density urethane foam |
| Exterior Material | White powder coated steel |
| Access Control | Keyed door lock |
| Controller Technology | Microprocessor with 8-inch color touchscreen |
| Display Type | LCD display |
| Battery Backup | 12V high-capacity battery (full alarm & DAQ active) |
| Data Access / Logging | USB port (Time-stamped .csv and .pdf logs) |
| Electrical Requirements | 110-120V AC, 15 A (minimum) |
| Rated Amperage / Plug | 4.5 Amps / NEMA 5-15 Plug |
| Refrigerant | EPA SNAP compliant, R600a hydrocarbon |
| Certifications | EPA SNAP Compliant / EPA Compliant Insulation |
| Product Weight | 491 lbs. |
