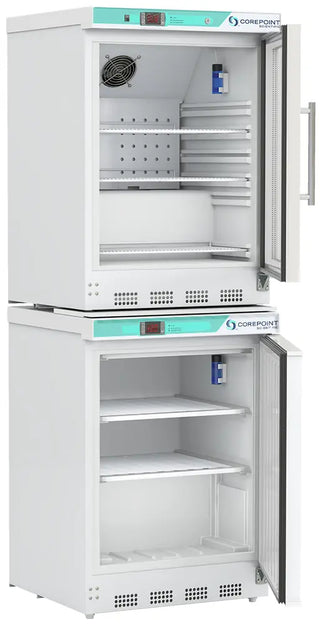

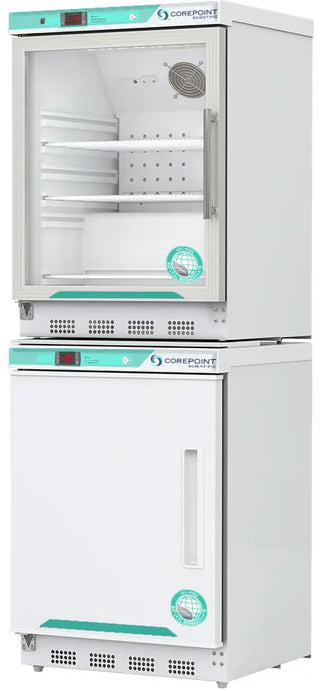

Corepoint PRF092WWGLH/0 23.75" White Diamond Series Upright Refrigerator / Freezer Combination, Left Hinged, 9 cu.ft., Ref. 1° to 10°C / Frz. -25° to -15°C Temperature Range, Manual Defrost Freezer, Cycle Defrost Refrigerator, 2 Swing Doors (1 Glass, 1 Solid), 5 Shelves
Built-in Refrigerator and Manual Defrost Freezer Combos have a compact footprint allowing for flexibility with unit placement and enables you to maximize facility floor space. These stacked models not only conserve space and boost efficiency in your laboratory, but also minimize facility costs and reduce long term maintenance.
Refrigerator and Freezer combo units feature separate microprocessor temperature controllers and digital displays, allowing for precise temperature control, verification, and recovery within each chamber, versus mechanical style thermostats. Critical samples are security backed with an extensive package of audible and visual alarms.
Features
-
Dual-Zone Microprocessor Controls: Independent temperature management loops for both chambers, delivering customized and ultra-stable climate environments for vaccines and medical samples.
-
Simulated Sample Temperature Probes: Digital displays rely on specialized probes mimicking actual stored product thermal responses rather than volatile ambient air variations.
-
Advanced Alarming & Remote Contact Readiness: Comprehensive audible/visual alerts warn of immediate temperature deviations, complemented by built-in remote contacts for centralized facility monitoring systems.
-
Eco-Friendly HFC-Free Refrigeration: Outfitted with sustainable R600a hydrocarbon refrigerant and green foam packaging, aligning perfectly with modern environmental and EPA regulations.
-
Enhanced Sample Security: Factory-installed keyed door locks secure high-value biological agents, while custom integrated back-wall guard rails prevent accidental internal airflow blockage.
Product Specifications
| Product Model | PRF092WWGLH/0 |
| Series | White Diamond Series Refrigerator & Freezer Combination |
| Total Capacity | 9.0 Cu. Ft. (Refrigerator: 4.6 Cu. Ft. / Freezer: 4.2 Cu. Ft.) |
| Door Configuration | Two exterior swing doors (Glass Refrigerator / Solid Freezer) |
| Hinge Orientation | Left Hinged |
| Temperature Controller | Microprocessor temperature controller (Ref & Frz) |
| Temperature Display | Digital display with sample simulated probe (Ref & Frz) |
| Alarms | Audible & visual high/low temp alarms with remote alarm contacts |
| Temperature Range (Ref) | 1°C to 10°C (Cycle Defrost) |
| Temperature Range (Frz) | -15°C to -25°C (Manual Defrost) |
| Shelving Details | Ref: 2 adj/1 fixed with rear guard rails | Frz: 2 fixed shelves |
| Security & Gasket | Keyed door locks; Magnetic door gasket for positive seal |
| Access Ports | Two 3/8" probe access ports (one refrigerator / one freezer) |
| Cabinet Insulation | High density urethane foam cabinet and door insulation |
| Refrigerant Type | HFC-free Eco-Friendly R600a Refrigerant |
| Exterior Dimensions | 23 3/4"W x 25 1/2"D x 66 3/4"H |
| Electrical Requirements | 115V, 60 Hz, 1.74A (Ref), 1.5A (Frz), 1/8 HP | Requires 2 outlets |
| Certifications | UL/C-UL Listed |
| Shipping Weight | 282 lbs. (127.9 kg) |
| Warranty | Three (3) years parts and labor, plus two (2) additional years compressor parts |
