Detecto 6570 Series – Portable Wheelchair & Multi-Function Scale with Folding Column for Easy Transport

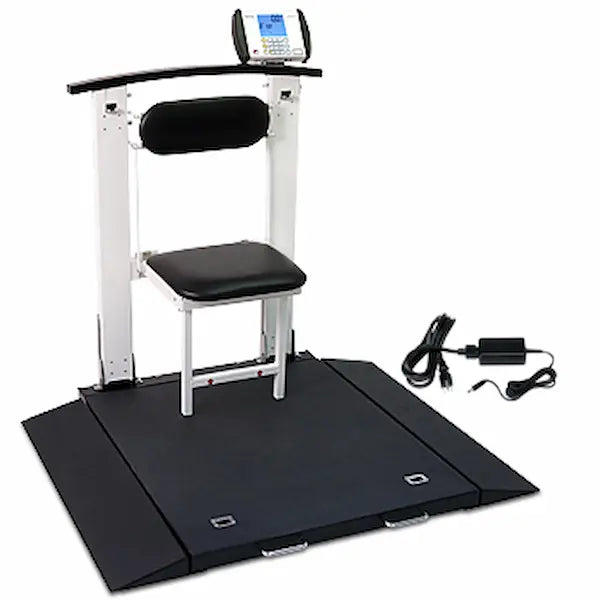

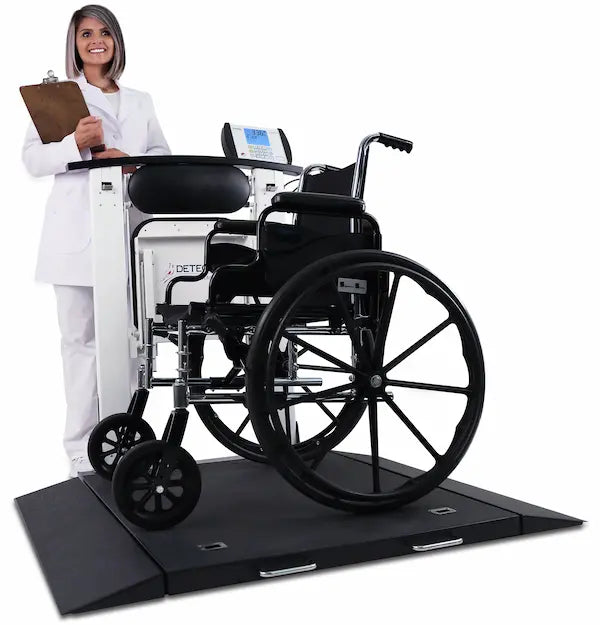

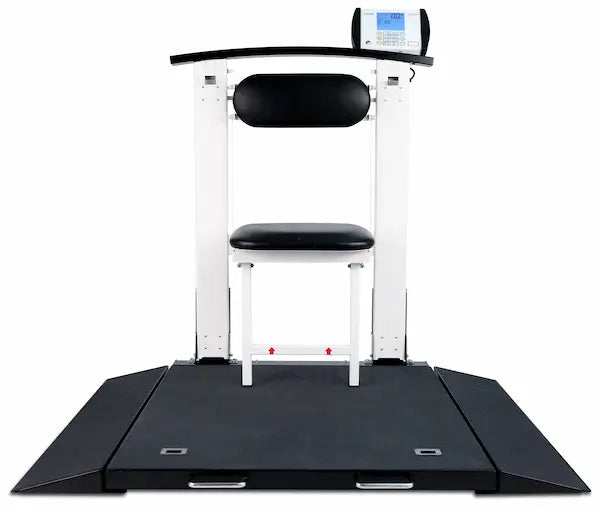

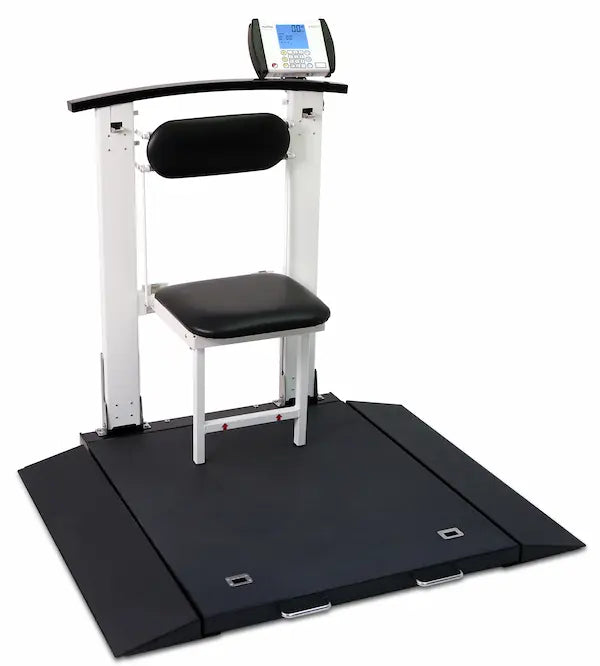

The Detecto 6570 Series Portable Wheelchair Scale is a versatile 3-in-1 scale designed for seated, standing, and wheelchair weighing. Featuring a folding column and chair seat, this scale ensures patient safety and stability while providing accurate weight readings up to 1,000 lb / 450 kg with 0.2 lb / 0.1 kg precision. Two-way ramps allow easy access from both sides, and the scale supports up to 99 tares to account for wheelchair weight. Optional Wi-Fi/Bluetooth connectivity enables seamless integration with EMR/EHR systems. Compact fold-up design with integral wheels allows for fast transport and vertical storage, making it ideal for hospitals, rehabilitation centers, and long-term care facilities.
Features:
- 3-in-1 Weighing: Supports standing, seated, and wheelchair patients for versatile clinical use.

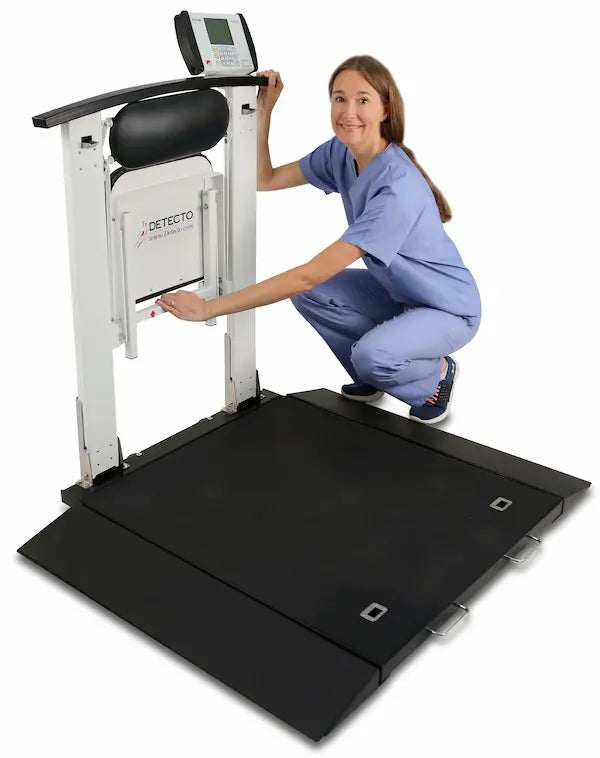

- Folding Column & Seat: Quick release lever allows easy folding for transport and vertical storage.
- High Capacity: Weighs up to 1,000 lb / 450 kg with clinical-grade accuracy.
- Two-Way Ramps: Accessible from both sides for wheelchair patients.
- Wi-Fi/Bluetooth Connectivity: Optional wireless integration with EMR/EHR systems.
- Curved Handrail: Provides stability during standing measurements.
- Low-Profile Platform: 2 in / 56 mm high for easy wheelchair access.
- EMR/EHR Ready: Supports clinical data management and patient tracking.
- NTEP and OIML Certified: Ensures medical dosing and weighing accuracy.
Specifications:
| Feature | Specification |
|---|---|
| Model | Detecto 6570 Series Portable Wheelchair Scale |
| Capacity | 1,000 lb x 0.2 lb / 450 kg x 0.1 kg (6570-AC); 300–350 kg (6570KGEU, OIML EC Class III) |
| Maximum Load (Folding Seat) | 800 lb / 360 kg |
| Platform Size | 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm |
| Ramp Size | 36 in W x 7.9 in L / 91.4 cm W x 20.2 cm L each |
| Keypad | 19 key, color-coded, sealed membrane |
| Display | 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD |
| Display Digits | 5 digits, 7-segment, 7/8 in / 22.2 mm high LCD weight digits |
| Power | 6 C batteries (not included) or AC adapter (included, model 6800-1045) |
| Connectivity | RS232 serial, USB; optional Ethernet, Wi-Fi/Bluetooth |
| Operating Temp | 14° to 104°F / -10° to 40°C |
| Net Weight | 140 lb / 63 kg |
| Shipping Weight | 150 lb / 68 kg |
| Country of Origin | USA |
| Certification | NTEP and OIML certified for medical dosing accuracy |
| Includes | Fold-up chair seat, 2-way ramps, integral wheels, curved handrail columns, weight indicator, guide handles |
| Optional | Ethernet |
Applications:
- Hospitals, clinics, and rehabilitation centers needing a multi-functional wheelchair scale.
- Facilities requiring accurate patient weighing for BMI, medical dosing, and monitoring.
- Spaces where portable, foldable, and compact scale design improves workflow efficiency.
- Clinical environments with integration needs for EMR/EHR data management.
