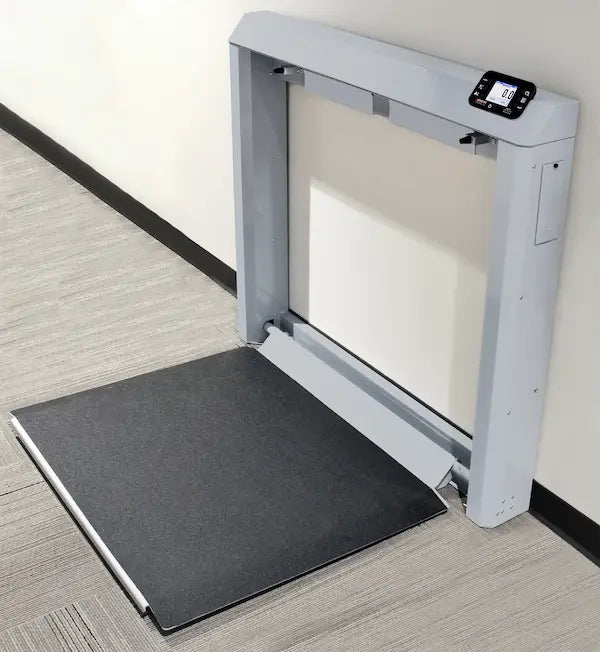

Detecto 7550 – Wall-Mount Wheelchair Scale with Fold-Down Platform for Space-Saving Clinical Use
The Detecto 7550 Wall-Mount Wheelchair Scale is a durable, digital solution designed for healthcare facilities with limited floor space. Featuring a fold-down platform, sturdy steel construction, and 1,000 lb / 450 kg capacity with 0.2 lb precision, this scale ensures secure and accurate patient weighing. Integrated Bluetooth 5.0 and Wi-Fi connectivity allow seamless EMR/EHR integration, while optional AC power or battery operation provides flexible installation. The compact vertical fold-up design conserves space without compromising functionality, making it ideal for hospitals, rehabilitation centers, and long-term care facilities.
Features:
- Fold-Down Platform: Saves valuable floor space in clinical environments.
- High Capacity: Supports wheelchair patients up to 1,000 lb / 450 kg with 0.2 lb precision.
- Wireless Connectivity: Bluetooth 5.0 and Wi-Fi standard for EMR/EHR integration.
- Sturdy Steel Construction: Long-lasting durability and reliable performance.

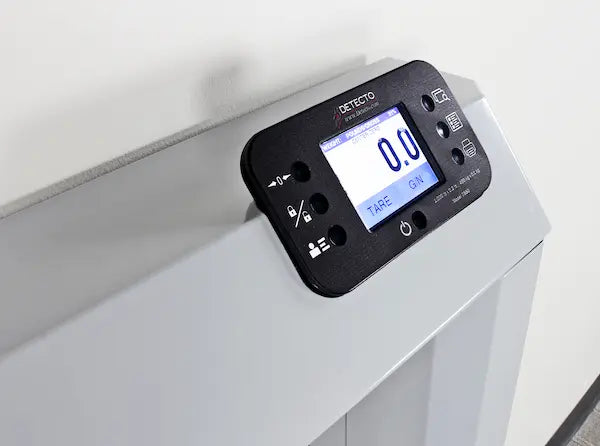

- Integrated Touchscreen LCD: Full-color display with wheelchair tare weight mode.

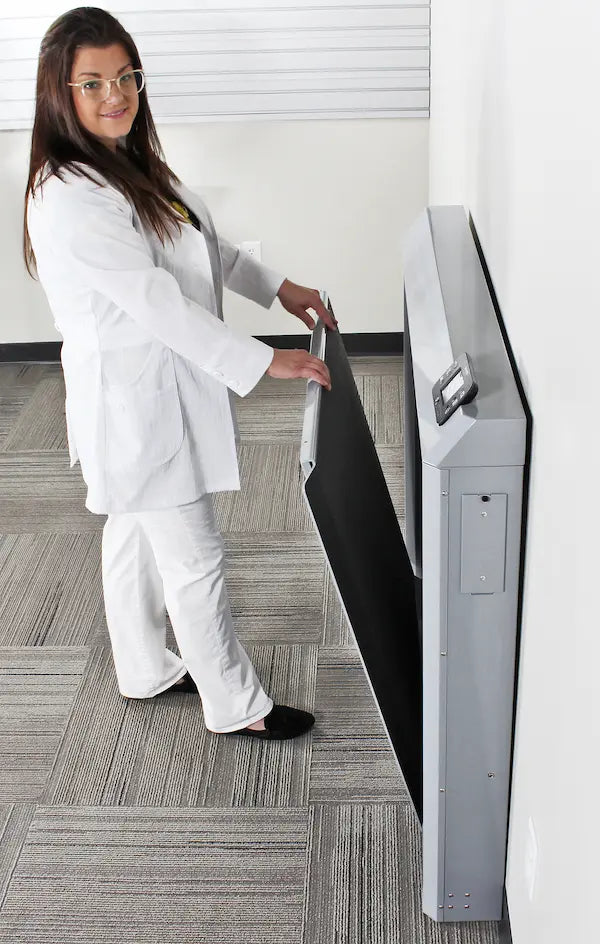

- Compact Design: Vertical fold-up platform for minimal footprint in hallways or rooms.
- Optional AC Adapter or Battery Operation: Flexible power options to suit facility needs.

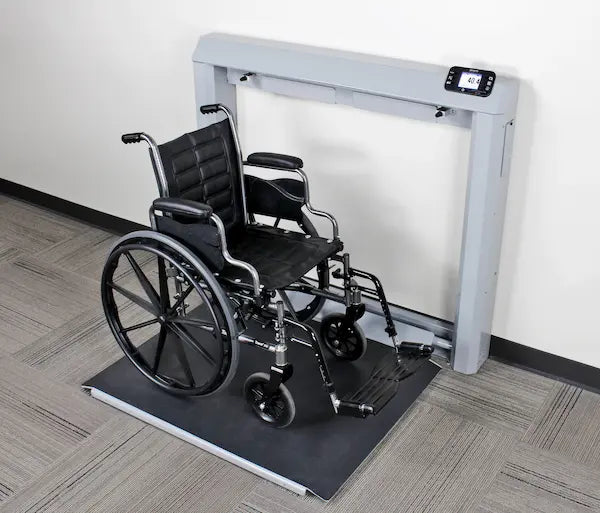

- Two-Way Ramps and Non-Skid Surfaces: Ensures safe access for wheelchair users.
Specifications:
| Feature | Specification |
|---|---|
| Capacity | 1,000 lb x 0.2 lb / 450 kg x 0.1 kg (7550 & 7550-AC); 300 kg x 0.1 kg (7550KGEU) |
| Platform Size (Flat Portion) | 36 in W x 32 in D x 1.5 in H / 91.4 cm W x 81.3 cm D x 3.8 cm H |
| Overall Width | 50.3 in / 127.6 cm |
| Overall Depth | 39.3 in / 99.7 cm (extended) |
| Overall Height | 44 in / 111.7 cm |
| Display | 3.2-in diagonal full-color TFT touchscreen |
| Resolution | 320 x 240 pixels |
| Display Digits | Weight: 5 digits (0.8 in / 20 mm); Height: 4 digits (0.35 in / 9 mm); BMI: 3 digits (0.35 in / 9 mm) |
| Keys | Mechanical switch: Power, Zero, Lock/Release, ID, Cycle Display, Menu, Print |
| Power | 6 C batteries (not included); Optional AC adapter (domestic/international models) |
| Operating Temp/Humidity | 14º to 104º F / -10º to 40º C; 0–90% non-condensing |
| Construction | Steel platform with gas spring lifting mechanism |
| Communication | Wi-Fi and Bluetooth 5.0 |
| Net Weight | 180–181 lb / 82–83 kg |
| Shipping Weight | 238–239 lb / 108–109 kg |
| Country of Origin | USA |
| UPC Codes | 7550: 809161190908; 7550-AC: 809161316803 |
Applications:
- Hospitals and clinics requiring space-saving wheelchair scales.
- Rehabilitation centers and long-term care facilities.
- Facilities needing wireless connectivity to EMR/EHR systems.
- Clinical environments where patient safety, compact design, and precise weighing are critical.
