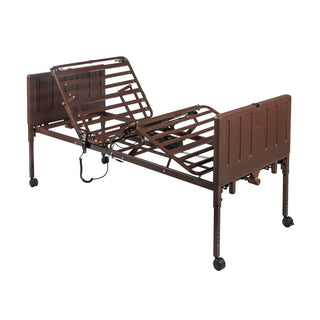

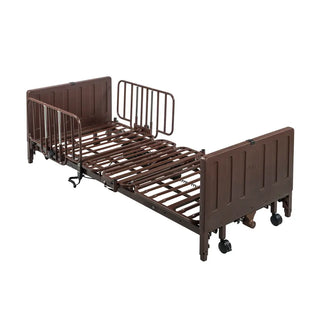

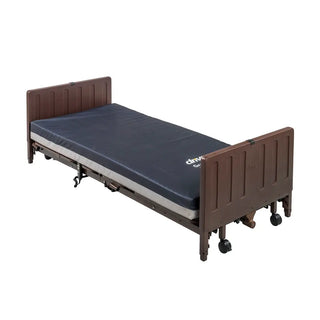

Drive Medical 15235N Delta Pro Homecare Bed System, Low Full Electric, 10" - 23" Bed Height Range, 36" W x 80" L Sleep Surface, 450 lbs Total Weight Capacity, 3" Casters, Universal Frame Versatility, Tool-Free Lightweight Assembly, Durable Steel Slat Deck
The Delta Pro Low Full Electric Bed System (15235N) introduces an innovative solution to homecare environments with its patent-pending universal frame. Designed to meet diverse patient care requirements, this highly adaptable platform can be configured into up to six unique bed setups using color-coded components. The dual full-electric motor provides effortless, powered adjustments for the head, foot, and overall bed height ranging from 10 inches to 23 inches.
Engineered for stability and long-term durability, the unit features a high-density polyethylene molded bed end design paired with a square tube steel frame slat deck. Setup is streamlined thanks to ultra-lightweight head and foot frames that require no tools or links to connect during assembly. Operational safety is reinforced through an easy-to-use glow-in-the-dark hand pendant with built-in LED indicators, a bed end safety lock, and integrated retractable rail receiver brackets.
Features
- Patent pending Universal Frame can configure with various component to create up to SIX unique bed configurations offering more homecare bed options without the need to store more beds!
- Assists with inventory constraints by offering 1 homecare bed system that can transform to suit multiple needs using color coded component options
- Product Safety & Performance Standards: Meets IEC 60601-2-52; 60601-1; 60601-1-2; 60601-1-11
- Safe working load capacity of 450 lbs
- Choose between semi-electric and full electric motor options to provide head, foot, and height adjustability of bed frame as needed

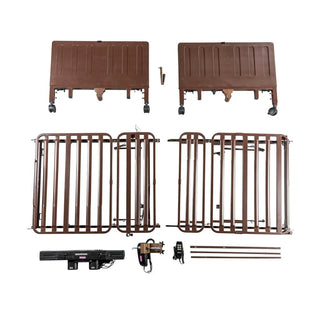

- Ultra lightweight head and foot frames easy to set up by 1 individual with no links to connect and no tools required
- Square tube steel frame slat deck provides durable strength, no-sag mattress support, and is easy to clean
- HD Polyethylene molded bed ends are attractive, labeled for proper assembly, and easy to clean and maintain
- Bed End safety lock slides over hanger pins to prevent disengaging from bed ends
- UL approved motor is self contained for reduced weight and noise and can be easily installed and removed with patient in bed
- Reduce service calls with large glow in the dark hand pendant that is easy-to-use for adjusting head and foot deck sections; built in battery backup and LED indicators for power and lockout included
- Power failure protection available on dual style motors via a 9-volt battery (not included) located in the hand pendant which can return the frame to a horizontal position. Manual cranks included for all styles
- Frame includes mounted retractable full rail receiver brackets to eliminate cross braces ensuring proper placement and reducing equipment loss
- Half (15561HRAIL) and full (15561FRAIL) rails are available, sold seperately, and meet FDA entrapment guidelines as well as ASTM standards
Product Specifications
| Specification | Details |
| Item Number | 15235N |
| Motor Type | Dual Full Electric w/ Hi-Lo |
| Safe Working Load Capacity | 450 lbs |
| Exterior Dimensions (Sleep Surface) | 36" W x 80" L |
| Height Range | 10" - 23" |
| Carton Shipping Weight | 171 lbs |
| Frame Construction | Square Tube Steel Slat Deck |
| Bed Ends Material | Molded High-Density Polyethylene |
| Casters | 3" Casters (2 Locking, 2 Unlocking) |
| Color Finish | Brown |
| Product Safety Standards | IEC 60601-2-52; 60601-1; 60601-1-2; 60601-1-11 |
| Electrical Approvals | UL Approved Motor |
| Rail Guidelines Compatibility | Meets FDA Entrapment Guidelines & ASTM Standards |
| Frame / Welds Warranty | Limited Lifetime |
| Motor & Hand Control Warranty | 5 Years |
| Parts & Components Warranty | 1 Year |
