Hoshizaki AM-50BAK-AD 14.875″ Top Hat Cuber Undercounter Ice Machine, Stainless Steel, Air-Cooled, ADA-Compliant Height, 54 lbs per Day, R290 Refrigerant, Front in and out Airflow

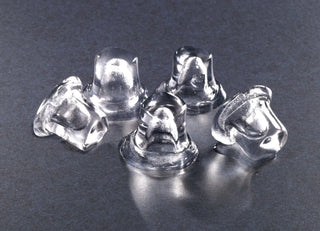

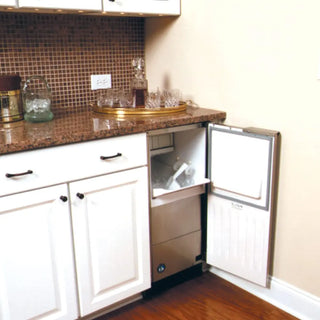

This compact undercounter Top Hat ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAK-AD is capable of producing approximately 54 lbs. of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 27 lbs.* of ice at a time. The undercounter design is less than 32″ tall, making it ADA compliant. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.
PFAS Warning: This product contains: PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl) oxy]-, polymer with 1,1,2,2-tetrafluoroethene.
Features
- Full length stainless steel door handle
- UL approved for outdoor use
- Undercounter design
- Drain pump option available
- Environmentally friendly R290 hydrocarbon refrigerant
- Up to 54 lbs. of ice production per 24 hours
- Fewer moving parts for longer life
- Power switch accessible without panel removal
- Less than 32 inches tall; ADA Compliant
- Up to 27 lbs. of built-in storage capacity
- Easily disassembled water circuit for easy cleaning
- Front in and out airflow
- Equipped with 6 ft. Cord with NEMA 5-15 Plug
Product Specifications
| Specification | Details |
| Model | AM-50BAK-AD |
| Equipment Type | Undercounter Self-Contained Ice Machine with Bin |
| Ice Type / Style | Top Hat / Gourmet Clear Cube |
| Daily Ice Production (70°F Air / 50°F Water) | Up to 54 lbs / 24 hours |
| Bin Storage Capacity | Up to 27 lbs |
| Cooling / Condenser Type | Air-Cooled (Front-in, Front-out Airflow) |
| Exterior Dimensions (W x D x H) | 14-7/8" W x 22-5/8" D x 31-1/2" H |
| Operating Ambient Temp Range | 45°F to 100°F (7.2°C to 37.8°C) |
| Operating Water Temp Range | 45°F to 95°F (7.2°C to 35°C) |
| Operating Water Pressure | 10 to 113 psig |
| Electrical Requirements | 115V / 60 Hz / 1-Phase |
| Amperage / Max Fuse Size | 2.0 A / 15 A |
| Refrigerant | R290 (Environmentally Friendly Natural Refrigerant) |
| Estimated Shipping Weight | 112 lbs |
| Cabinet Finish | Stainless Steel Exterior |
| Certifications & Compliance | ADA Compliant, UL Listed (Indoor/Outdoor), NSF Certified |
| Warranty | 2 Years Parts & Labor (Entire Machine) |
