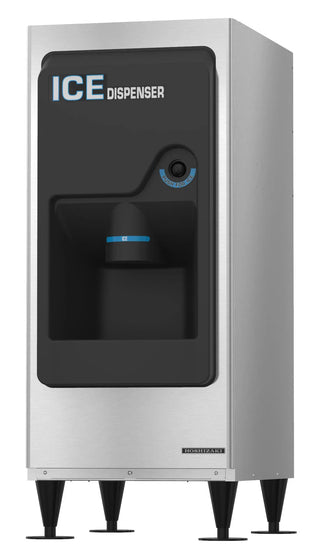

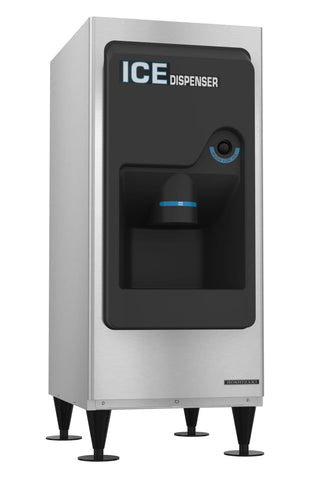

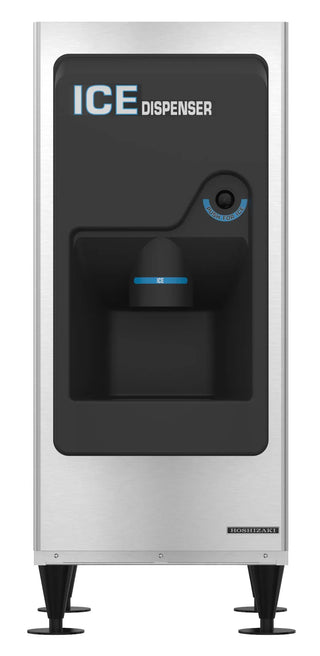

Hoshizaki DB-130H 22″ Ice Dispenser w/ 130 lbs Capacity, Stainless Steel Exterior
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Hoshizaki DB-130H 22″ Ice Dispenser w/ 130 lbs Capacity, Stainless Steel Exterior, ADA Compliant, Standard with 6″ Painted Flange Legs, Ideal for Hotels, Motels, Healthcare Facilities, Medical Clinics, Breakrooms and Commercial Waiting Areas
Safely store and dispense up to 130 lbs of ice with this Ice Dispenser. The DB-130H is the perfect 22″ wide ice storage bin and dispenser for many resorts, hotels, and other hospitality services! It boasts a seamless bin linear and Foamed-in-place polyurethane insulation in all of the bin walls including the bottom of the unit providing your operation with maximum ice preservation. The DB-130H features a durable and easy to maintain Stainless Steel exterior cabinet. This model comes Standard with 6″ Painted Flange Legs and the Ice dispensing area is ADA compliant. Single phase, 115v/60/1, Hardwired connection (no cord/plug included), 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain. The unit is UL Listed, ETL Sanitation Listed, ADA Compliant, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire machine. Compatible icemakers/dispensers, sold separately: KM-340M, KM-515M, KM-600M, KM-650M.
Features
- Ice dispensing area is ADA compliant
- Push-button single auger agitator
- Built-in 130 lbs. capacity* insulated polyethylene-lined ice storage bin
- Push-button single auger agitator dispenses ice at 20 lbs. per minute

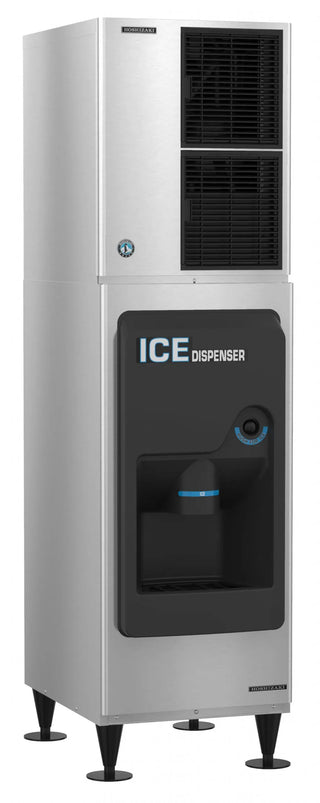

- Accommodates KM-350, KM-520, KM-660, or KMD-410 series cubers for 414 to 669 lbs. of ice per day (ice machines sold separately)
Product Specifications
| Specification | Details |
| Model | DB-130H |
| Exterior Dimensions (W x D x H) | 22" W x 30" D x 53" H (includes 6" legs) |
| Ice Storage Capacity | 130 lbs (3.7 cu. ft.) |
| Dispensing Rate | 20 lbs per minute |
| Dispensing Mechanism | Push-button single auger agitator |
| Agitator & Auger Material | Stainless Steel |
| Exterior Cabinet Material | Stainless Steel |
| Insulation Type | Foamed-in-place Polyurethane |
| Antimicrobial Protection | H-GUARD Plus® Antimicrobial Agent |
| Temperature Range (Storage) | Ice Storage Temp (~32°F / 0°C maintaining cold insulation) |
| Electrical Requirements | 115V / 60Hz / 1-Phase |
| Amperage / Power | 1.4 Amps (60 W dispensing gear motor) |
| Electrical Connection | Hardwired (no cord/plug included) |
| Drain Connection | 3/4" FPT Drain |
| Certifications & Compliance | UL Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified |
| Shipping Weight | 195 lbs |
| Warranty | 3 Years Parts & Labor (Entire Machine) |
