Hoshizaki R1A-FS Steelheart Series 27.5″ Stainless Steel Upright Refrigerator, 23.1 cu. ft., -0.5°C – 11.1°C, One Swing Solid Lockable Door, Off Cycle Defrost, 3 Epoxy Coated Wire Shelves
The R1A-FS Steelheart Series Upright single section refrigerator with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R1A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.25 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor.
Features
- Energy efficient interior LED light
- Environmentally friendly R290 hydrocarbon refrigerant
- Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
- Cabinet and doors are insulated with 2-3/8” of CFC free, foamed in place polyurethane
- Stainless steel exterior and interior door come standard with locks
- Exclusive stepped door design to protect recessed door gasket
- Spring assisted self-closing doors with stay open feature
- Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
- Extruded aluminum flush mount door handle
- Field reversible doors
- Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
- Energy efficient automatic hot gas condensate evaporator
- Top mount refrigeration comes standard with a condenser filter
- Refrigerant flow is controlled with thermostatic expansion valve
- Stainless steel shelf supports

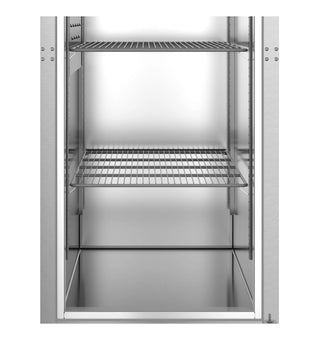

- (3) epoxy coated wire shelves are standard
- Standard with 4” casters (two with brakes)
- Stackable (two units high) to conserve warehouse floor space
- 10 ft. cord and plug
- Left hinged options
Product Specifications
| Dimensions / Capacity | One Section R1A-FS(L) |
| Interior Storage Capacity (CF) (AHAM) | 23.10 ft³ |
| Overall Width x Depth | 27.5" x 33.5" |
| Height (including 4" casters) | 79.5" |
| Door Opening Width x Height | 21.75" x 59.25" |
| Depth with Door Open at 90° | 59.25" |
| Adjustable Shelves | 3 |
| Shelf Dimensions (W x D) | 21.25" x 26" |
| Crated Shipping Weight | 345 lbs |
| Crated Length x Depth x Height | 37.5" x 31.5" x 81" |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Voltage Range | 104-126 |
| Ambient Temp. Range | 45° to 100°F |
| Control Setpoint Range | 31° to 52°F |
| Amperage | 5 |
| Energy Consumption (kWh/day) @ASHRAE | 1.25 |
| Heat Rejection (BTU/Hr.) @NSF | 317 |
| Approx. Nominal Compres. BTU/HR (HP) | 770(1/4HP) |
| Refrigerant / Charge Amount (oz) | R290 / (4.6 oz) |
