Hoshizaki R1A-HS Steelheart Series Upright Single Section Refrigerator with Stainless Half Doors, Lockable, 23.1 cu.ft., -0.5°C to 11.1°C Temperature Range, Field Reversible, Spring Assisted Self Closing Door with Stay Open Feature, 3 Adjustable Epoxy Coated Wire Shelves, R290 Refrigerant
The R1A-HS Steelheart Series Upright single section refrigerator with a half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R1A-HS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.25 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor).
Features
- Maximum interior storage capacity with smallest external footprint
- Stainless steel interior with stainless steel exterior front, sides and top

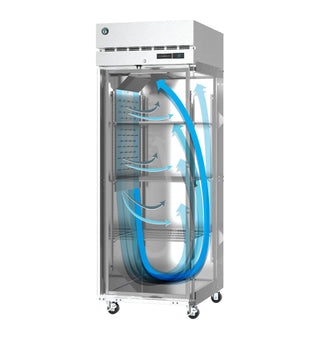

- Unique ducted air distribution system
- Energy efficient interior LED light
- Environmentally friendly R290 hydrocarbon refrigerant
- Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
- Cabinet and doors are insulated with 2-3/8” of CFC free, foamed in place polyurethane
- Stainless steel exterior and interior door come standard with locks
- Exclusive stepped door design to protect recessed door gasket
- Spring assisted self-closing doors with stay open feature
- Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
- Extruded aluminum flush mount door handle
- Field reversible doors
- Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
- Energy efficient automatic hot gas condensate evaporator
- Top mount refrigeration comes standard with a condenser filter
- Refrigerant flow is controlled with thermostatic expansion valve
- Stainless steel shelf supports
- (3) epoxy coated wire shelves are standard
- Standard with 4” casters (two with brakes)
- Stackable (two units high) to conserve warehouse floor space
- 10 ft. cord and plug
Product Specifications
| Model Number | R1A-HS |
| Door Configuration | Solid Half Stainless Steel Doors (Lockable, Field Reversible) |
| Exterior Dimensions (W x D x H) | 27.5" x 33.5" x 79.5" (with 4" casters) |
| Net Storage Capacity | 23.1 cu. ft. (AHAM) |
| Crated Shipping Dimensions | 36.0" x 31.5" x 81.0" |
| Crated Shipping Weight | 350 lbs |
| Control Setpoint Range | 31°F to 52°F (-0.5°C to 11.1°C) |
| Ambient Operating Temp Range | 45°F to 100°F (7.2°C to 37.8°C) |
| Refrigerant Type / Charge | R290 Hydrocarbon / 4.6 oz |
| Compressor Horsepower / BTU | 1/4 HP / 770 BTU/hr |
| Electrical Voltage / Phase | 115V / 60Hz / 1 Ph |
| Amperage / Plug Type | 5.0 A / NEMA 5-15P (10 ft cord) |
| Insulation | 2-3/8" CFC-Free Foamed-in-Place Polyurethane |
| Internal Shelves | 3 Adjustable Heavy-Duty Epoxy Coated Wire Shelves |
| Evaporator Coil Protection | Epoxy Electrocoated (E-Coat) Corrosion Protection |
| Certifications & Listings | cETLus Safety, ETL Sanitation (NSF/ANSI 7) |
