Hoyer HOY-ELEVATEWSC-S Joerns Healthcare Hoyer Elevate Stand Aid with Digital Scale, Powered Leg Adjustment, and 440 lb Safe Working Load

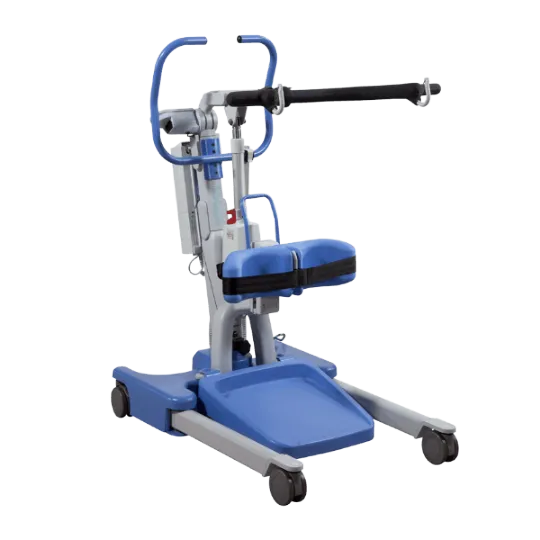

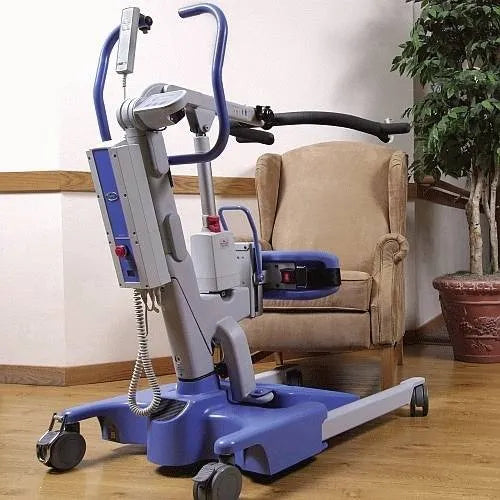

The Hoyer Elevate with Digital Scale is a high-performance heavy-duty stand aid designed to improve the lifting experience for both caregivers and patients. It is both sturdy and compact, making it ideal for patient monitoring, rehabilitation, and active lifting in hospitals, nursing homes, and long-term care environments.
This model includes the optional Class III digital scale, which allows the caregiver to precisely weigh a patient during the transfer process, saving valuable time and avoiding unnecessary patient disruption. The intuitive controls make weight monitoring simple and efficient.
The Elevate supports a maximum safe working load of 440 lbs (200 kg) and features a removable foot rest that transforms the lift into a valuable restorative care aid, allowing the patient to fully stand and walk under close supervision. This makes the Elevate an excellent choice for rehabilitation and mobility training programs. Powered leg adjustment allows the caregiver to open and close the legs without bending, twisting, or applying force, significantly reducing physical strain. The contoured, height-adjustable knee pad offers high-level comfort and accommodates a range of patient sizes.
The Hoyer Smart Monitor features lift cycle counter, overload protection, service reminder, and emergency functions. This stand aid is perfect for floor transfers, standing assistance, walking rehabilitation, weight monitoring, and toileting support.
Features:
- Heavy-duty stand aid with integrated digital scale
- 440 lb safe working load capacity
- Class III digital scale for patient weight monitoring during transfer
- Electric powered base adjustment
- Powered leg opening and closing system
- Height-adjustable contoured knee pad
- Removable foot rest for rehabilitation and walking support
- Hoyer Smart Monitor with lift cycle counter
- Overload protection and service reminder system
- Ideal for hospitals, rehab centers, nursing homes, and long-term care
Specifications :
| Specification | Details |
|---|---|
| Product Type | Sit-to-Stand Patient Lift with Scale |
| Model | HOY-ELEVATEWSC-S |
| Safe Working Load | 440 lbs / 200 kg |
| Maximum Overall Length | 43.3" (1100 mm) |
| Minimum Overall Length | 41.0" (1040 mm) |
| Maximum Overall Height | 65.5" (1665 mm) |
| Minimum Overall Height | 48.4" (1230 mm) |
| Maximum Height to Attachment Point | 64.7" (1644 mm) |
| Minimum Height to Attachment Point | 39.2" (995 mm) |
| Legs Open - External Width | 39.1" (995 mm) |
| Legs Open - Internal Width | 34.3" (870 mm) |
| Legs Closed - External Width | 24.8" (630 mm) |
| Legs Closed - Internal Width | 20.0" (510 mm) |
| Turning Radius | 48.2" (1225 mm) |
| Total Weight | Approx. 138 lbs (62.6 kg) |
| Mast, Base and Boom Assembly | 127.3 lbs (59 kg) |
| Power Pack Weight | 6.6 lbs (3 kg) |
| Base Assembly | 40.7 lbs (18.5 kg) |
| Mast & Boom Assembly (No Battery) | 66 lbs (30 kg) |
| Base Type | Electric Powered Base |
| Scale | Class III Digital Scale (Included) |
| Foot Rest | Removable |
| Knee Pad | Height Adjustable |
| Smart Monitor | Included |
| Battery | Included |
| UPC | 00810055880096 |
