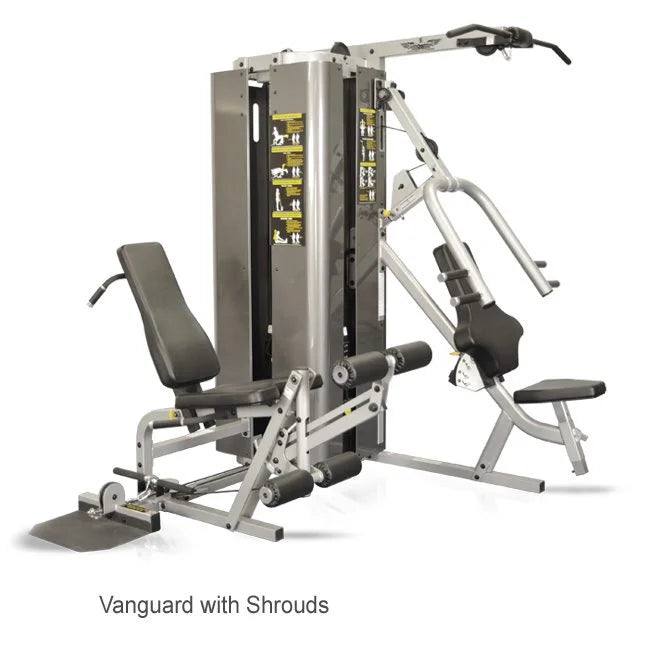

Inflight Fitness 3070S Two-Stack Vanguard, Three Exercise Positions, Two Independent Weight Stacks, Reversible Assembly, Pillow-Block Press Bearings, Upgradeable Resistance

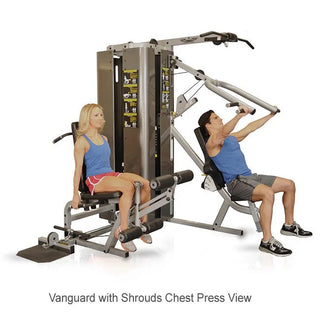

The Inflight Fitness Vanguard Multi-Station Gym combines three exercise positions around two independent selectorized stacks to cover pressing, pulling, leg extension, leg curl, and low-pulley training within one coordinated system. Two users can work simultaneously at compatible stations while the third exercise position remains available as the workout changes. Left- or right-hand assembly gives facility planners more flexibility when fitting the machine into apartment gyms, hotels, school wellness rooms, studios, corporate fitness areas, and other light-commercial spaces.
The multi-station weight machine can be assembled in left- or right-hand configurations, helping buyers work around walls, walkways, and neighboring equipment. One-inch pillow-block bearings on the press arm, quarter-inch cables, and large pulleys support smooth guided movement through repeated sessions. Standard stacks can also be increased in 50 lb increments when a facility needs more resistance, letting buyers scale the base system without replacing the frame.

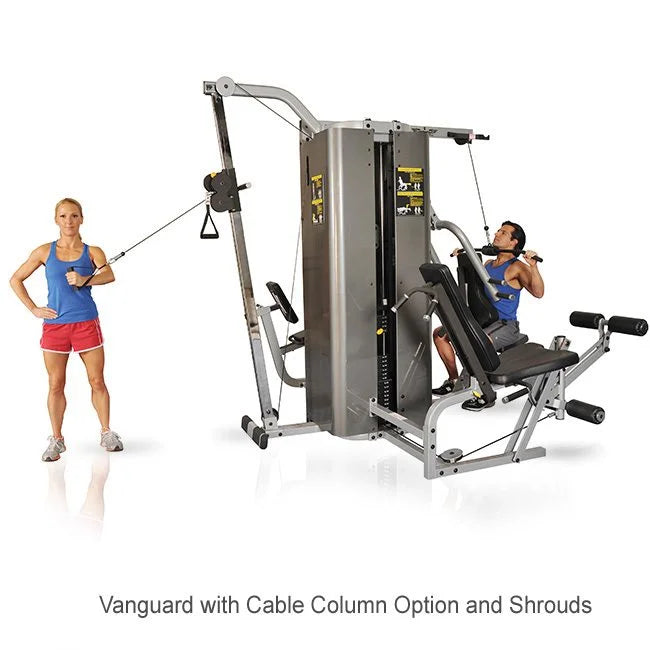

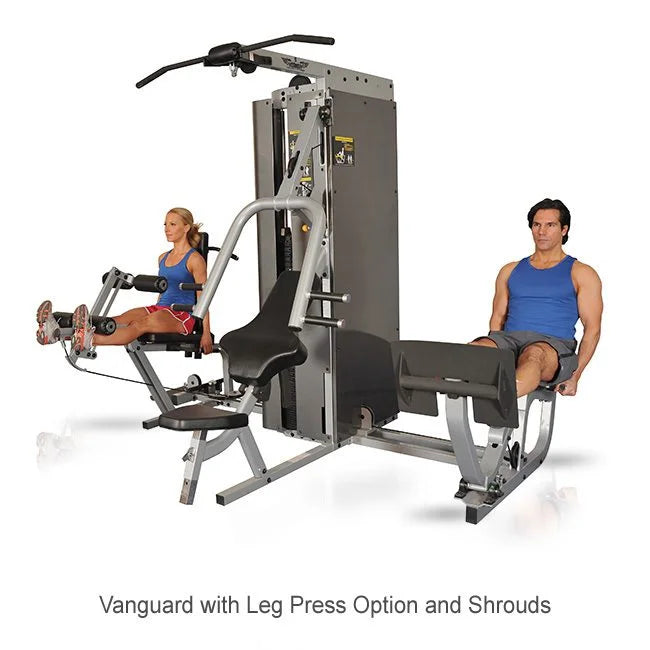

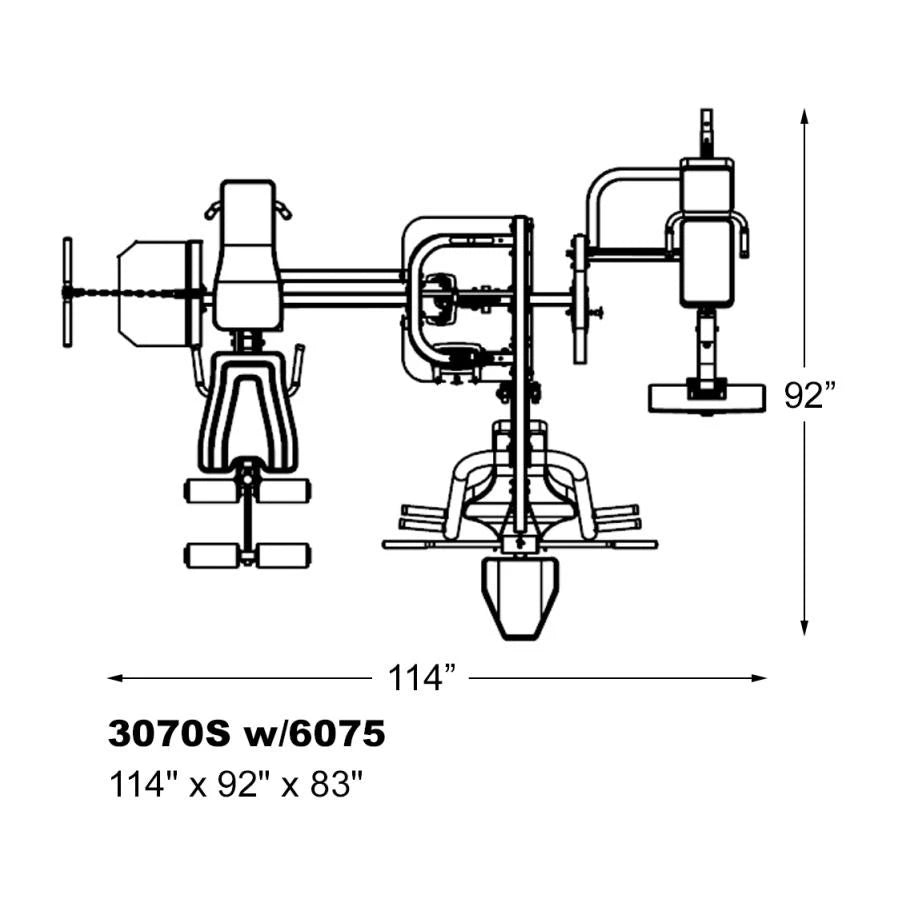

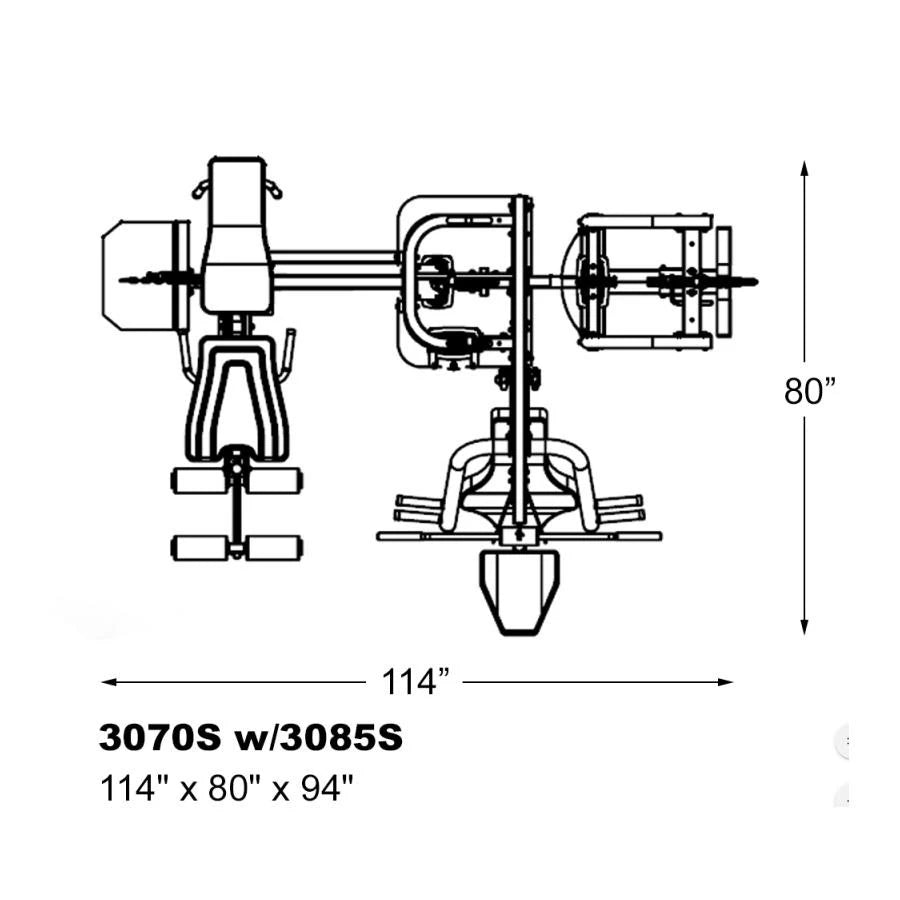

Buyers can expand the commercial cable machine platform with leg-press or cable-column options as programming needs change. Inflight has offered shared-stack and additional-stack expansion paths, allowing facilities to emphasize lower-body pressing, adjustable functional cable work, or larger cable-cross configurations. That modular approach makes the Vanguard attractive for facilities that want to begin with a relatively compact multi-gym while preserving a path to more resistance or exercise variety later.
Features

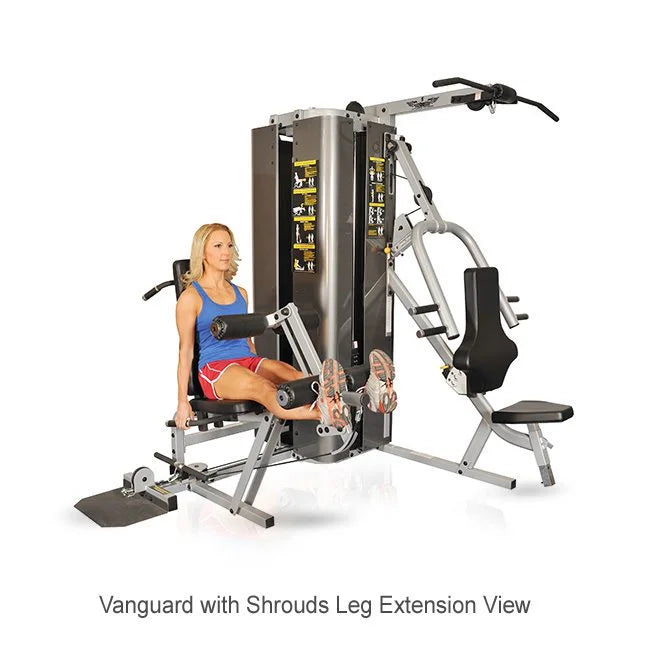

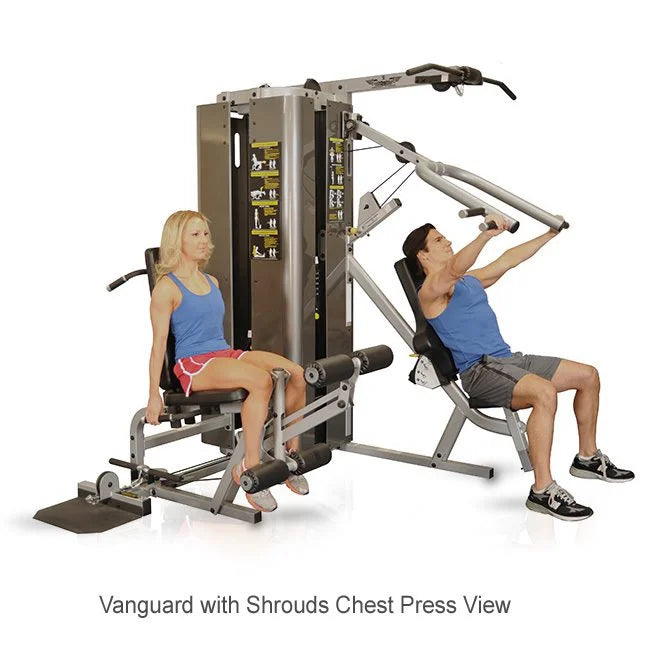

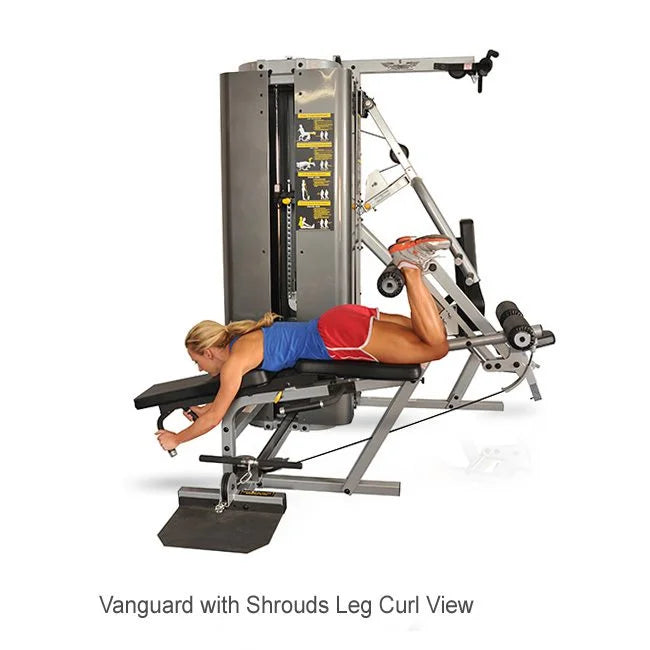

- Three Exercise Positions: Covers pressing, pulling, and lower-body isolation movements.
- Two Independent Weight Stacks: Allows two compatible stations to operate with separate resistance choices.
- Reversible Assembly: Supports left- or right-hand layouts to better match room geometry.
- Upgradeable Resistance: Standard stacks can be increased in 50 lb increments up to the configured maximum.
- Commercial Cable Components: Uses quarter-inch cable with high load rating and large pulleys.
- Pillow-Block Press Bearings: Support smooth pressing-arm movement.
- Expandable Platform: Supports additional Vanguard leg-press and cable-column
Specifications
| SKU | 3070S |
| Product Type | Two-Stack Multi-Station Gym |
| Frame Construction | 11- and 12-Gauge Steel |
| Frame Finish | Powder Coat |
| Frame Color | Silver |
| Upholstery Color | Black |
| Standard Weight Stacks | Two 200 lb Stacks |
| Weight Stack Upgrades | Up to 300 lbs Each in 50 lb Increments |
| Cable Size and Rating | 1/4"; 4,000 lbs |
| Press Arm Bearings | 1" Pillow Block |
| Pulley Sizes | 4.5" and 6" |
| Configuration | Left- or Right-Hand Assembly |

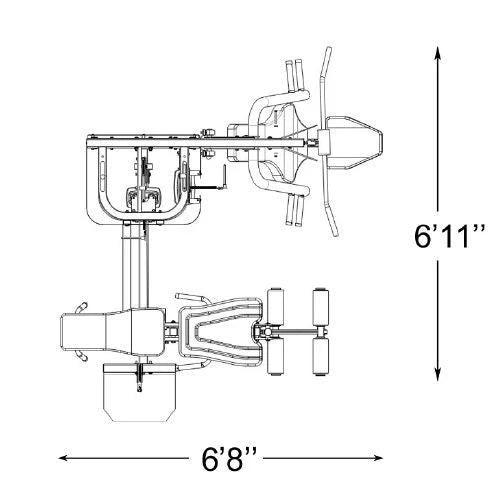

| Dimensions (L x W x H) | 80" L x 83" W x 85" H |
| Product Weight | 967 lbs |
| Assembly | Required |
| Use | Home or Light Commercial |
